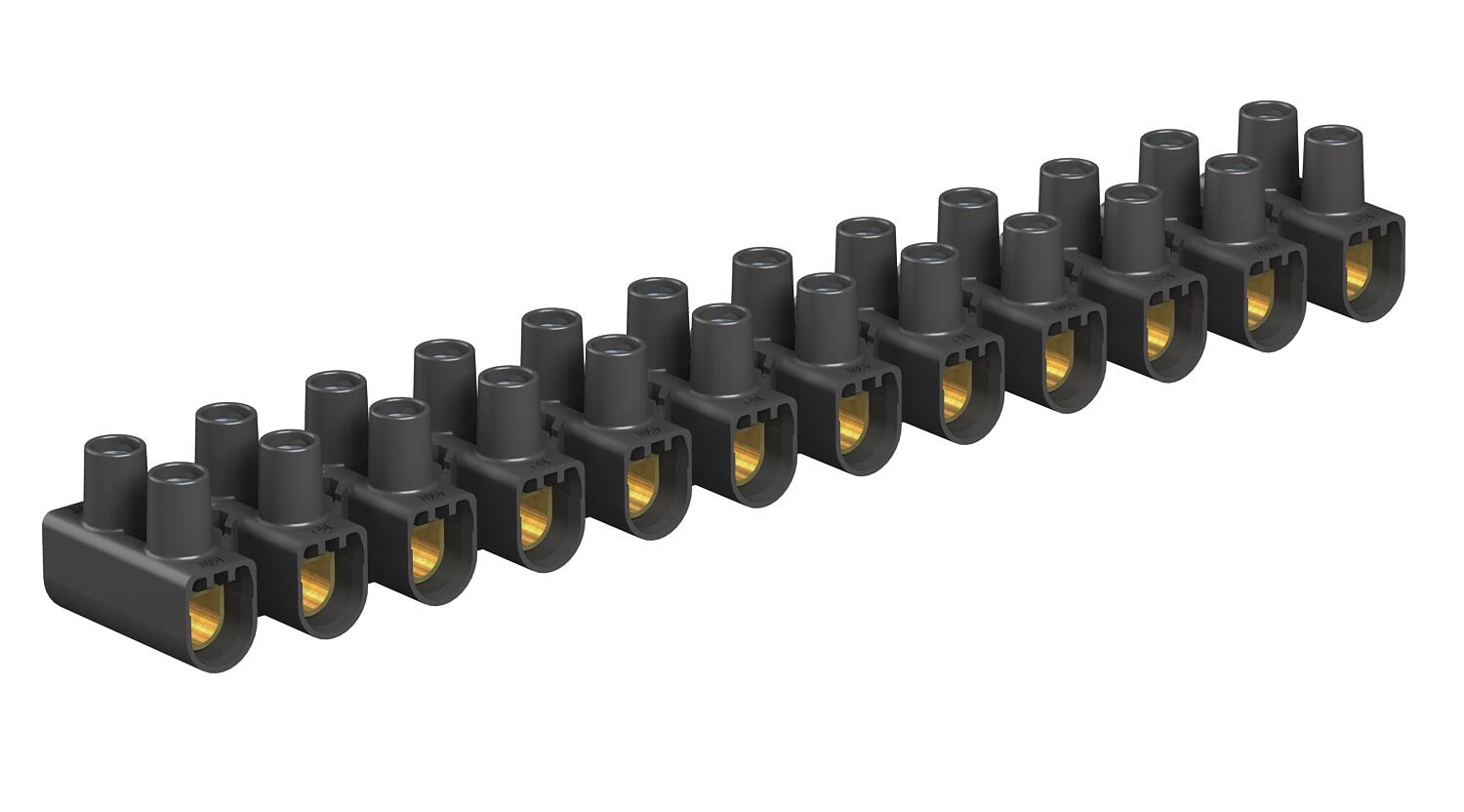

16 mm² series connectors, polypropylene
Item no. 2056569 | EAN 4012195879435
- Product description
-
Product descriptionTested to EN 60998.
Steel terminals, steel screws, electrogalvanised, 12-pole, individual terminals detachable from strips using "twist'n'pull".
Captive upwards screw.
Max. approved ambient temperature to EN 60998: –5 to +80 °C.
Nominal cross-section 16 ÷ mm².
Nominal voltage 450 V.
Nominal current 76 A.
Max. attachment each side: 16 mm² single-wire or 10 mm² multi-wire or 6 mm² flexible.
-

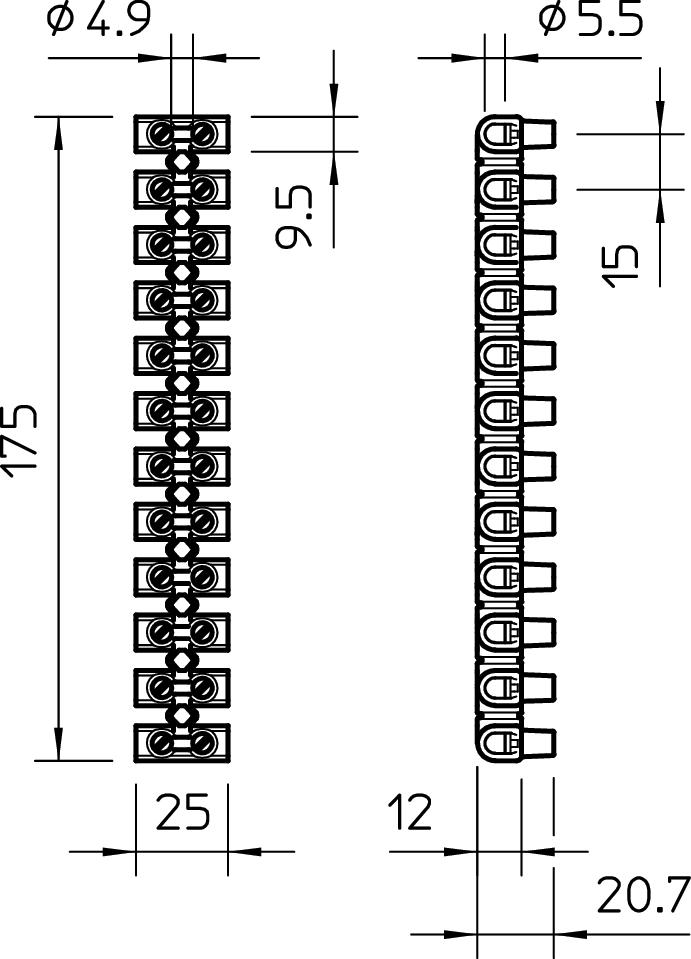

- Technical data
-
Technical data
Ambient temperature 80 °C Closing plate required no Colour Black Connectable conductor cross-section, fine-wire with wire-end ferrule, max. 16 mm² Connectable conductor cross-section, fine-wire with wire-end ferrule, min. 4 mm² Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 6 mm² Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 4 mm² Connectable conductor cross-section, multi-wire, max. 10 mm² Connectable conductor cross-section, multi-wire, min. 4 mm² Connection position Side Cross-section Max. attachment each side: 16 mm² single-wire or 10 mm² multi-wire or 6 mm² flexible mm² Dimension 16,0mm² Drill hole spacing, centre 15 mm Explosion-tested version no Height 20,7 mm Length 175 mm Material Polypropylene No. of terminals 12 Nominal cross-section, min. 16 mm² Nominal current 76 A Nominal voltage 450 V Number of screwless terminals per pole 2 Permitted temperature range, max. 80 °C Permitted temperature range, min. -5 °C Pole number 12 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors yes Transparent no Version of electrical connection 1 Screw connection Version of electrical connection 2 Screw connection Width 25 mm - All types
- Downloads
-
Data sheet 78 CE SW/EKL 3 S / 2056569 , 0.33MB , pdfEU declaration of conformity 78 CE SW/EKL 3 S / 2056569 , 0.05MB , pdfREACH Declaration of conformity 78 CE SW/EKL 3 S / 2056569 , 0.12MB , pdfRoHS Declaration of conformity 78 CE SW/EKL 3 S / 2056569 , 0.12MB , pdf
