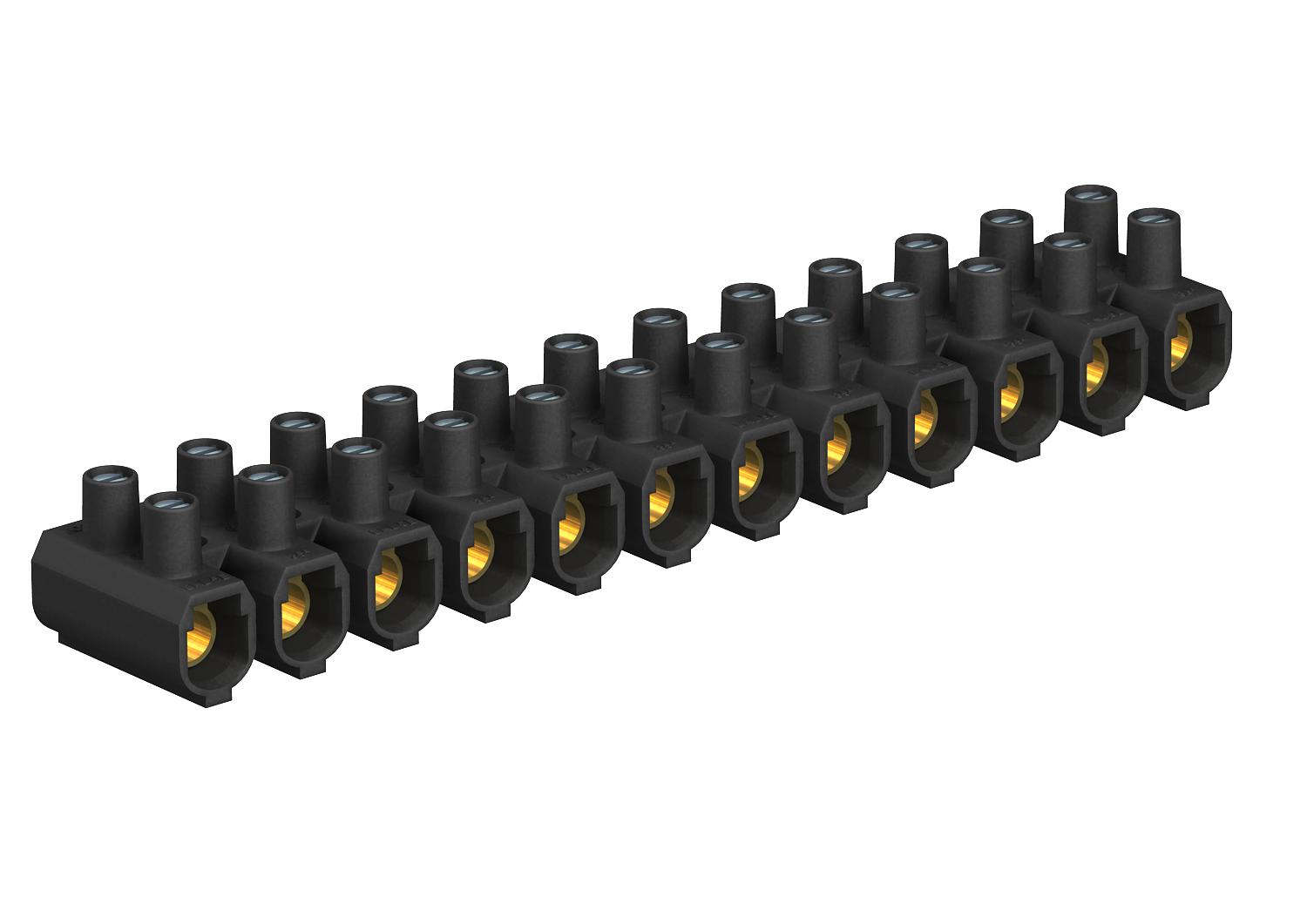

35 mm² series connectors, polypropylene
Item no. 2056593 | EAN 4012195300106
- Product description
-
Product descriptionTested to EN 60998.
Brass terminals, steel screws, electrogalvanised, 12-pole, individual terminals detachable from strips.
Captive upwards screw.
Max. approved ambient temperature to EN 60998: –5 to +80 °C.
Nominal cross-section 35 ÷ mm².
Nominal voltage 750 V.
Nominal current 125 A.
Max. attachment each side: 35 mm² multi-wire or 25 mm² fine-wire.
-
- Technical data
-
Technical data

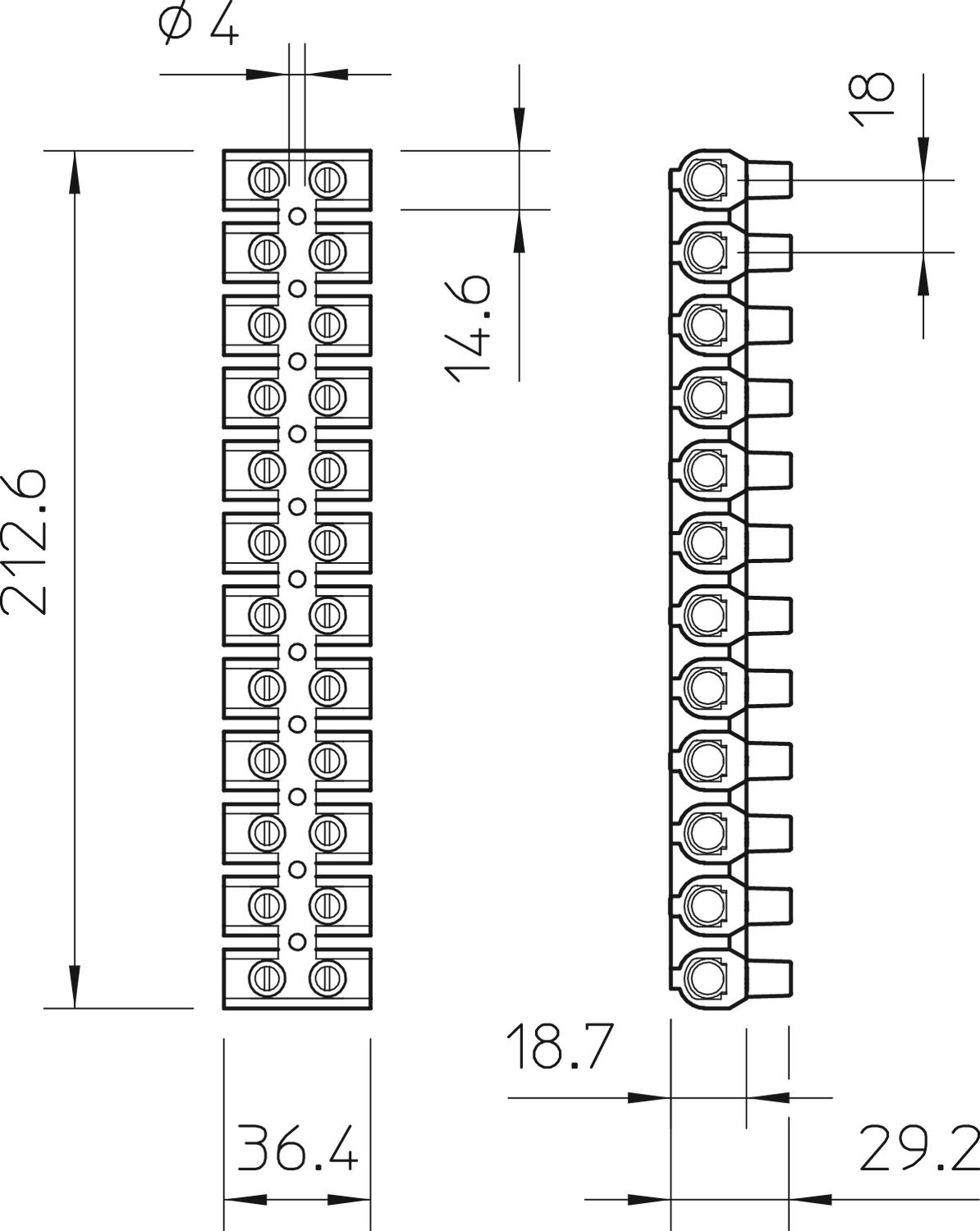

Ambient temperature 80 °C Closing plate required no Colour Black Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 25 mm² Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 25 mm² Connectable conductor cross-section, multi-wire, max. 35 mm² Connectable conductor cross-section, multi-wire, min. 35 mm² Connection position Side Cross-section Max. attachment each side: 35 mm² multi-wire or 25 mm² fine-wire mm² Dimension 35,0mm² Drill hole spacing, centre 18 mm Explosion-tested version no Height 29,2 mm Length 212,6 mm Material Polypropylene No. of terminals 12 Nominal cross-section, min. 35 mm² Nominal current 125 A Nominal voltage 750 V Number of screwless terminals per pole 2 Permitted temperature range, max. 80 °C Permitted temperature range, min. -5 °C Pole number 12 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors yes Transparent no Version of electrical connection 1 Screw connection Version of electrical connection 2 Screw connection Width 36,4 mm - All types
- Downloads
-
Data sheet 80 CE SW/EKL 5E / 2056593 , 0.27MB , pdfEU declaration of conformity 80 CE SW/EKL 5E / 2056593 , 0.05MB , pdfREACH Declaration of conformity 80 CE SW/EKL 5E / 2056593 , 0.12MB , pdfRoHS Declaration of conformity 80 CE SW/EKL 5E / 2056593 , 0.12MB , pdf
