Note: This article is discontinued.

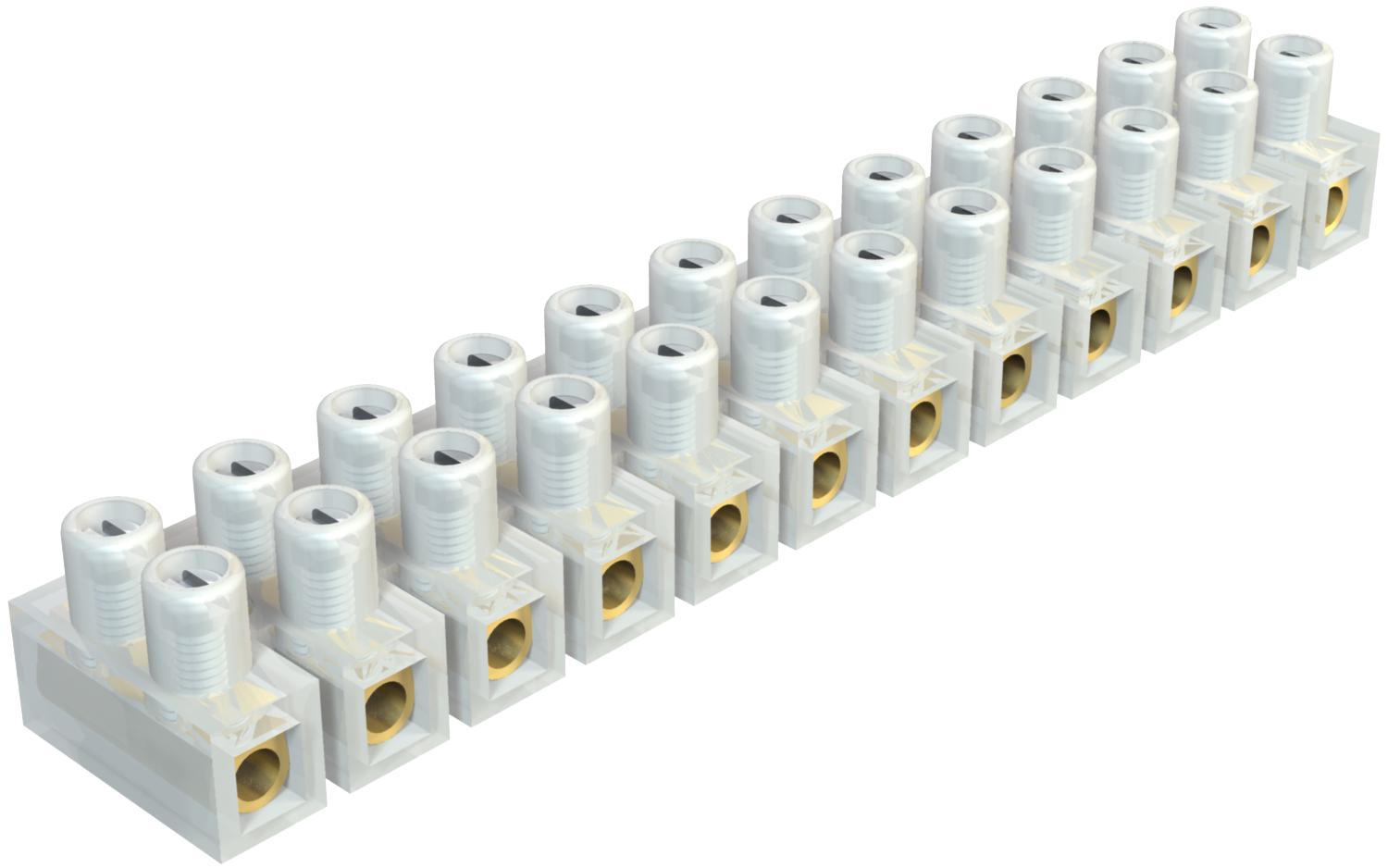

4 mm² series connector, polyamide

Item no. 2055929 | EAN 4012195432258

2055929 / 72 VDE/EKL 0E PA
12
4 mm²
4 mm²
450 V
Transparent
Product description

Product description

Brass terminals, steel screws, galvanised and blue passivated, 12-pin, individual terminals detachable.

Captive upwards screw.

Nominal cross-section 4 mm².

Rated voltage 450 V.

Nominal current 32 A.

Max. attachment each side: 4 mm² single-wire or 2.5 mm² multi-wire.

Maximum approved ambient temperature to EN 60998: –5 to +85°C.
  • Österreichischer Verband für Elektrotechnik, Austria
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 850 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nominal cross-section 4 mm²
Technical data

Technical data

Ambient temperature 85 °C
Closing plate required no
Colour Transparent
Connectable conductor cross-section, fine-wire with wire-end ferrule, max. 2,5 mm²
Connectable conductor cross-section, fine-wire with wire-end ferrule, min. 2,5 mm²
Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 2,5 mm²
Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 1 mm²
Connectable conductor cross-section, multi-wire, max. 2,5 mm²
Connectable conductor cross-section, multi-wire, min. 1 mm²
Connectable conductor cross-section, single-wire, max. 4 mm²
Connectable conductor cross-section, single-wire, min. 1 mm²
Connection position Side
Cross-section Max. attachment each side: 4 mm² single-wire or 2.5 mm² multi-wire mm²
Dimension 4,0mm²

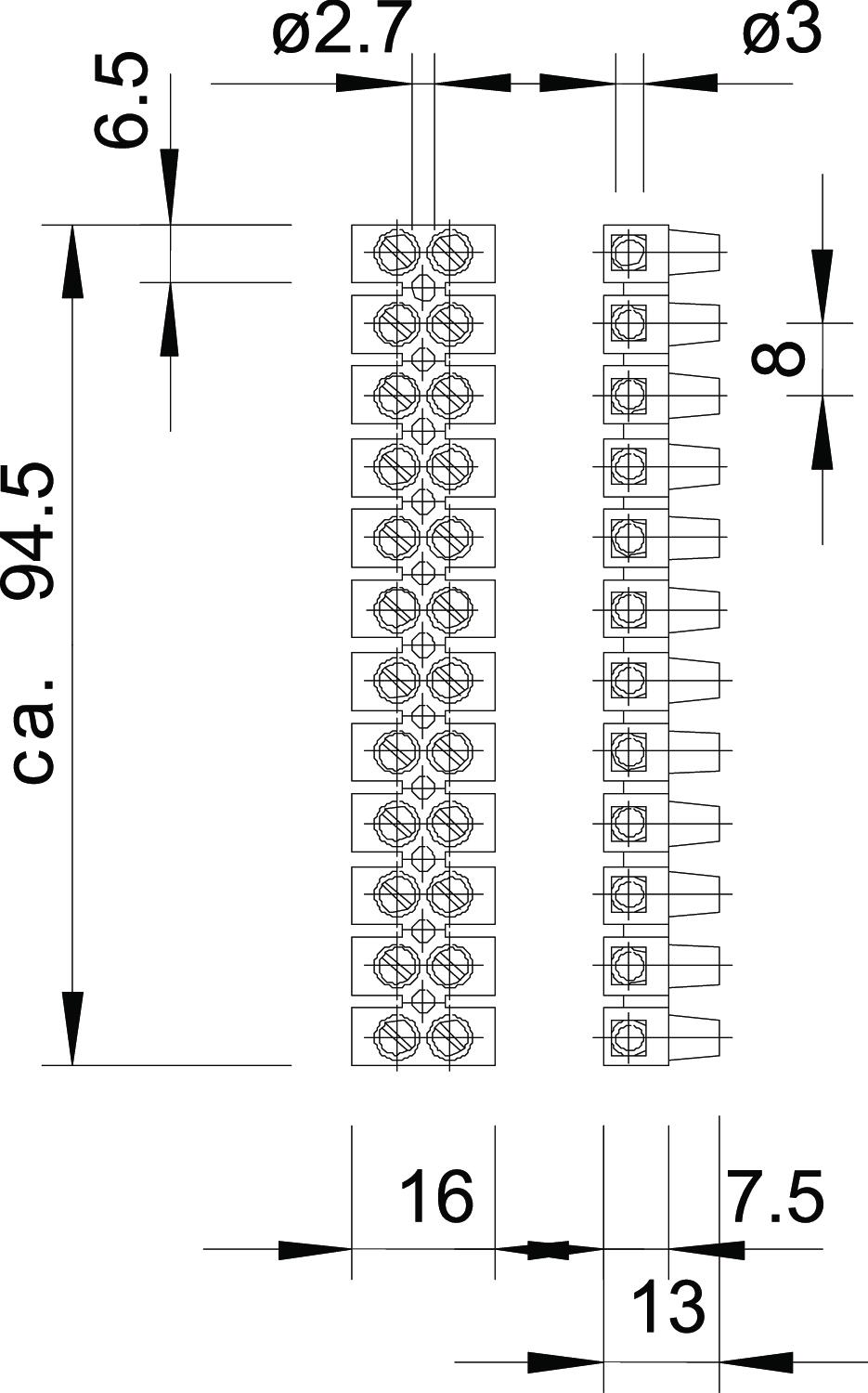

Drill hole spacing, centre 8 mm
Explosion-tested version no
Height 13 mm
Insulation material Thermoplast
Length 94,5 mm
Material Polyamide
No. of terminals 12
Nominal cross-section, max. 4 mm²
Nominal cross-section, min. 4 mm²
Nominal current 32 A
Nominal voltage 450 V
Number of screwless terminals per pole 2
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -5 °C
Pole number 12
Suitable for flexible conductors yes
Suitable for multi-wire conductors yes
Suitable for solid conductors yes
Transparent yes
Version of electrical connection 1 Screw connection
Version of electrical connection 2 Screw connection
Width 16 mm
All types

All types

Types No. of terminals Nominal cross-section, min. Nominal cross-section, max. Nominal voltage Colour Item no. Quantity SSU
72 VDE/EKL 0E PA 12 4 mm² 4 mm² 450 V Transparent 2055929
10 piece
