- Product description
-
Product description
45° angle connector, horizontal, for wide span cable trays and ladders with a side height of 160 mm.
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 160x500 Maintain electrical functions no Material Stainless steel Plate thickness 2,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for cable tray system height 160 mm Suitable for mesh cable tray no Surface Bright, treated Version for Angle connector Dimensions

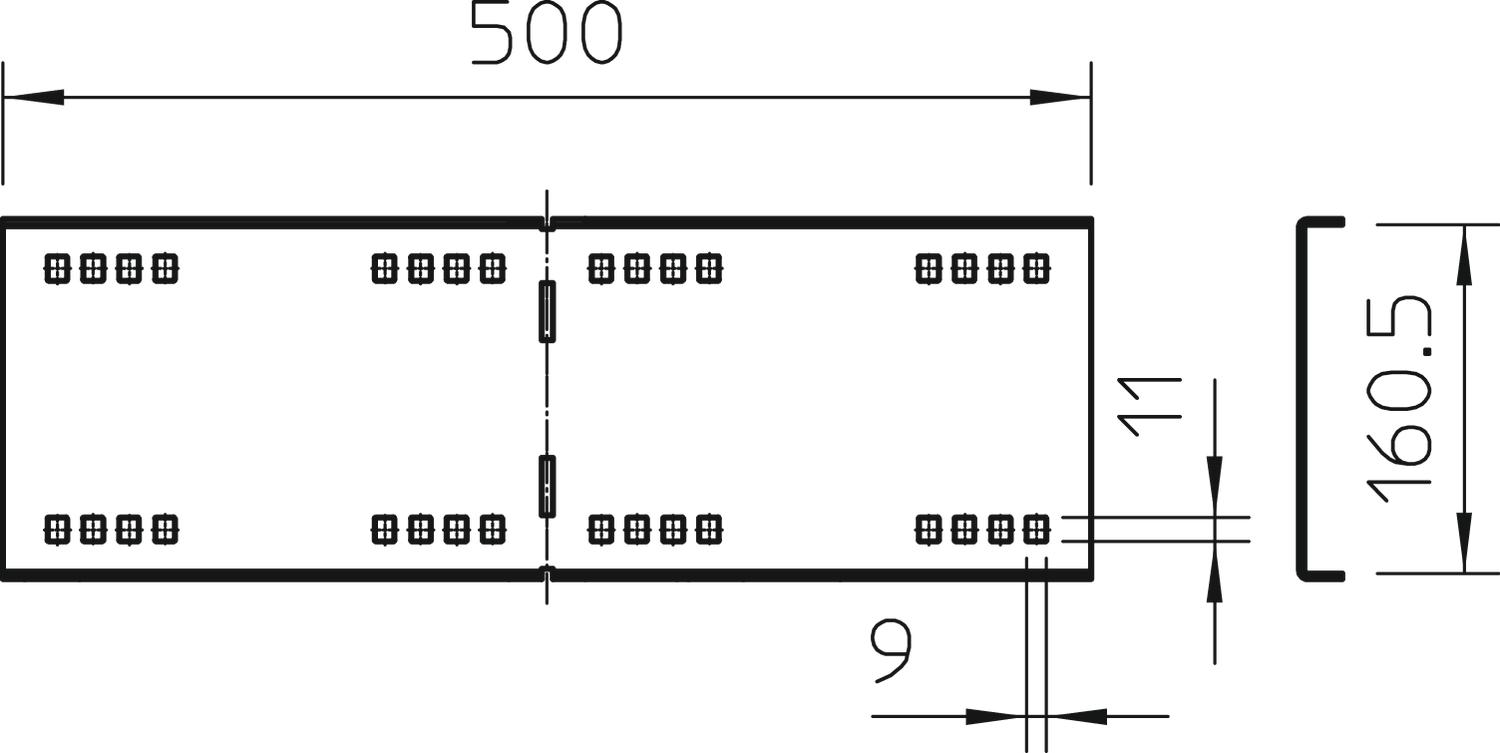

Height 160 mm Length 500 mm Width 20 mm - All types
- Downloads
-
Data sheet WRWVK 160 A4 / 6227837 , 0.25MB , pdfDeclaration of conformity WRWVK 160 A4 / 6227837 , 0.18MB , pdf
