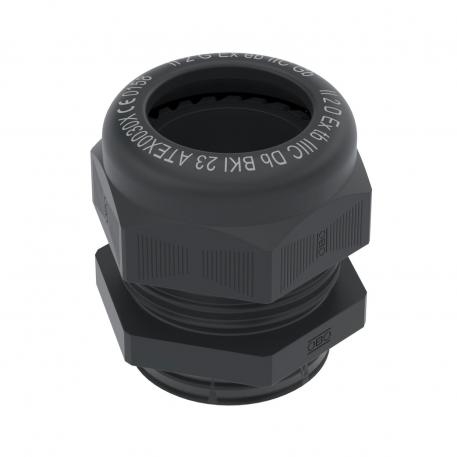

Cable gland, EX area, metric thread, black | | M50 x 1,5 | no | Black

Cable gland, EX area, metric thread, black

Item no. 2050374 | EAN 4012195316695

Item no. / Types

Thread

Sealing insert, multiple	no

Colour	Black

Product description

Product description

Cable gland with EU design type approval certificate for products and protection systems for use in accordance with the regulations in explosion-hazard area. Directive 2014/34/EU.

EU design type approval certificate number: BKI23ATEX0030 X.

With metric connecting thread to IEC 423.

Sealing ring of chloroprene/nitrile rubber, moulded sealing, so no connection thread sealing ring needed.

Protection IP 68 at 3 bar.

Technical data

Technical data

Bend protection	no
Colour	Black
Dimension	M50
explosion-proof	yes
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	yes
For Ex zone dust	21, 22
For Ex zone gas	1, 2
Halogen-free	yes
Hexagonal corner dimension	68,5 mm
Impact-resistant	no
Material	Polyamide
Nominal thread size	50
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C

Protection rating	IP68
Sealing area D, max.	38 mm
Sealing area D, min.	32 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	no
Thread	M50 x 1,5
Thread increase	1,5 mm
Thread length	13 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	17 Nm
Version for	Straight
WAF	60
With locknut	no

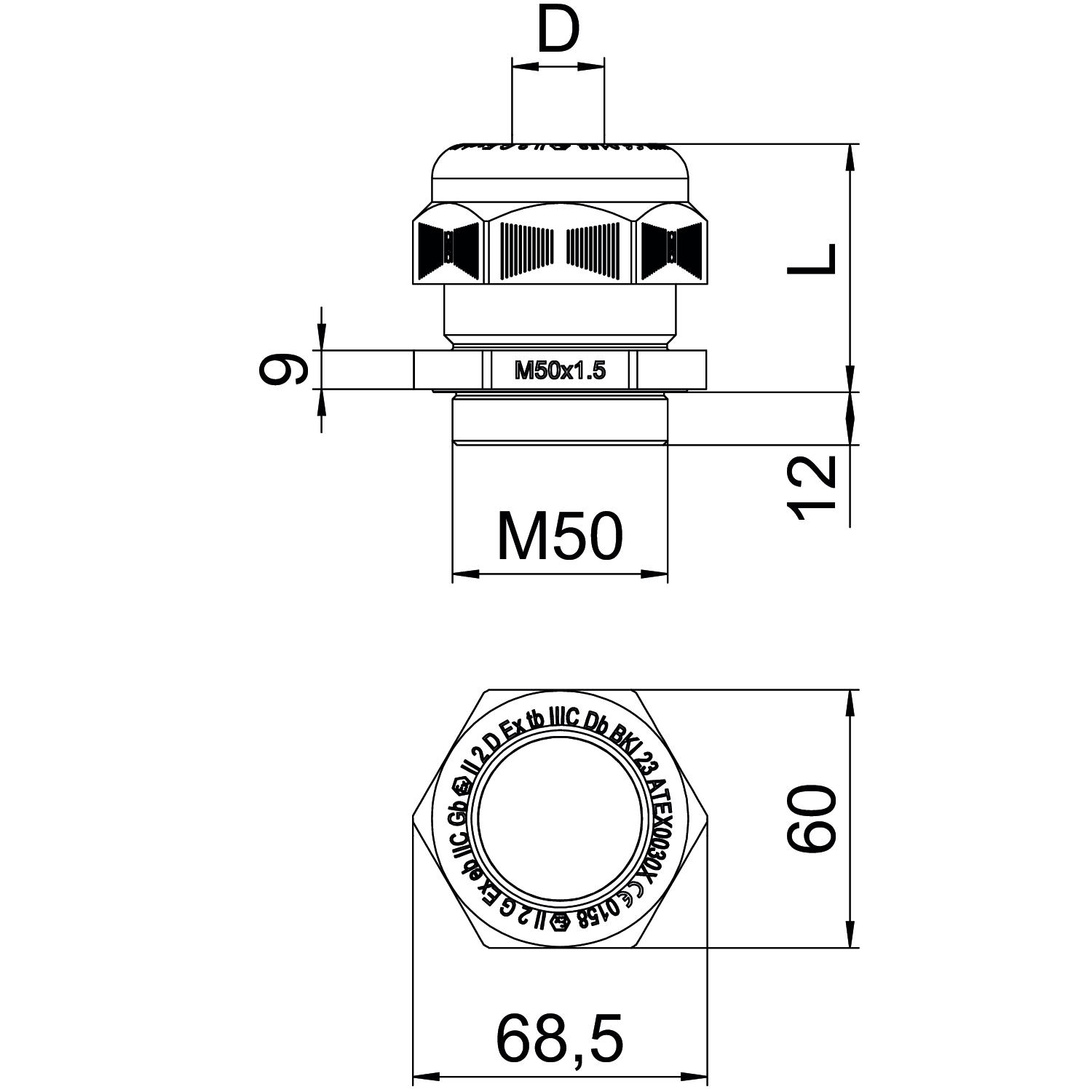

Dimensions

Dimension E	68,5 mm
Dimension G	M50 mm
Dimension L max.	57 mm
Dimension L min.	42 mm

Dimension L1	13 mm
Dimension L2	9 mm
Dimension L3	32,5 mm

All types

All types

Types	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
VTEC EX M16 SW	M16 x 1,5	no	Black	2050315	piece	50 piece
VTEC EX M20 SW	M20 x 1,5	no	Black	2050323	piece	50 piece
VTEC EX M25 SW	M25 x 1,5	no	Black	2050331	piece	25 piece
VTEC EX M32 SW	M32 x 1,5	no	Black	2050358	piece	20 piece
VTEC EX M40 SW	M40 x 1,5	no	Black	2050366	piece	10 piece
VTEC EX M50 SW	M50 x 1,5	no	Black	2050374	piece	5 piece
VTEC EX M63 SW	M63 x 1,5	no	Black	2050382	piece	5 piece
