Cable gland, long metric thread, silver grey | | M32 x 1,5 | no | Silver grey; RAL 7001

Cable gland, long metric thread, silver grey

Item no. 2022930 | EAN 4012195003946

Item no. / Types

Thread

Sealing insert, multiple	no

Colour	Silver grey; RAL 7001

Product description

Product description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Technical data

Technical data

Bend protection	no
Colour	Silver grey; RAL 7001

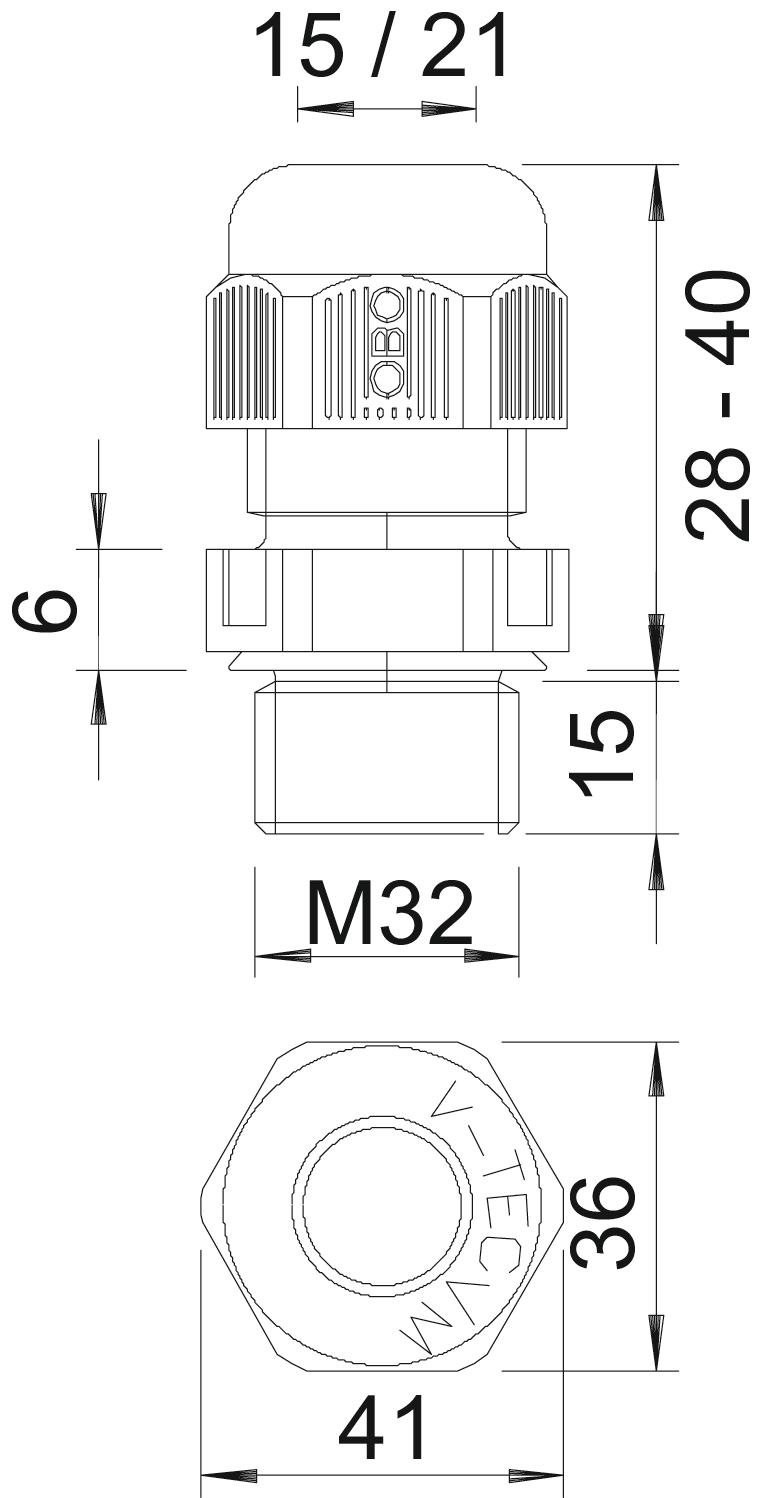

Dimension	M32
Dimension E	41 mm
Dimension L max.	40 mm
Dimension L min.	28 mm
Dimension L1	15 mm
Dimension L2	6 mm
explosion-proof	no
Fibre-glass reinforced	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Hexagonal corner dimension	41 mm
Impact-resistant	no
Material	Polyamide

Nominal thread size	32
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	21 mm
Sealing area D, min.	15 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Thread	M32 x 1,5
Thread increase	1,5 mm
Thread length	15 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	7,5 Nm
Version for	Straight
WAF	36
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU

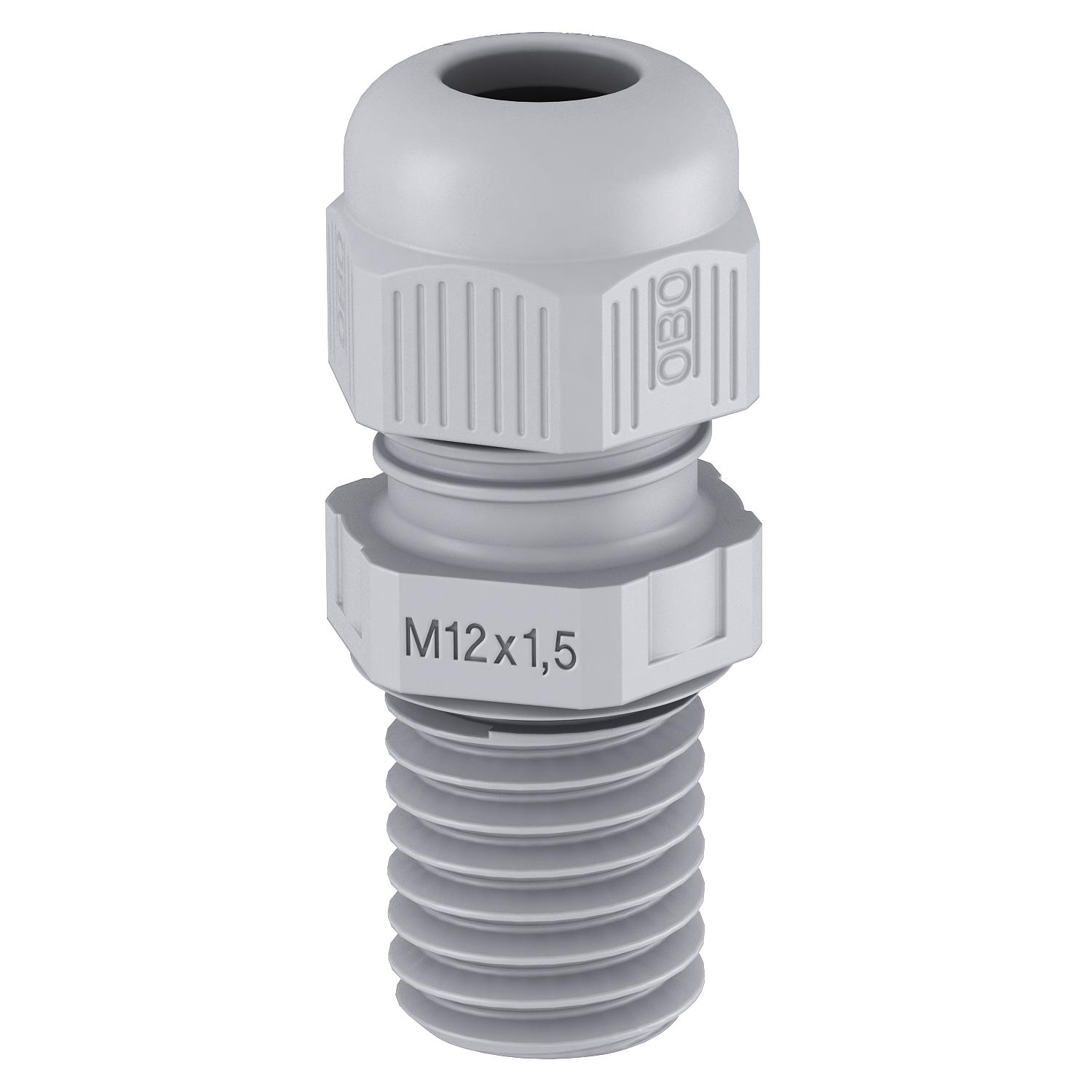

V-TEC VM L12 SGR	M12 x 1,5	no	Silver grey; RAL 7001	2022921	piece	50 piece
V-TEC VM L16 SGR	M16 x 1,5	no	Silver grey; RAL 7001	2022924	piece	50 piece
V-TEC VM L20 SGR	M20 x 1,5	no	Silver grey; RAL 7001	2022926	piece	50 piece
V-TEC VM L25 SGR	M25 x 1,5	no	Silver grey; RAL 7001	2022928	piece	25 piece
V-TEC VM L32 SGR	M32 x 1,5	no	Silver grey; RAL 7001	2022930	piece	20 piece
