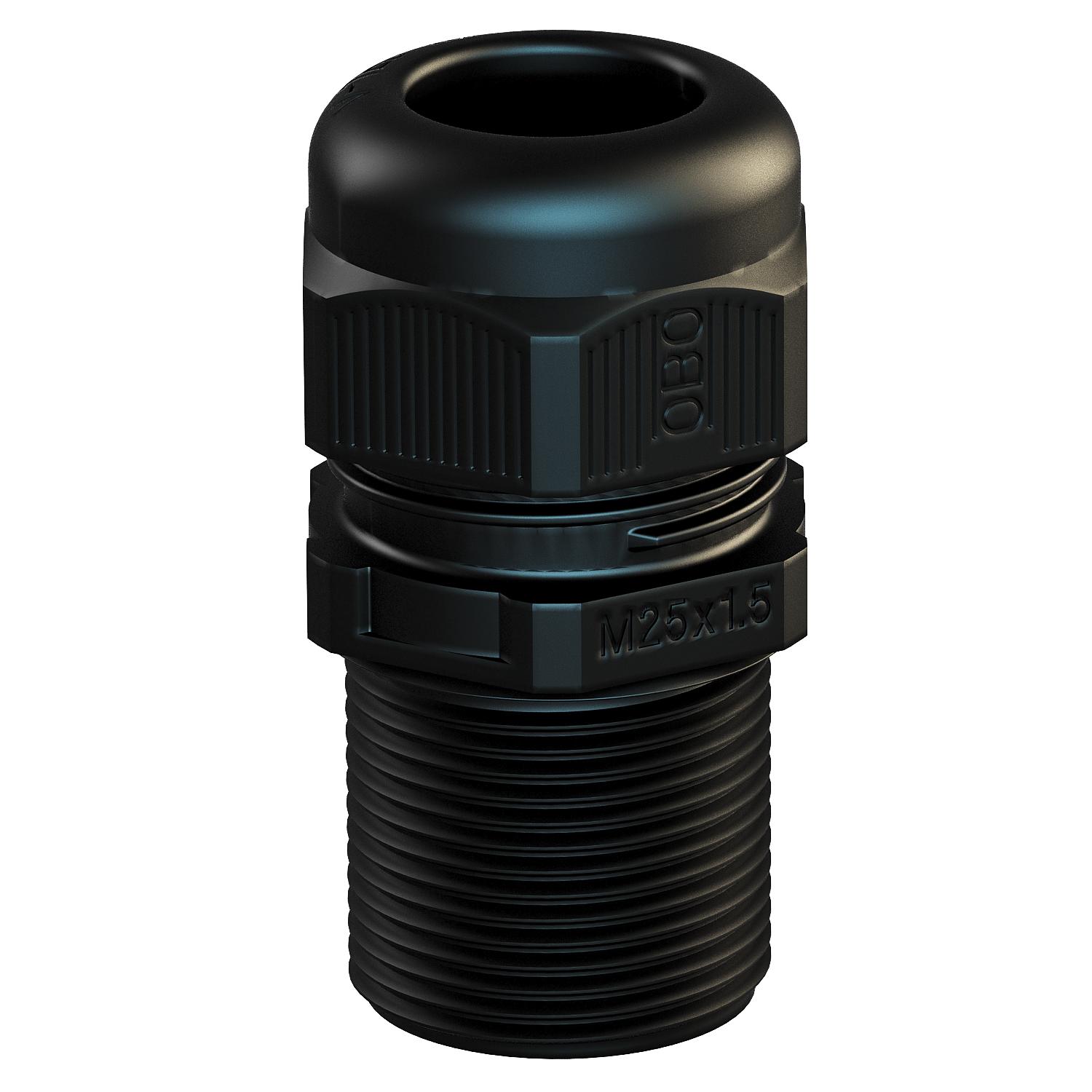

Cable gland, metric thread, extra long, black
Item no. 2022991 | EAN 4012195812197
- Product description
-
Product descriptionCable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data

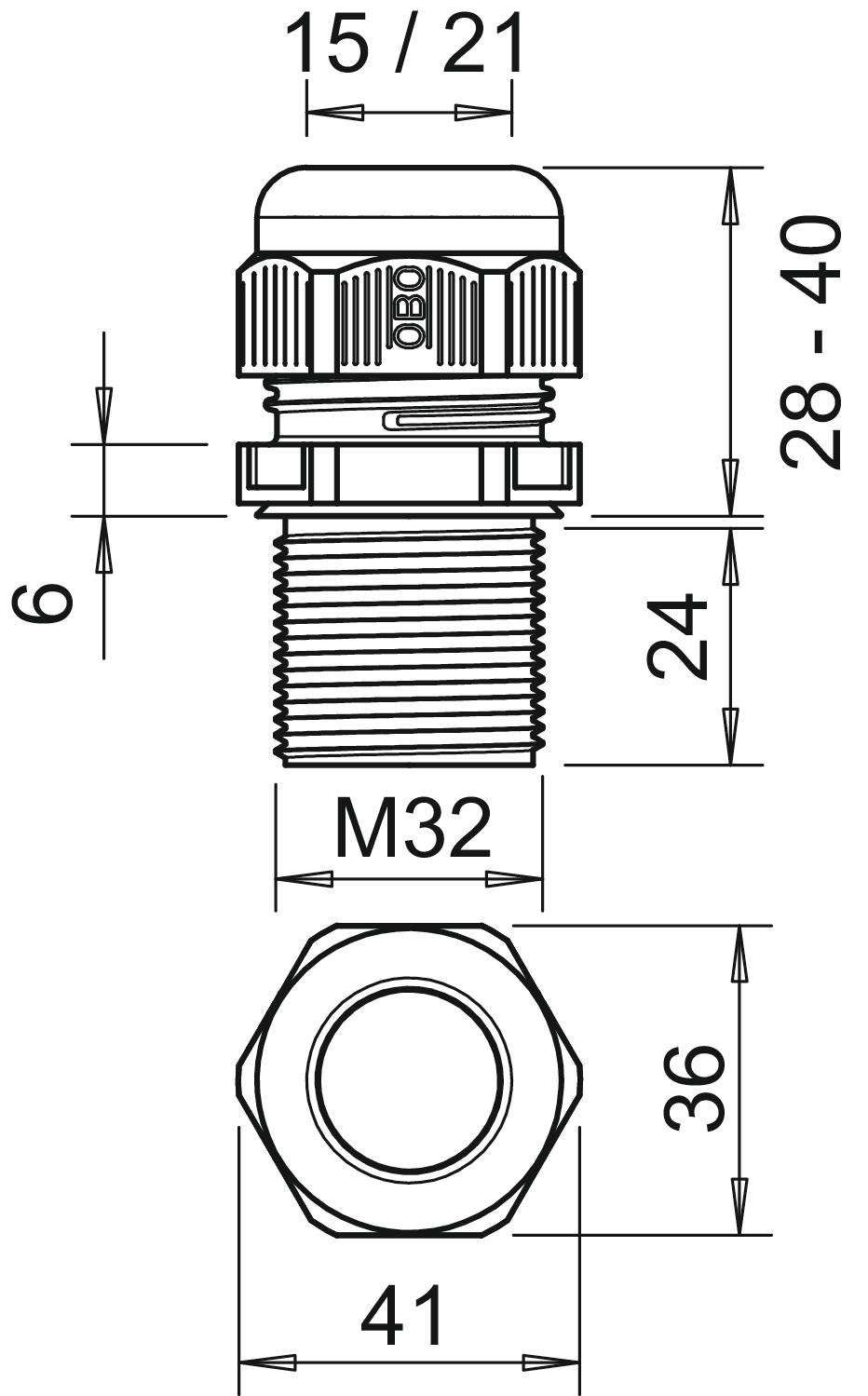

Bend protection no Colour Black Dimension M32 Dimension E 41 mm Dimension L max. 40 mm Dimension L min. 28 mm Dimension L1 24 mm Dimension L2 6 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 41 mm Impact-resistant no Material Polyamide Nominal thread size 32 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 21 mm Sealing area D, min. 15 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M32 x 1,5 Thread increase 1,8 mm Thread length 24 mm Thread type Metric Type of seal Sealing ring Unstable torque 7,5 Nm Version for Straight WAF 36 With locknut no - All types
- Downloads
-
Data sheet V-TEC VM LL32 SW / 2022991 , 0.34MB , pdfEU declaration of conformity V-TEC VM LL32 SW / 2022991 , 0.11MB , pdfREACH Declaration of conformity V-TEC VM LL32 SW / 2022991 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM LL32 SW / 2022991 , 0.12MB , pdfLabel approval VDE symbol approval, V-TEC VM, V-TEC VML , 0.17MB , pdfLabel approval VDE symbol approval, V-TEC VM , 0.17MB , pdfMounting instructions Mounting instructions, V-TEC VM LL.. SW , 2.00MB , pdf
