Cable gland, metric thread, light grey
Item no. 2022876 | EAN 4012195533955
- Product description
-
Product descriptionCable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data

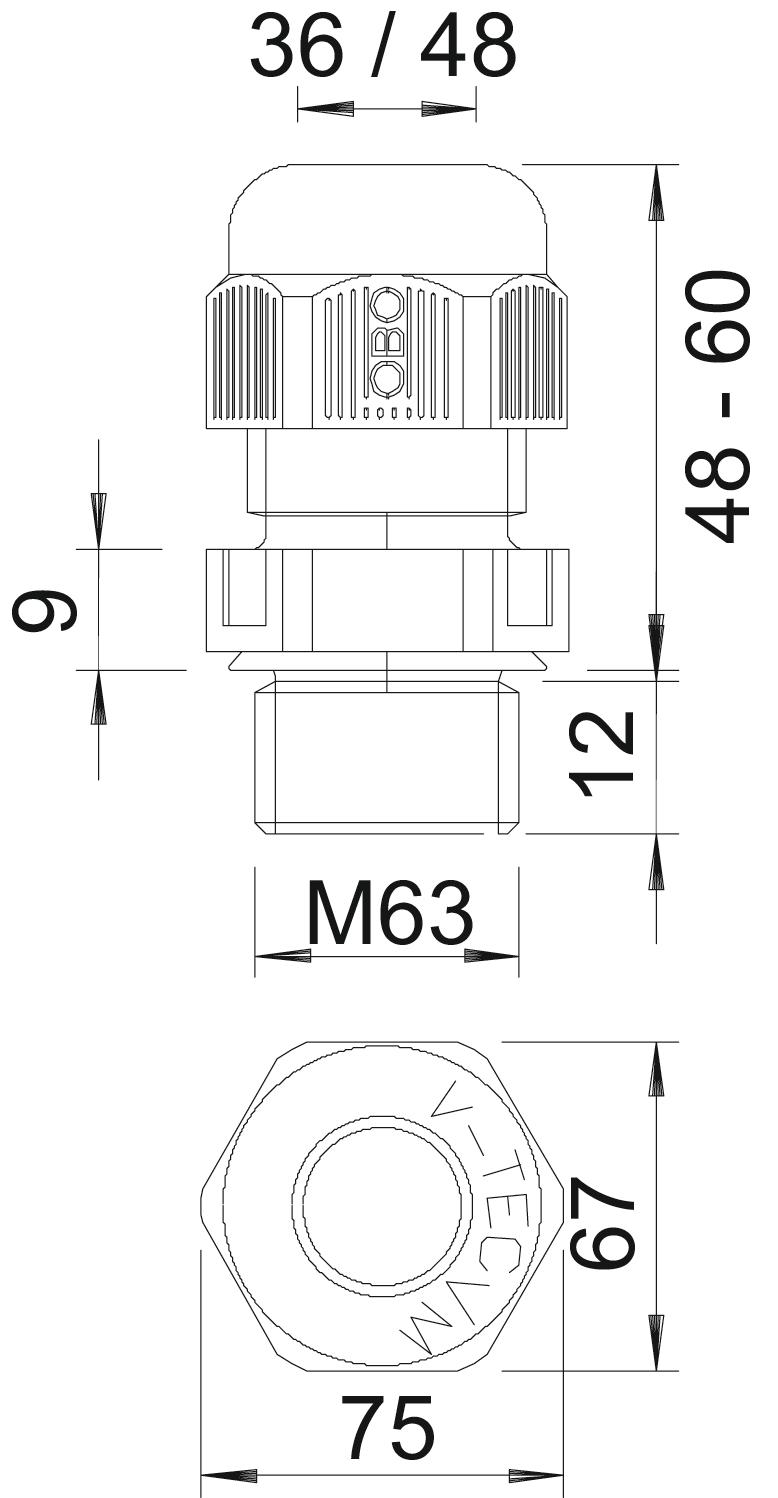

Bend protection no Colour Light grey; RAL 7035 Dimension M63 Dimension E 75 mm Dimension L max. 60 mm Dimension L min. 48 mm Dimension L1 12 mm Dimension L2 9 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 75 mm Impact-resistant no Material Polyamide Nominal thread size 63 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 48 mm Sealing area D, min. 36 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M63 x 1,5 Thread increase 1,5 mm Thread length 12 mm Thread type Metric Type of seal Sealing ring Unstable torque 15 Nm Version for Straight WAF 67 With locknut no - All types
-
All types
- Downloads
-
Data sheet V-TEC VM63 LGR / 2022876 , 0.31MB , pdfEU declaration of conformity V-TEC VM63 LGR / 2022876 , 0.10MB , pdfREACH Declaration of conformity V-TEC VM63 LGR / 2022876 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM63 LGR / 2022876 , 0.12MB , pdfLabel approval DNV symbol approval, V-TEC VM , 0.03MB , pdfLabel approval VDE symbol approval, V-TEC VM, V-TEC VML , 0.17MB , pdfLabel approval VDE symbol approval, V-TEC VM , 0.17MB , pdfLabel approval UL certificate V-TEC VM , 0.04MB , pdfMounting instructions Mounting instructions, V-TEC VM.. SGR; V-TEC VM.. LGR; V-TEC VM.. SW , 0.08MB , pdf
