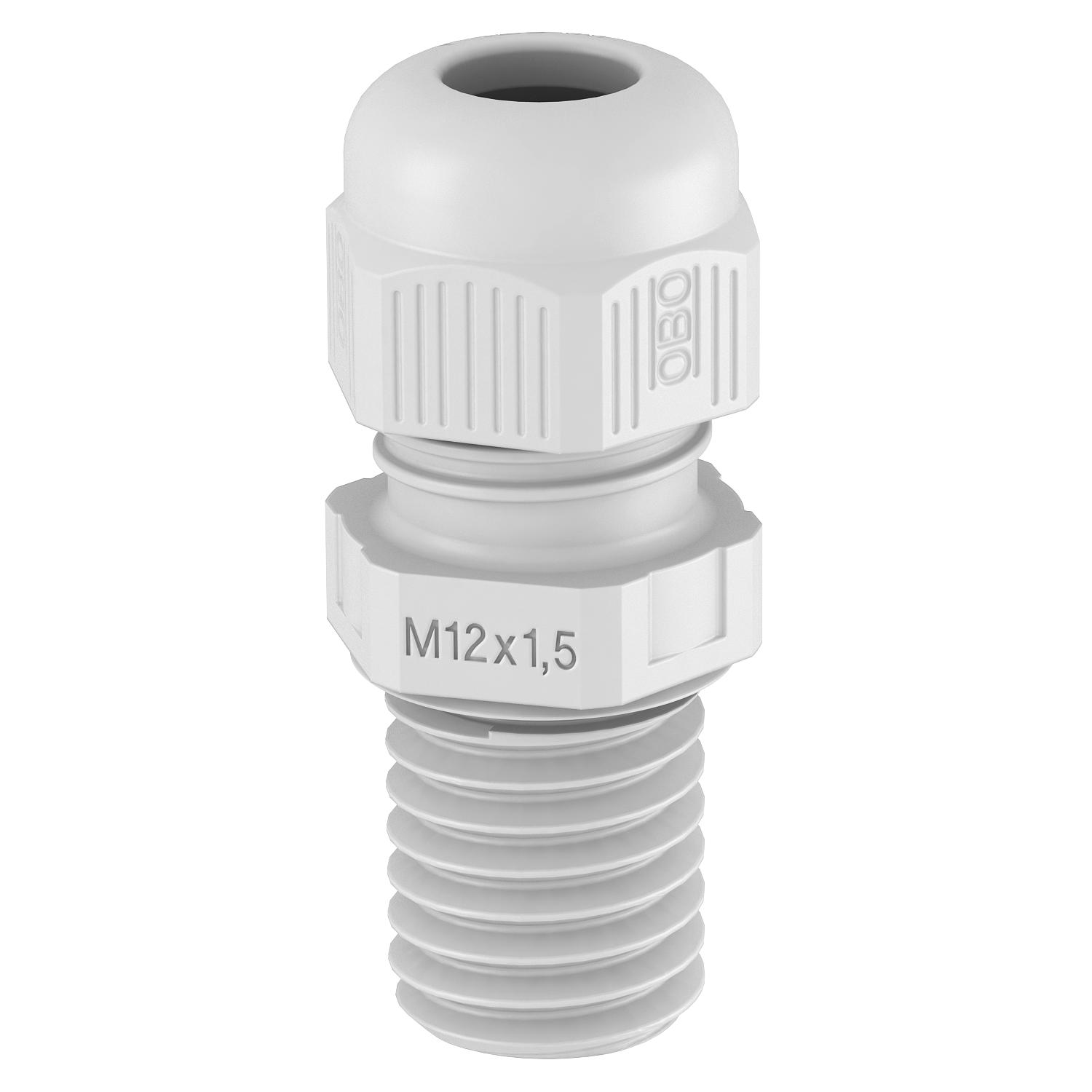

Cable gland, metric thread, long, light grey
Item no. 2022943 | EAN 4012195004127
- Product description
-
Product description
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension M12 explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 16,5 mm Impact-resistant no Material Polyamide Nominal thread size 12 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 7 mm Sealing area D, min. 3,5 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M12 x 1,5 Thread increase 1,5 mm Thread length 15 mm Thread type Metric Type of seal Sealing ring Unstable torque 2 Nm Version for Straight WAF 15 With locknut no Dimensions

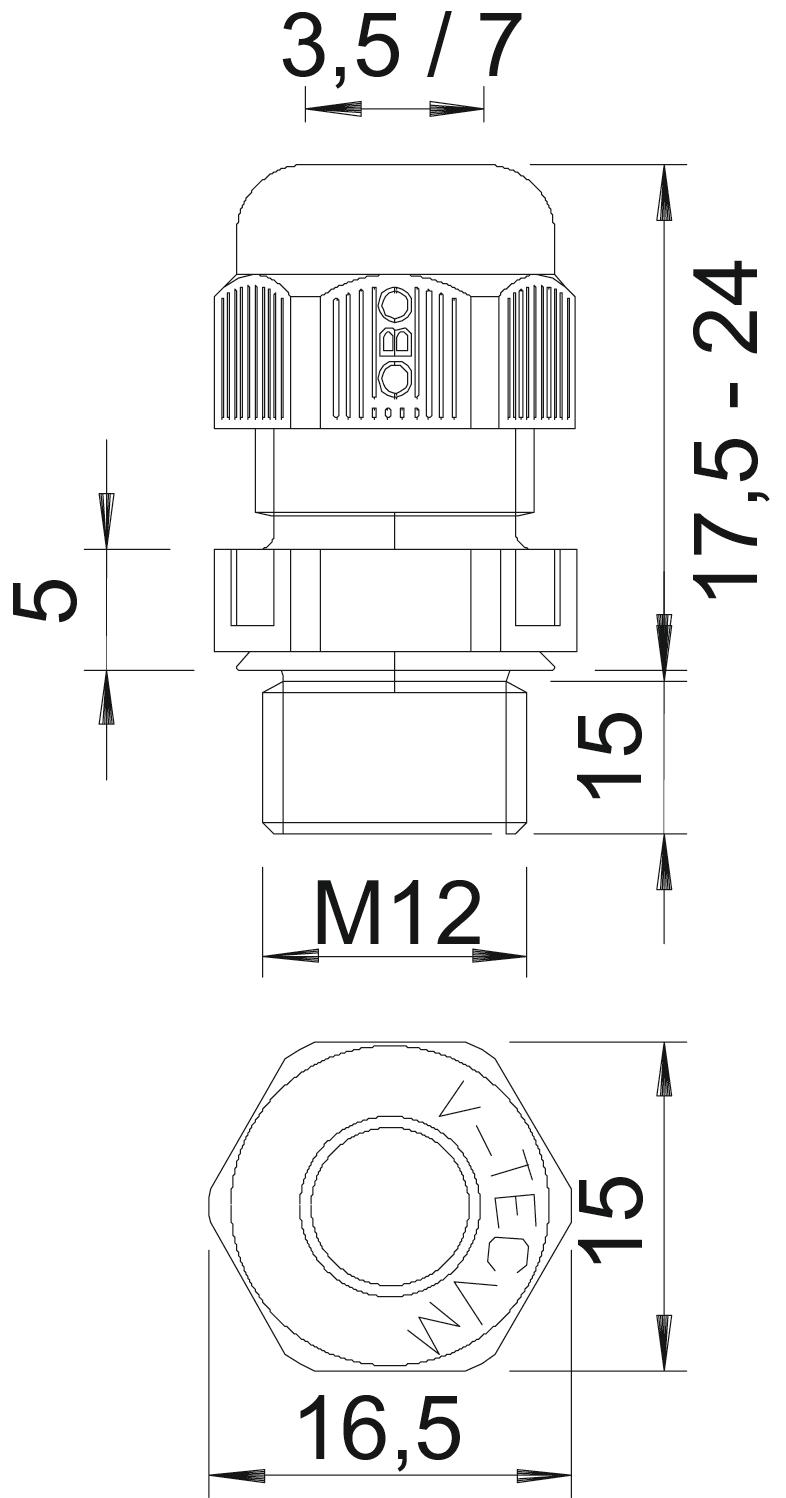

Dimension E 16,5 mm Dimension L max. 24 mm Dimension L min. 17,5 mm Dimension L1 15 mm Dimension L2 5 mm - All types
-
All types
