Cable gland, metric thread, long, light grey
Item no. 2022953 | EAN 4012195004257
- Product description
-
Product descriptionCable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data

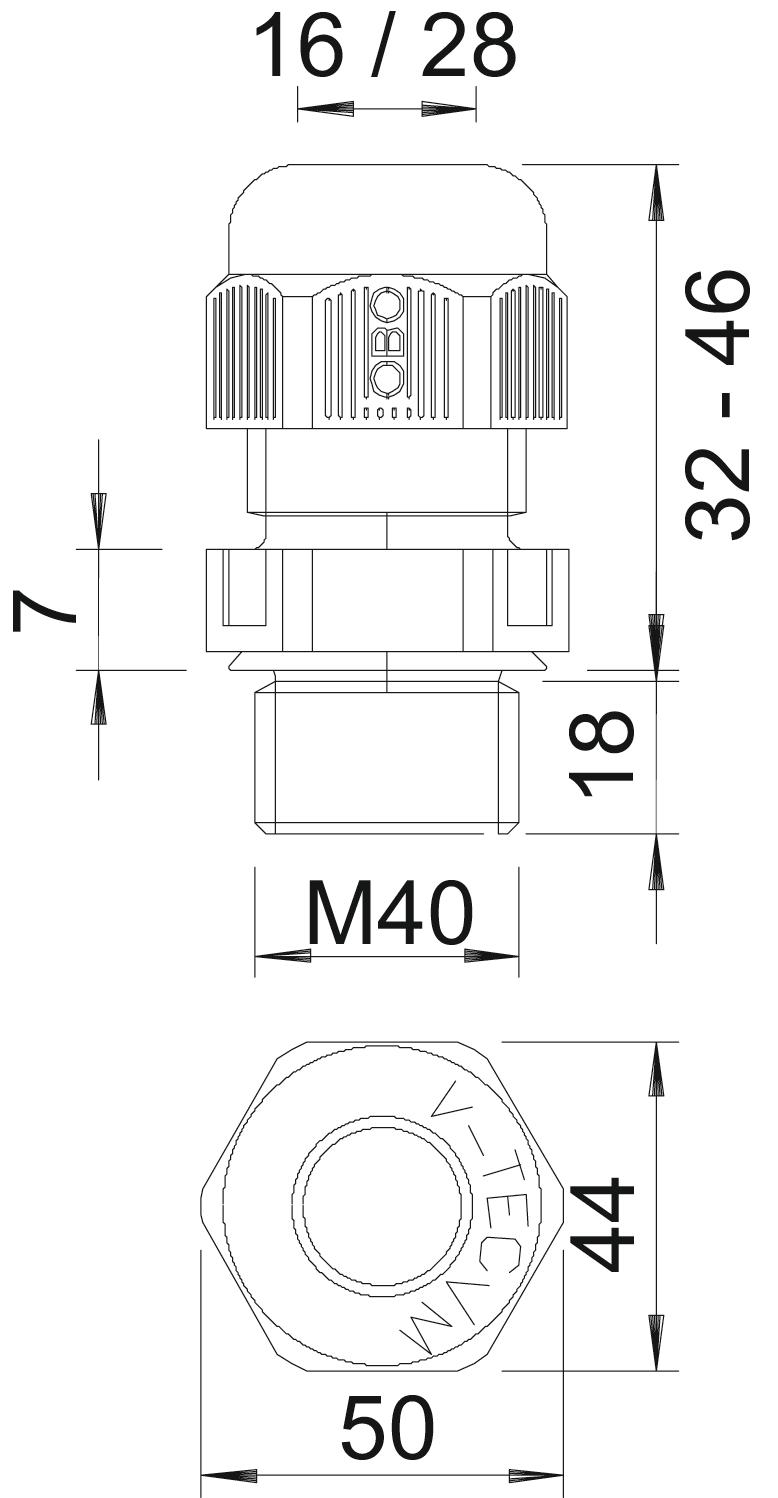

Bend protection no Colour Light grey; RAL 7035 Dimension M40 Dimension E 50 mm Dimension L max. 46 mm Dimension L min. 32 mm Dimension L1 18 mm Dimension L2 7 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 50 mm Impact-resistant no Material Polyamide Nominal thread size 40 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 28 mm Sealing area D, min. 16 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M40 x 1,5 Thread increase 1,5 mm Thread length 18 mm Thread type Metric Type of seal Sealing ring Unstable torque 10 Nm Version for Straight WAF 44 With locknut no - All types
-
All types
- Downloads
-
Data sheet V-TEC VM L40 LGR / 2022953 , 0.28MB , pdfEU declaration of conformity V-TEC VM L40 LGR / 2022953 , 0.10MB , pdfREACH Declaration of conformity V-TEC VM L40 LGR / 2022953 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM L40 LGR / 2022953 , 0.12MB , pdfLabel approval DNV symbol approval, V-TEC VM , 0.03MB , pdfLabel approval VDE symbol approval, V-TEC VM , 0.17MB , pdfLabel approval VDE symbol approval, V-TEC VM, V-TEC VML , 0.17MB , pdf
