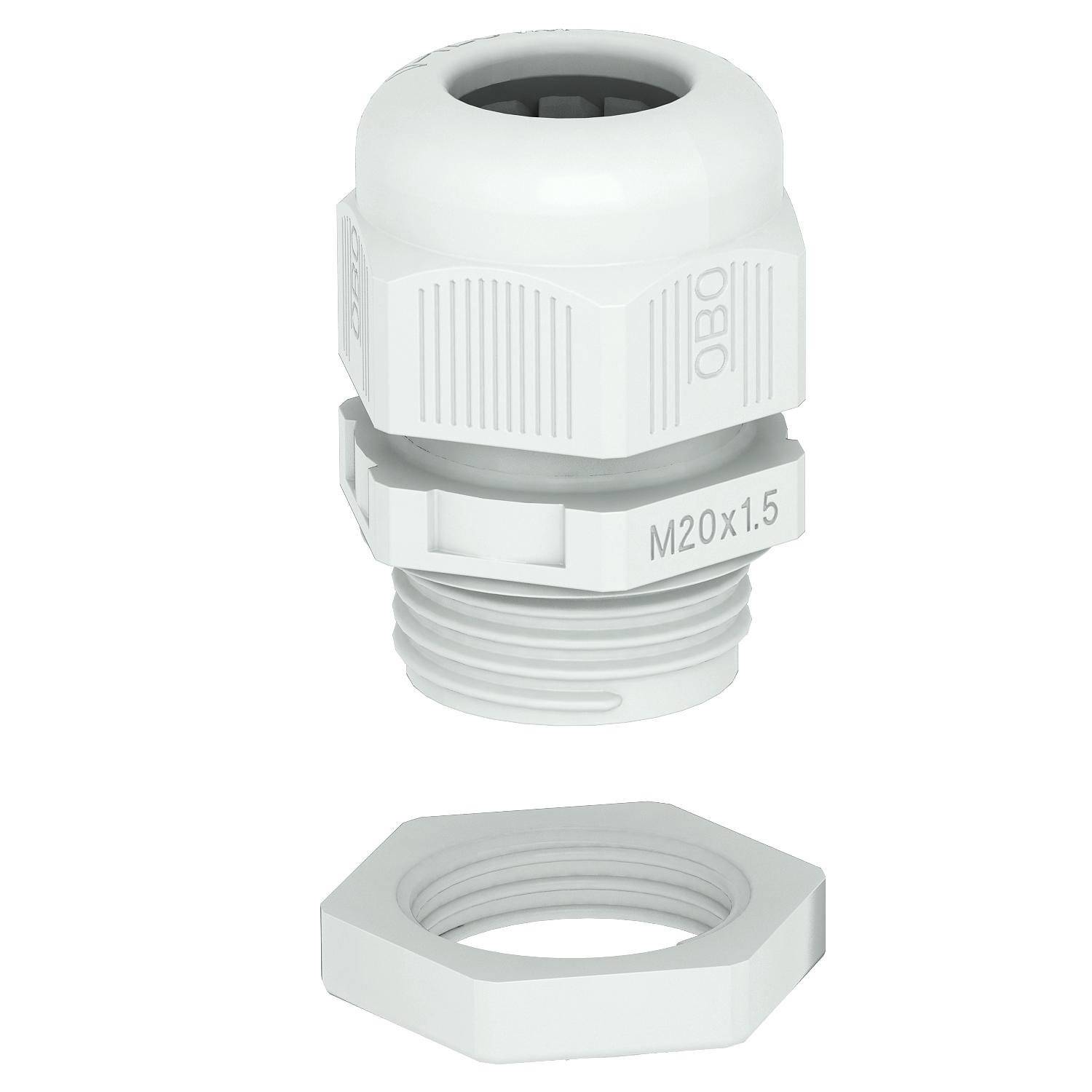

Cable gland, metric thread, set with locknut, light grey
Item no. 2022776 | EAN 4012195860990
- Product description
-
Product descriptionCable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C. Including locknut.
-
- Technical data
-
Technical data

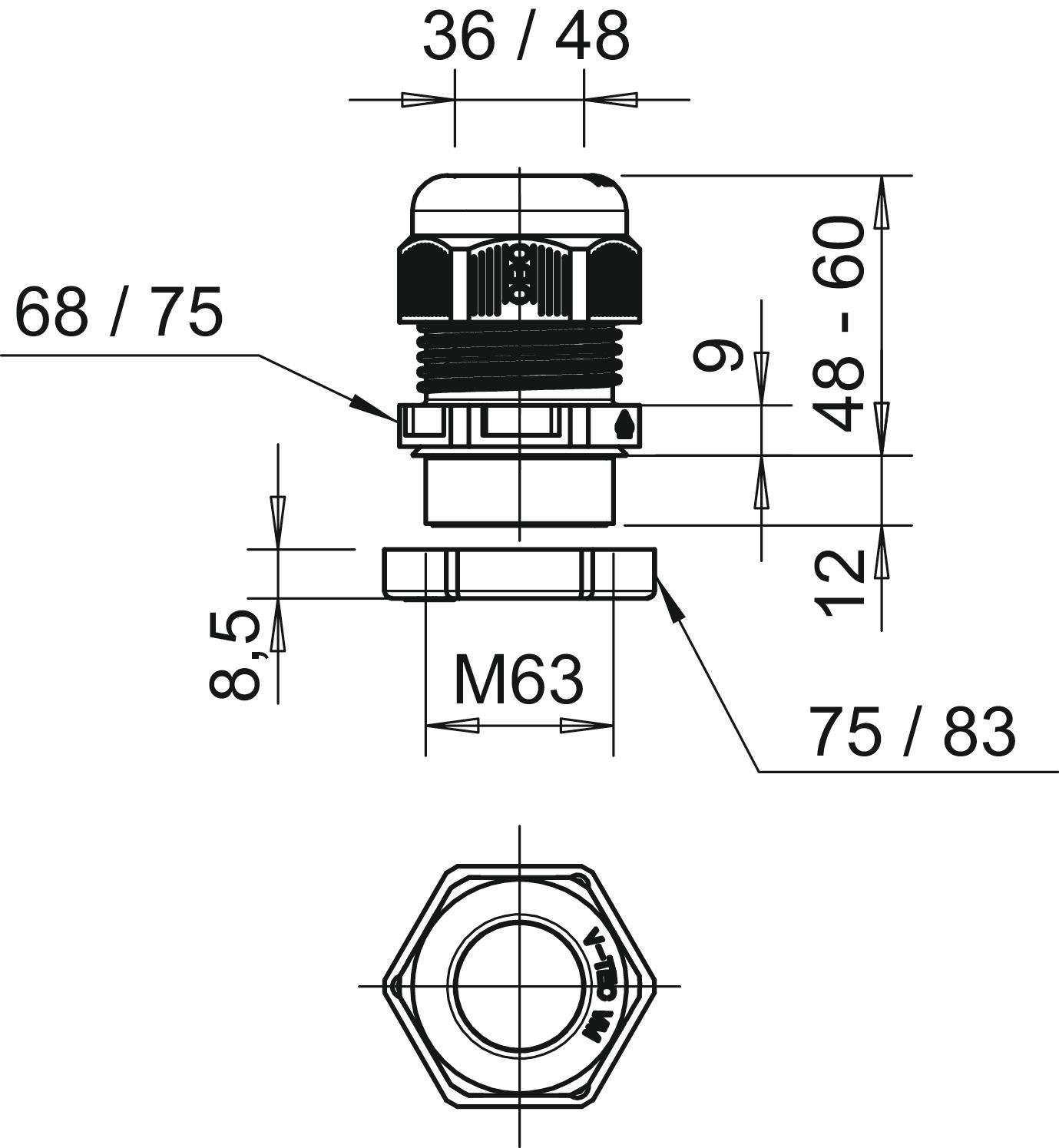

Bend protection no Colour Light grey; RAL 7035 Dimension M63 Dimension E1 (mm) 75 mm Dimension E2 83 mm Dimension L max. 60 mm Dimension L min. 48 mm Dimension L1 12 mm Dimension L2 9 mm Dimension L3 8,5 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Material Polyamide Nominal thread size 63 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 48 mm Sealing area D, min. 36 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M63 x 1,5 Thread increase 1,5 mm Thread length 12 mm Thread type Metric Type of seal Sealing ring Unstable torque 15 Nm Version for Straight WAF 1 68 mm WAF 2 75 mm With locknut no - All types
-
All types
- Downloads
-
Data sheet V-TEC VM63+ LGR / 2022776 , 0.24MB , pdfEU declaration of conformity V-TEC VM63+ LGR / 2022776 , 0.10MB , pdfREACH Declaration of conformity V-TEC VM63+ LGR / 2022776 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM63+ LGR / 2022776 , 0.12MB , pdfLabel approval UL certificate V-TEC VM , 0.04MB , pdfMounting instructions Mounting instructions, V-TEC VM.. ..x.. , 2.00MB , pdf
