Cable gland, metric thread, short, light grey | | M20 x 1,5 | no | Light grey; RAL 7035

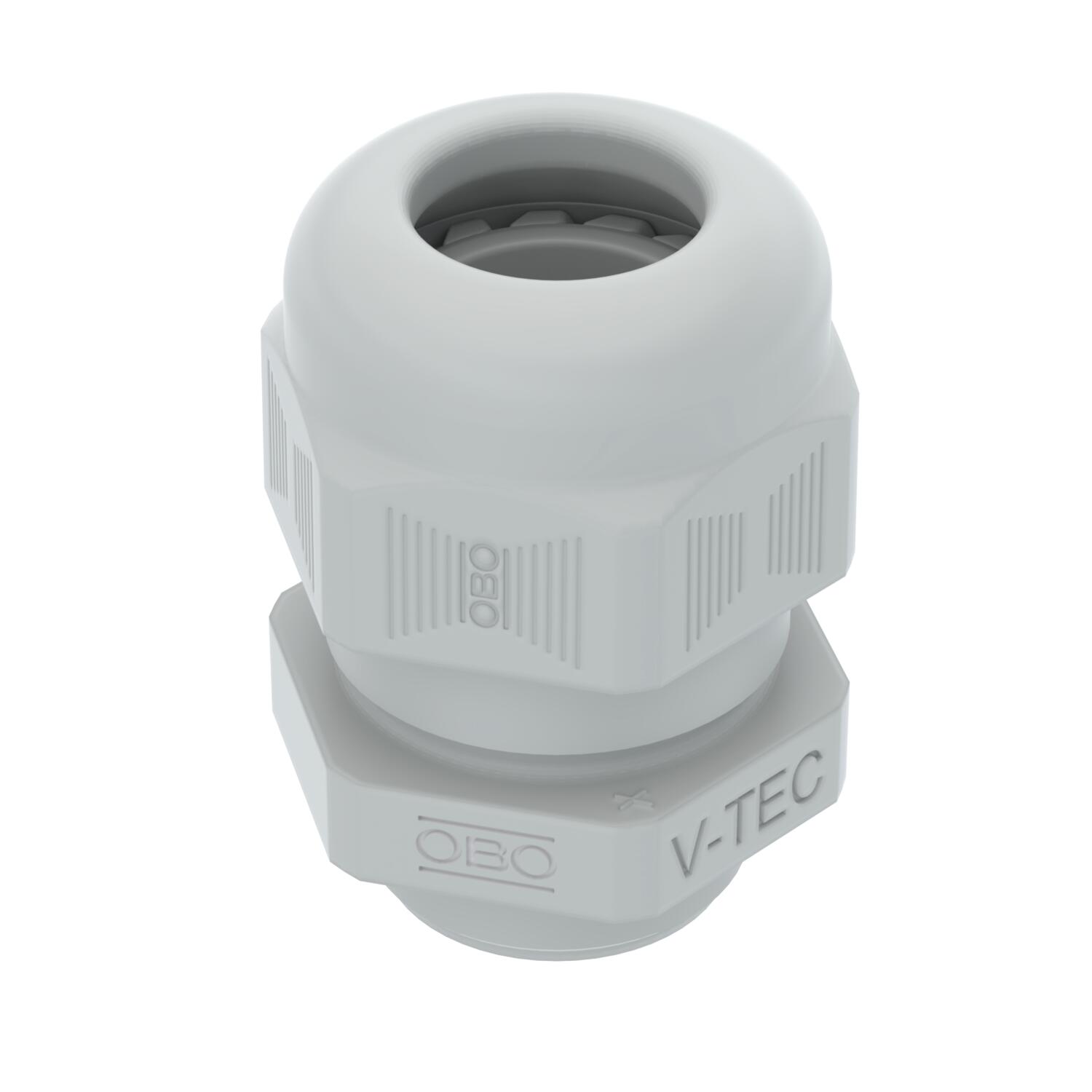

Cable gland, metric thread, short, light grey

Item no. 2024880 | EAN 4012195515050

Item no. / Types	2024880 / V-TEC M KA M20NL

Thread	M20 x 1,5

Sealing insert, multiple	no

Colour	Light grey; RAL 7035

Product description

Product description

Cable gland with short metric connection thread in cap nut design, suitable for junction boxes with metric connection thread. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, thus no connection thread sealing ring required, VDE-tested to DIN EN 50262, protection rating IP68 at 5 bar 1 h. Temperature range –20 °C to +65 °C.
Table column D: sealing range to VDE 0619, in which no strain relief is required.
Table column D2: sealing range including strain relief and twist protection to VDE 0619

Technical data

Technical data

Bend protection	no
Colour	Light grey; RAL 7035
Dimension	M20
Dimension L max.	33 mm
Dimension L min.	25 mm
Dimension L1	7 mm
Dimension L2	6 mm
Dimension L3	19 mm
explosion-proof	no
Fibre-glass reinforced	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Hexagonal corner dimension	27 mm
Impact-resistant	no

Material	Polyamide
Nominal thread size	20
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	14 mm
Sealing area D, min.	7 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Thread	M20 x 1,5
Thread increase	1,5 mm
Thread length	7 mm
Thread type	Metric
Type of seal	Sealing ring
Version for	Straight
WAF	27
With locknut	no
