Cable gland, metric thread, UV-resistant, light grey
Item no. 2022902 | EAN 4012195896739
- Product description
-
Product descriptionCable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data

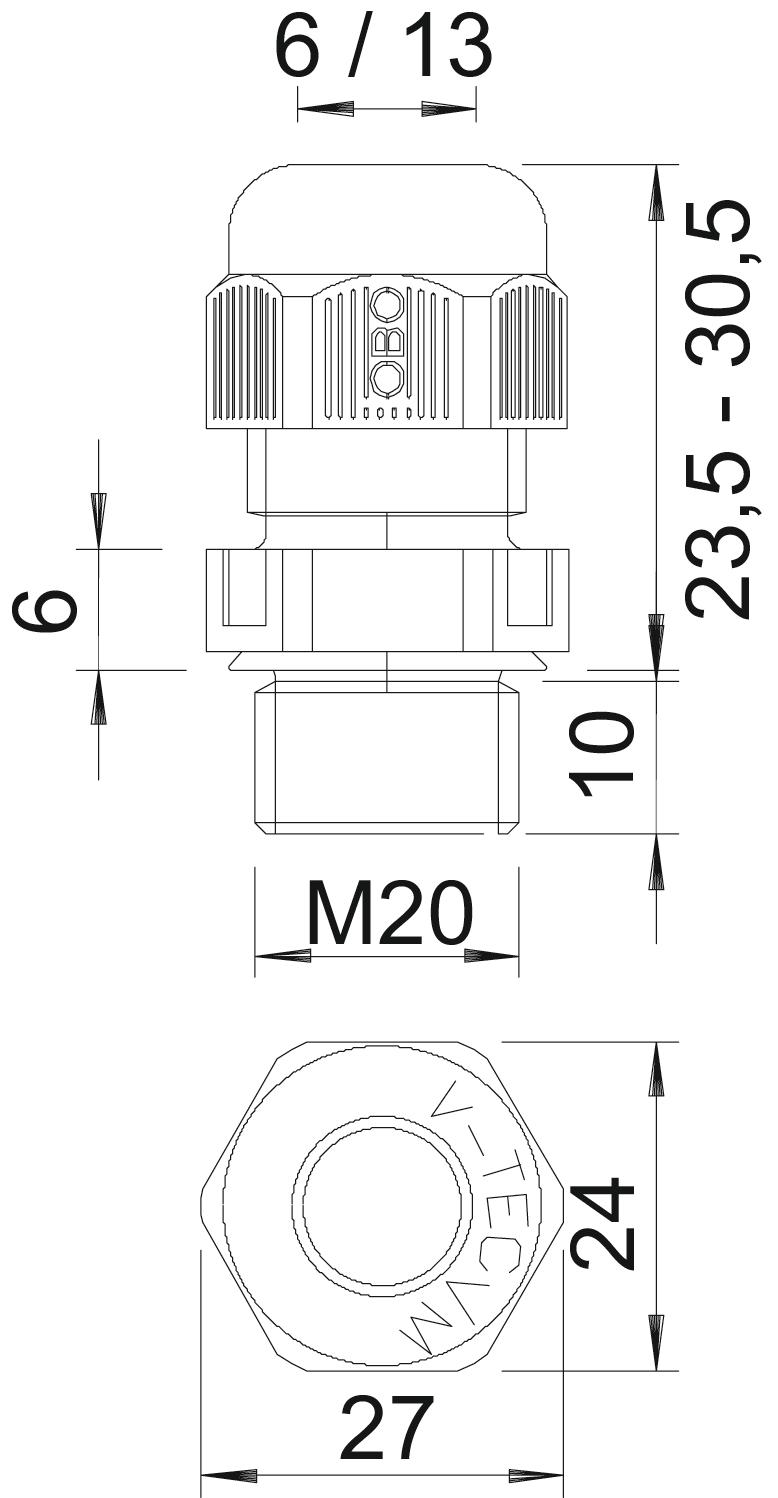

Bend protection no Colour Light grey Dimension M20 Dimension E 27 mm Dimension L max. 30,5 mm Dimension L min. 23,5 mm Dimension L1 9 mm Dimension L2 5 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 27 mm Impact-resistant no Material Polyamide Nominal thread size 20 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 13 mm Sealing area D, min. 6 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M20 x 1,5 Thread length 9 mm Thread type Metric Type of seal Sealing ring Unstable torque 3,8 Nm Version for Straight WAF 24 With locknut no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU

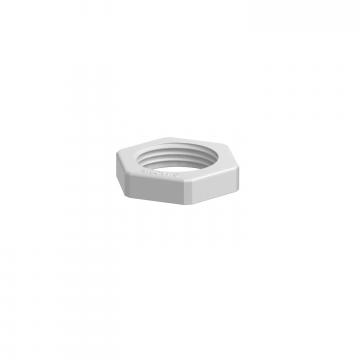

Locknut, metric thread, light grey
116 M20 LGR PA 2048922 100 piece - Downloads
-
Data sheet V-TEC VM20UV LGR / 2022902 , 0.29MB , pdfEU declaration of conformity V-TEC VM20UV LGR / 2022902 , 0.10MB , pdfREACH Declaration of conformity V-TEC VM20UV LGR / 2022902 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM20UV LGR / 2022902 , 0.12MB , pdfLabel approval VDE symbol approval, V-TEC VM, V-TEC VML , 0.17MB , pdfLabel approval VDE symbol approval, V-TEC VM , 0.17MB , pdfLabel approval UL certificate V-TEC VM , 0.04MB , pdfMounting instructions Mounting instructions, V-TEC VM..UV LGR , 2.00MB , pdf
