Cable gland, metric thread, UV-resistant, light grey | | M25 x 1,5 | no | Light grey

Cable gland, metric thread, UV-resistant, light grey

Item no. 2022903 | EAN 4012195896746

Item no. / Types

Thread

Sealing insert, multiple	no

Colour	Light grey

Product description

Product description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Technical data

Technical data

Bend protection	no
Colour	Light grey

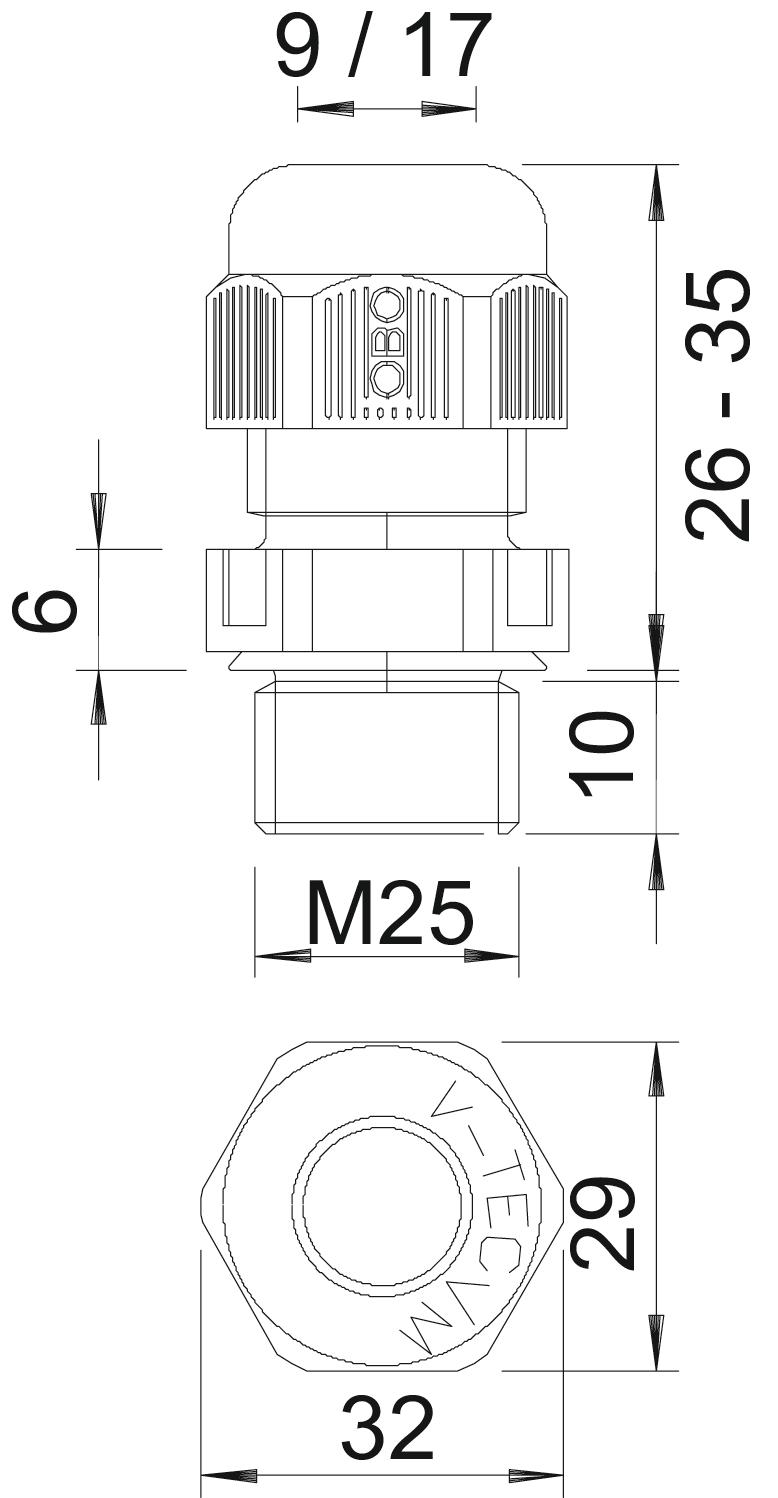

Dimension	M25
Dimension E	32 mm
Dimension L max.	35 mm
Dimension L min.	26 mm
Dimension L1	10 mm
Dimension L2	6 mm
explosion-proof	no
Fibre-glass reinforced	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Hexagonal corner dimension	32 mm
Impact-resistant	no

Material	Polyamide
Nominal thread size	25
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	17 mm
Sealing area D, min.	9 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Thread	M25 x 1,5
Thread length	10 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	5 Nm
Version for	Straight
WAF	29
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
V-TEC VM16UV LGR	M16 x 1,5	no	Light grey	2022901	piece	50 piece
V-TEC VM20UV LGR	M20 x 1,5	no	Light grey	2022902	piece	50 piece
V-TEC VM25UV LGR	M25 x 1,5	no	Light grey	2022903	piece	25 piece
V-TEC VM32UV LGR	M32 x 1,5	no	Light grey	2022904	piece	20 piece
V-TEC VM40UV LGR	M40 x 1,5	no	Light grey	2022905	piece	10 piece
V-TEC VM50UV LGR	M50 x 1,5	no	Light grey	2022906	piece	5 piece
