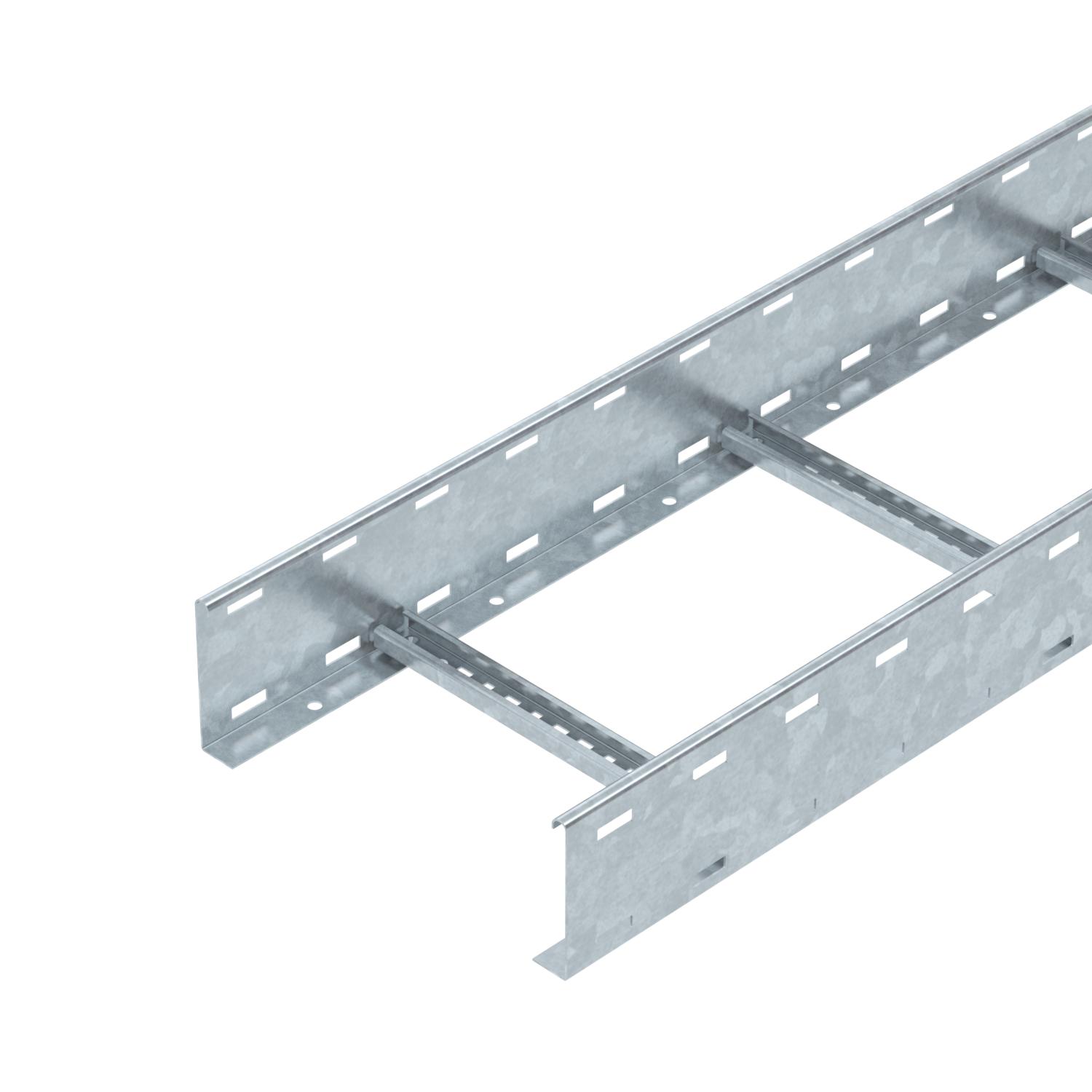

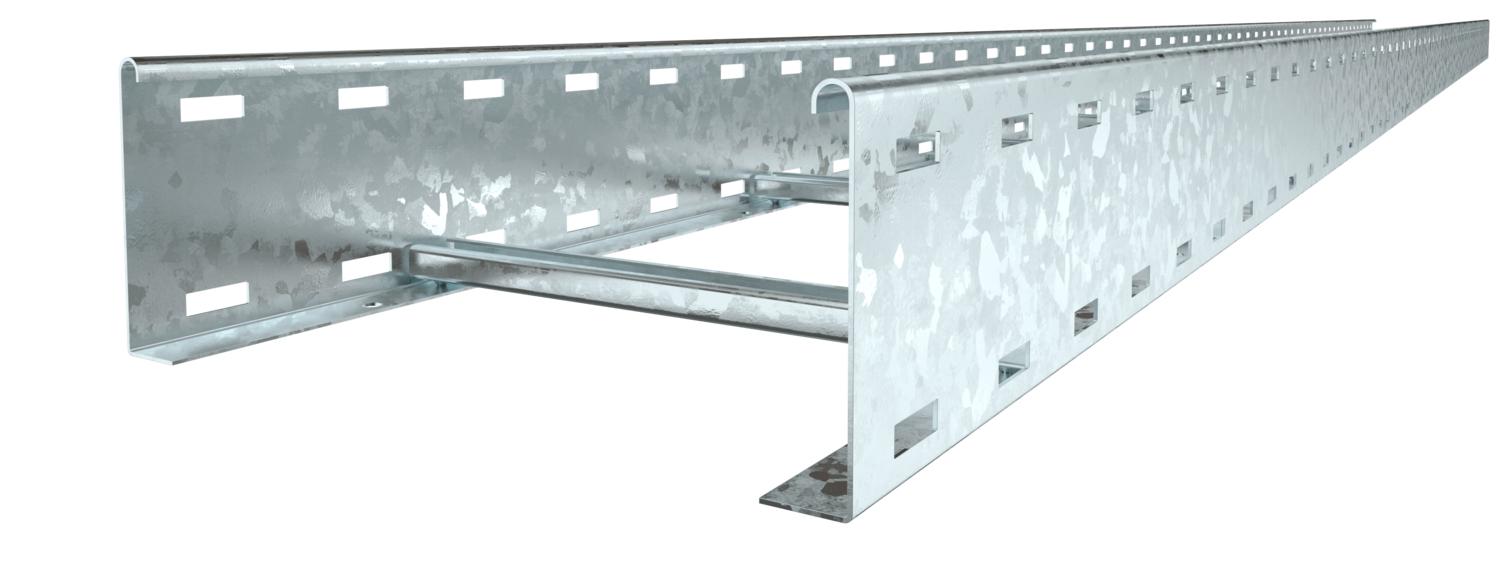

Cable ladder LCIS 110, 6 m C30 FT
Item no. 6209825 | EAN 4012196540525
- Product description
-
Product descriptionCable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
-
- Technical data
-
Technical data
Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 10,345 kg CO₂e / 1 Meter Dimension 110x450x6000 Dimension B 450 mm Fastening of rung Welded Height 110 mm Length 6000 ft Length 6000 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rung distance 300 mm Rung slot dimension 16,50 Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Support spacing 2.0 m 3 kN/m Support spacing 2.5 m 2 kN/m Support spacing 3.0 m 1,4 kN/m Support spacing 3.5 m 1,05 kN/m Support spacing 4.0 m 0,8 kN/m Surface Hot-dip galvanised Usable cross-section 40500 mm² Usable cross-section 405 cm² Version of the rungs Profile perforated Wide-span version no Width 450 mm Technical data
Load diagram, cable ladder, type LCIS 110
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 110 FT 6216548 10 piece
Barrier strip 85 DD
TSG 85 DD 6062331 3 m Mounting accessories
Products Types Item no. Quantity SSU
Clamping piece for separating retainer fastening A2
KS KL A2 6062284 30 piece - Downloads
-
Data sheet LCIS 1145 6 FT / 6209825 , 0.27MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LCIS 1145 6 FT / 6209825 , 0.10MB , pdfUK Declaration of Conformity LCIS 1145 6 FT / 6209825 , 0.09MB , pdfREACH Declaration of conformity LCIS 1145 6 FT / 6209825 , 0.12MB , pdfRoHS Declaration of conformity LCIS 1145 6 FT / 6209825 , 0.12MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
