Cable ladder with trapezoidal rungs, light duty A4
Item no. 7099708 | EAN 4012196509829
- Product description
-

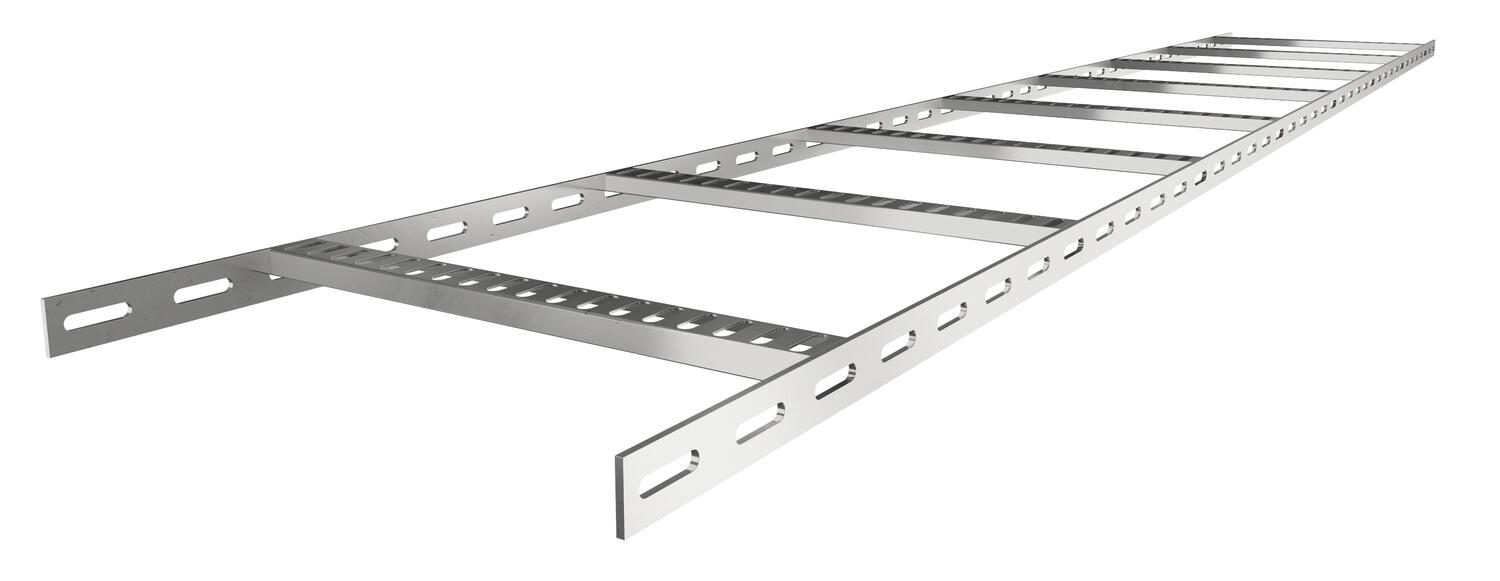

Product descriptionShipbuilding cable ladder with perforated side rail of side height 25 mm with welded, perforated trapezoidal rungs which open in a downwards direction. Load tested according to IEC in conjunction with connector, type SLV.
-
- Technical data
-
Technical data
Colour stainless steel CO₂ Footprint (GWP) Cradle-to-Gate 7,732 kg CO₂e / 1 Meter Dimension 25x206x2000 Dimension B 206 mm Fastening of rung Welded Height 25 mm Length 2000 ft Length 2000 mm Maintain electrical functions no Material Stainless steel Rail thickness 3 mm Rung distance 250 mm Rustproof steel, pickled yes Side perforation yes Side rail version Flat profile Support spacing 1.0 m 1,6 kN/m Support spacing 1.5 m 0,65 kN/m Support spacing 2.0 m 0,25 kN/m Surface Bright, treated Version of the rungs Profile perforated Wide-span version no Width 200 mm Technical data

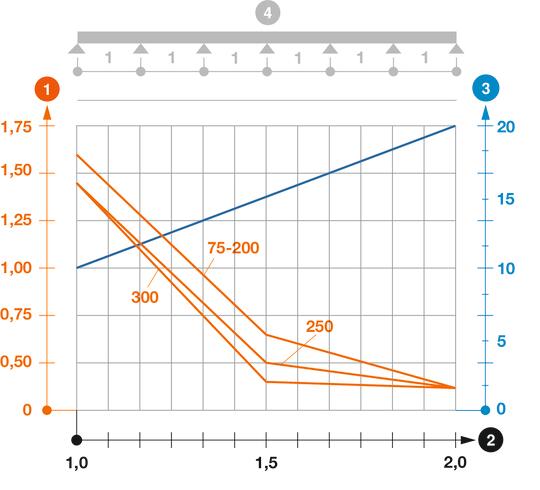

Load diagram, cable ladder, type SL 42
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
Load scheme during testing
-
- All types
-
System accessories
Products Types Item no. Quantity SSU
Connector A2
SLV 42 A4 7103560 20 piece - Downloads
-
Data sheet SL 42 200 A4 / 7099708 , 0.29MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity SL 42 200 A4 / 7099708 , 0.10MB , pdfDeclaration of performance SL 42 200 A4 / 7099708 , 0.55MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
