Cable ladder with trapezoidal rungs, standard FT
Item no. 7097441 | EAN 4012196980482
- Product description
-
Product descriptionShipbuilding cable ladder with perforated side rail of side height 40 mm with welded, perforated trapezoidal rungs which open in a downwards direction. Load tested according to IEC in conjunction with connector, type SLV.
-
- Technical data
-
Technical data
Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 9,635 kg CO₂e / 1 Meter Dimension 40x410x3000 Dimension B 410 mm Fastening of rung Welded Height 40 mm Length 3000 ft Length 3000 mm Maintain electrical functions no Material Steel Rail thickness 5 mm Rung distance 300 mm Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Support spacing 1.5 m 3 kN/m Support spacing 2.0 m 2 kN/m Support spacing 2.5 m 1 kN/m Support spacing 3.0 m 0,6 kN/m Surface Hot-dip galvanised Version of the rungs Profile perforated Wide-span version no Width 400 mm Technical data

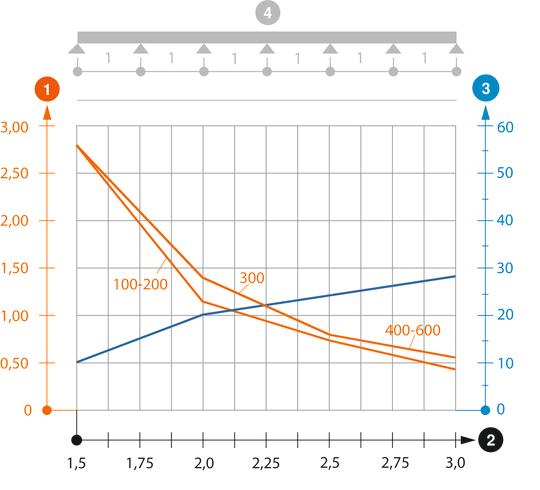

Load diagram, cable ladder, type SL62
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
Load scheme during testing
-
- All types
- Downloads
-
Data sheet SL 62 400 FT / 7097441 , 0.27MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity SL 62 400 FT / 7097441 , 0.10MB , pdfDeclaration of performance SL 62 400 FT / 7097441 , 0.55MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
