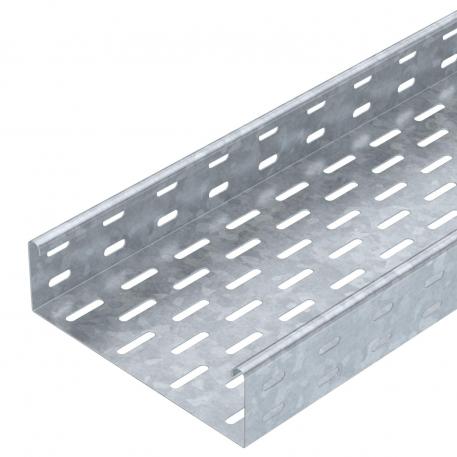

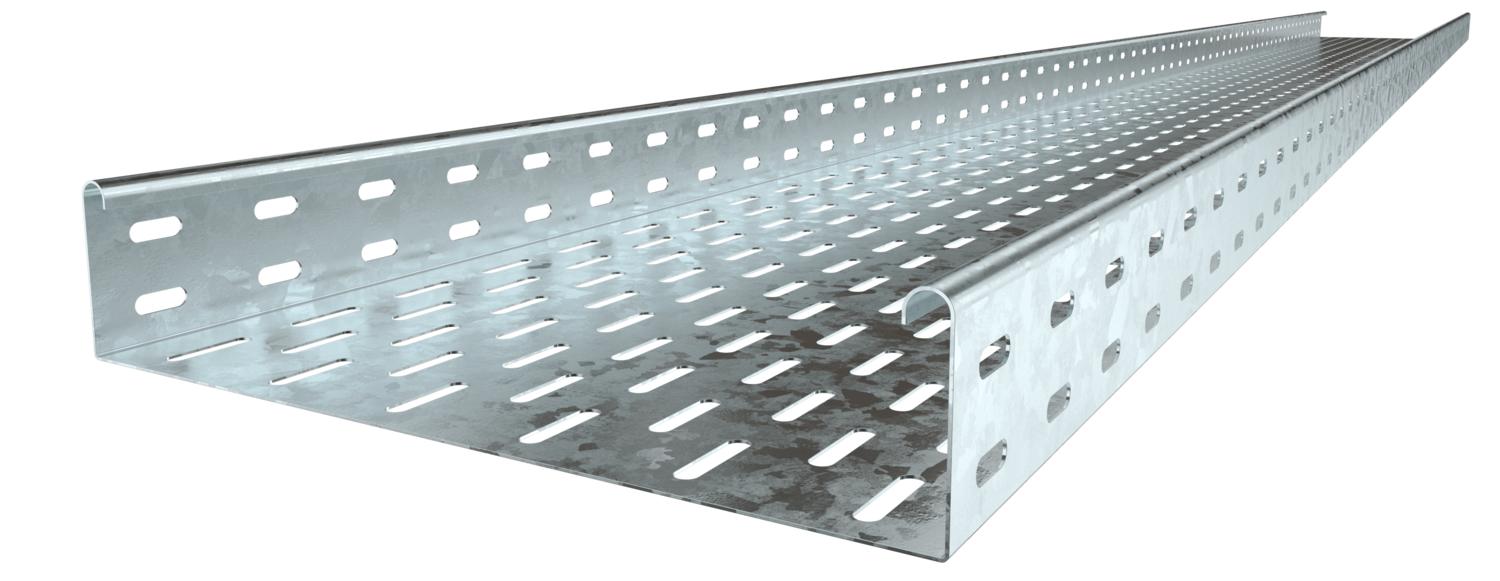

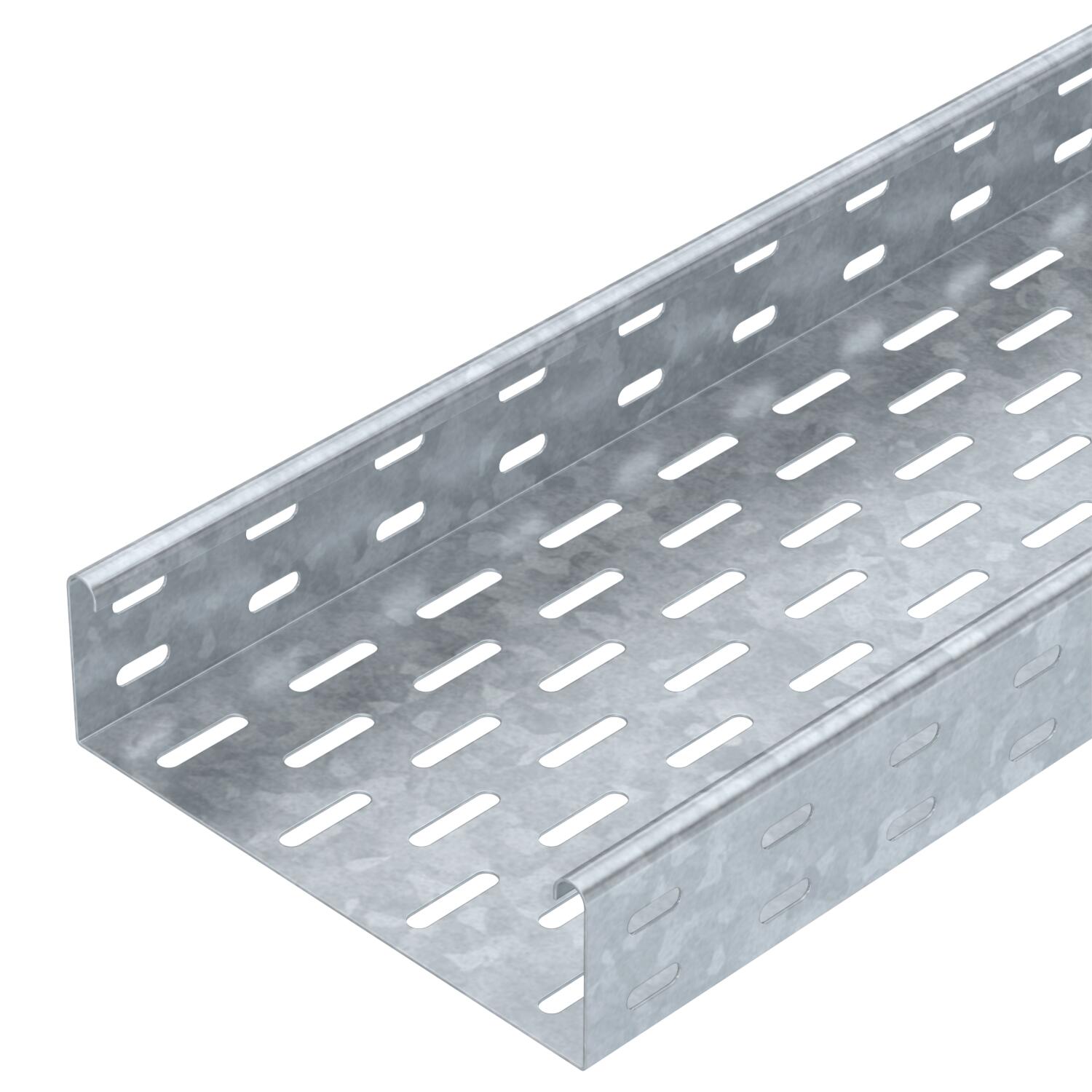

Cable tray MKS 60 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

MKS 60 = Medium-duty cable tray system with a side height of 60 mm.

Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	6,359 kg CO₂e / 1 Meter
Dimension	60x200x3000
Dimension	60 x 200
Dimension B	200 mm
Height	2 in
Height	60 mm
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	200 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Plate thickness	0,04 in
Plate thickness	1 mm
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.5 m	1,5 kN/m
Support spacing 1.75 m	1,25 kN/m
Support spacing 2.0 m	1 kN/m
Support spacing 2.5 m	0,5 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	11800 mm²
Usable cross-section	118 cm²
Wide-span version	no
Width	200 mm
Width	8 in
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 615 FT	3000 mm	150 mm	1 mm	no	Steel	Hot-dip galvanised	6055559	m	3 m
MKS 620 FT	3000 mm	200 mm	1 mm	no	Steel	Hot-dip galvanised	6055575	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	RLVK 60 FT	6067603	piece	10 piece
Cover with turn buckle FT	DRL 200 FT	6051367	m	3 m
45° bend 60 FT	RB 45 620 FT	6036134	piece	1 piece
90° bend 60 FT	RB 90 620 FT	6036594	piece	1 piece
Bend, angle-adjustable, 60 FT	RB W 620 FT	6037124	piece	1 piece
Add-on tee 60 FT	RAA 620 FT	6042215	piece	1 piece
T piece 60 FT	RT 620 FT	6038134	piece	1 piece
Cross-over 60 FT	RK 620 FT	7027413	piece	1 piece
Cover with turn buckle DD	DRL 200 DD	6052709	m	3 m
Barrier strip 60 DD	TSG 60 DD	6062327	m	3 m
