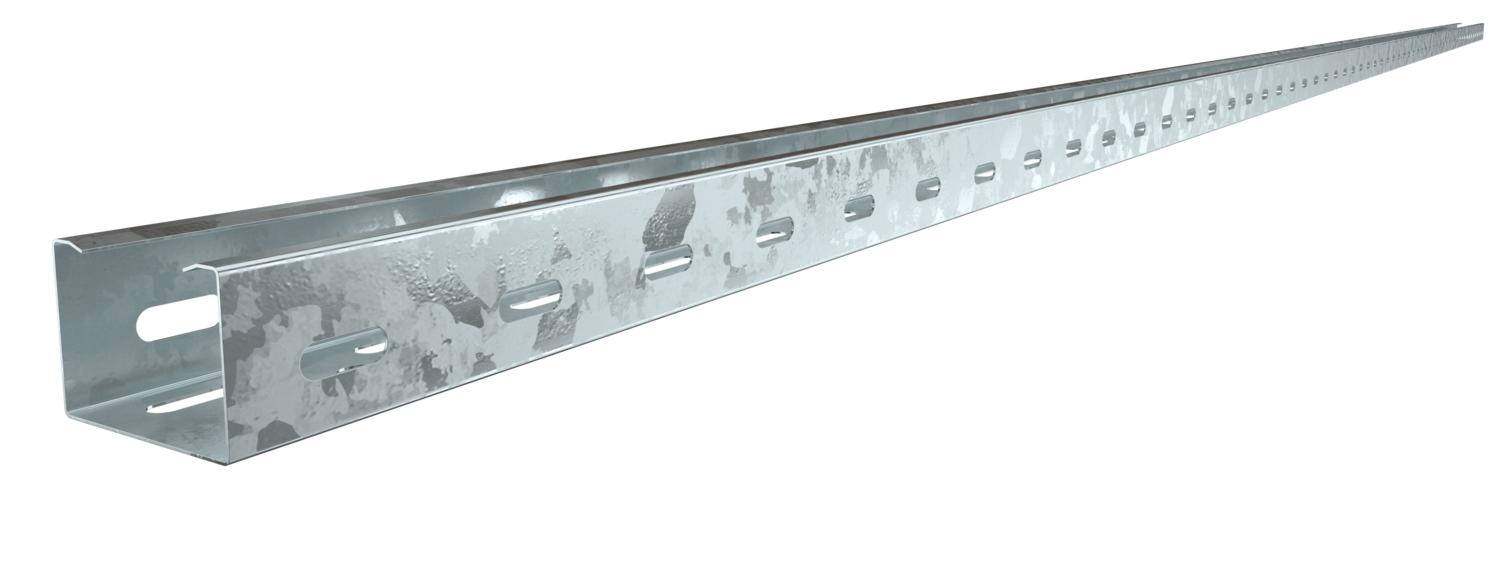

Cable tray RKS 35 FT

Item no. 6047412 | EAN 4012196662142

6047412 / RKS 305 FT
3000 mm
50 mm
0.75 mm
no
Steel
Hot-dip galvanised
Product description

Product description

RKS 35 = Rational cable tray system with 35 mm side height.
Matching cover with turn buckle: Type AZDMD 50
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

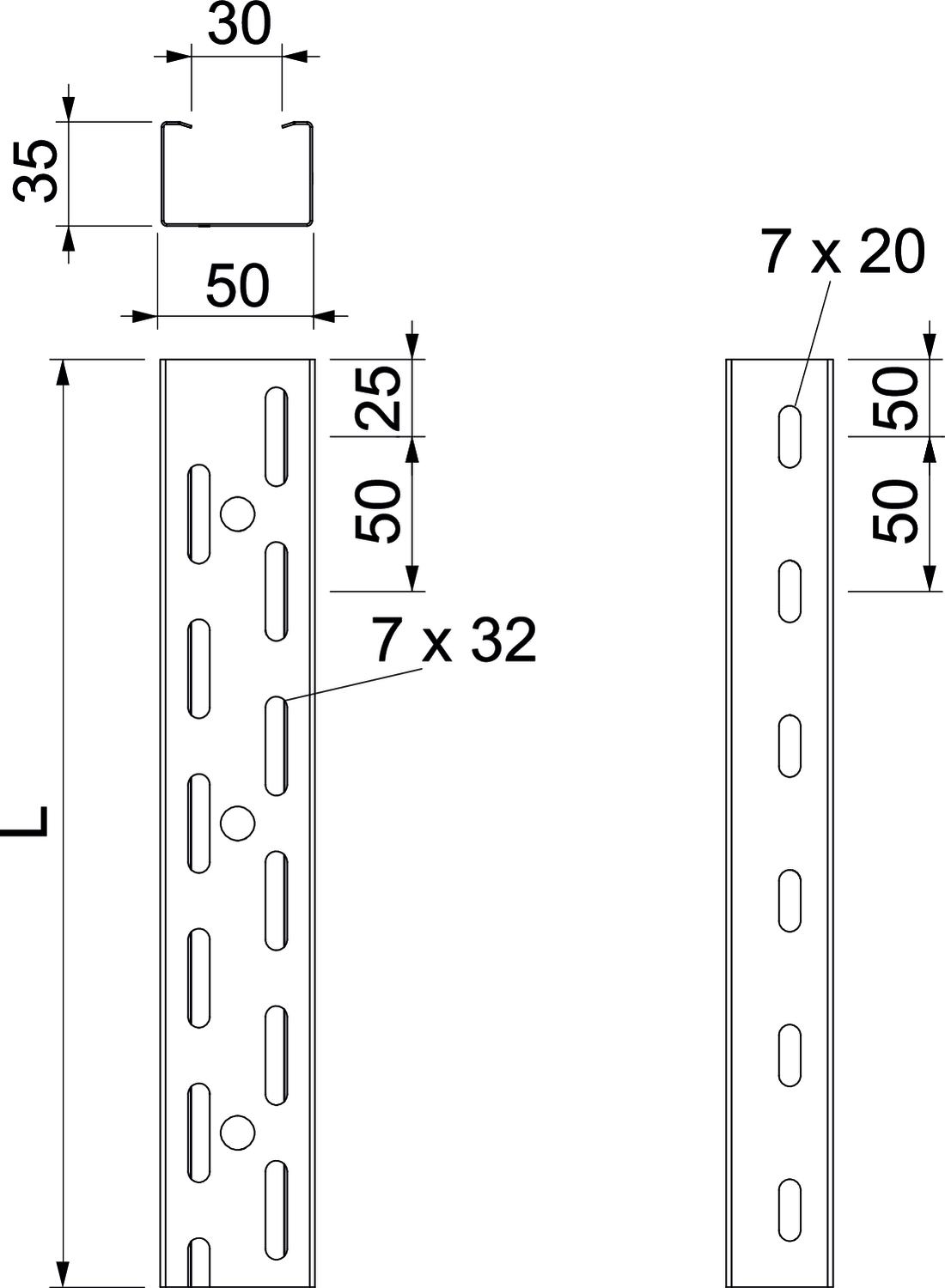

Base perforation 7 x 32
Connector version Without connectors
Dimension 35x50x3000
Dimension 35x50
Dimension L 3000 mm
Height 35 mm
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 0,75 mm
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.0 m 1,2 kN/m
Support spacing 1.5 m 0,5 kN/m
Support spacing 2.0 m 0,3 kN/m
Support spacing 2.5 m 0,1 kN/m
Support spacing 3.0 m 0,05 kN/m
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Usable cross-section 16 cm²
Usable cross-section 1600 mm²
Wide-span version no
Width 50 mm
With cover no

Technical data

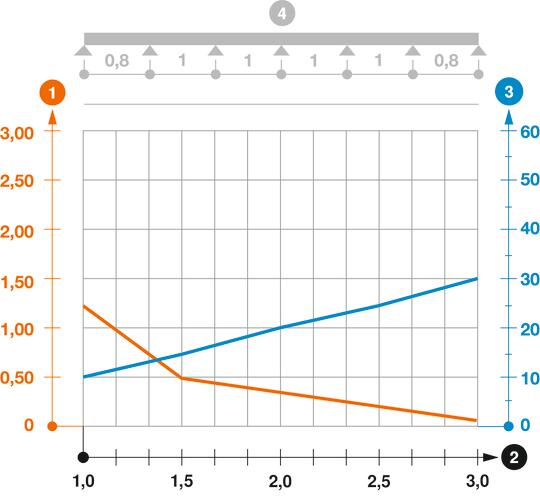

Load diagram, cable tray, type RKS 35

Load diagram, cable tray, type RKS 35
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
RKS 305 FT 3000 mm 50 mm 0.75 mm no Steel Hot-dip galvanised 6047412
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
90° bend 35 FT 90° bend 35 FT RB 90 305 FT 7124410
1 piece
Add-on tee 35 FT Add-on tee 35 FT RAA 305 FT 7120458
1 piece
Downloads

Download
Download

RKS 305 FT / 6047412
