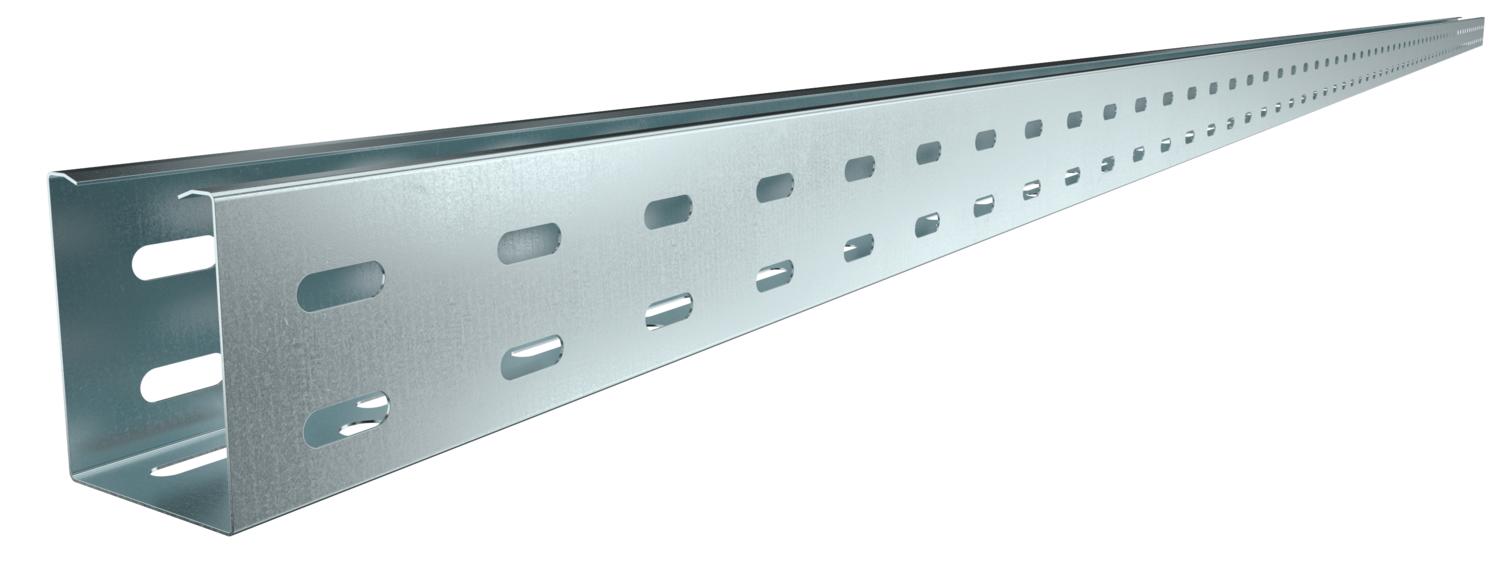

Cable tray RKS 60 FS perforated

Item no. 6047600 | EAN 4012196662159

6047600 / RKS 605 FS
3000 mm
50 mm
0.75 mm
no
Steel
Strip galvanized
Product description

Product description

RKS 60 = Rational cable tray system with 60 mm side height (unbeaded base plate).
Matching cover with turn buckle: Type AZDMD 50
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Base perforation 7 x 32
Connector version Without connectors
Dimension 60x50x3000
Dimension 60x50
Dimension L 3000 mm
Height 60 mm
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 0,75 mm
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.0 m 2 kN/m
Support spacing 1.5 m 0,8 kN/m
Support spacing 2.0 m 0,5 kN/m
Support spacing 2.5 m 0,35 kN/m
Support spacing 3.0 m 0,15 kN/m
Surface Strip galvanized
Type of connector, cable support system Screwed
Usable cross-section 3000 mm²
Usable cross-section 30 cm²
Wide-span version no
Width 50 mm
With cover no

Technical data

Load diagram, cable tray, type RKS 60, unbeaded

Load diagram, cable tray, type RKS 60, unbeaded
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
RKS 605 FS 3000 mm 50 mm 0.75 mm no Steel Strip galvanized 6047600
3 m
