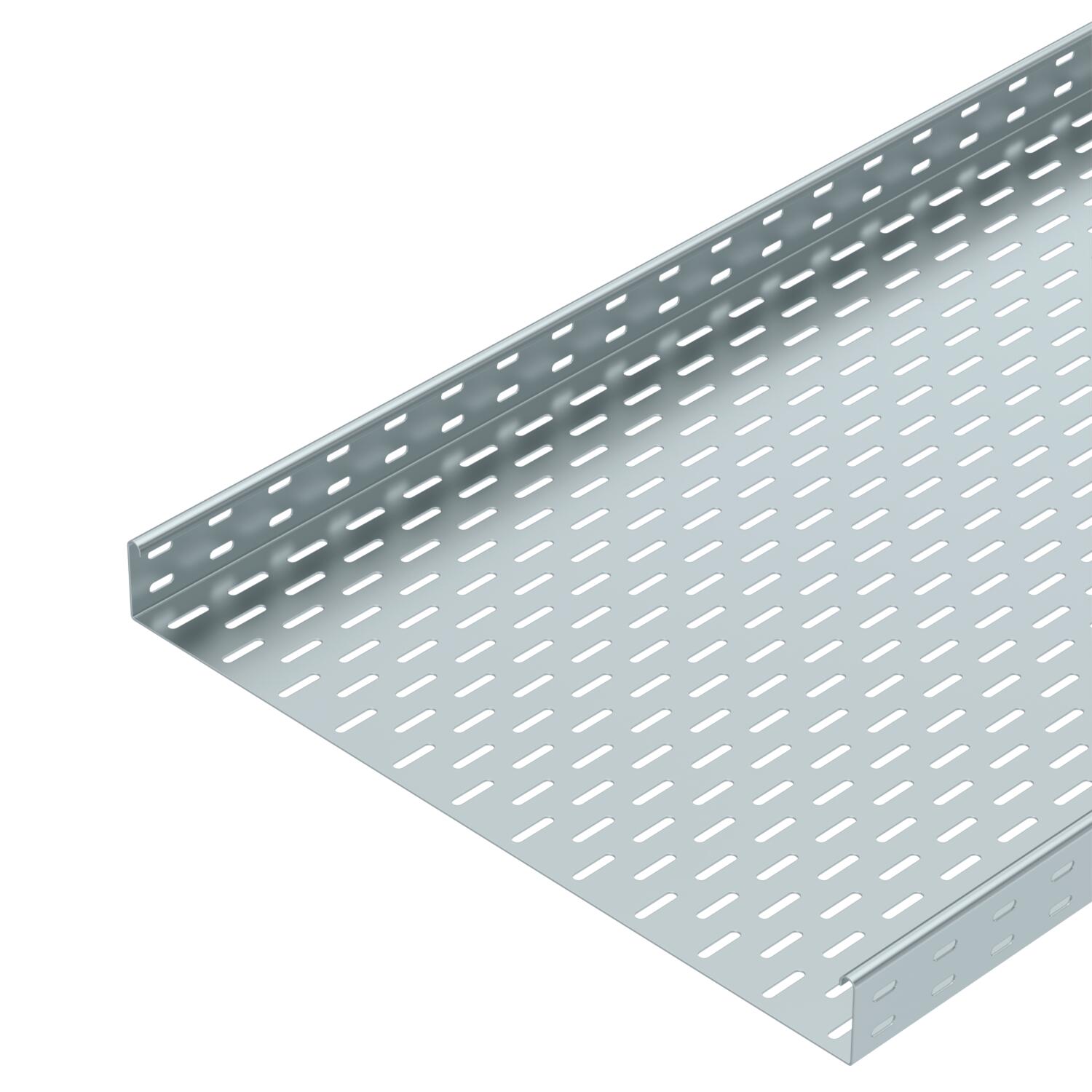

Cable tray SKS 60 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions

Material	Steel

Surface	Strip galvanized

Product description

Product description

SKS 60 = heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Base perforation	7 x 32
Colour	zinc
Connector version	Supplied connectors
CO₂ Footprint (GWP) Cradle-to-Gate	20,566 kg CO₂e / 1 Meter
Dimension	60x600x3000
Dimension	60 x 600
Dimension B	600 mm
Height	60 mm
Height	2 in
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	600 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Plate thickness	1,5 mm
Plate thickness	0,06 in
Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	Straight connector RLVL 60
Support spacing 1.5 m	2,65 kN/m
Support spacing 2.0 m	1,8 kN/m
Support spacing 2.5 m	1,15 kN/m
Support spacing 3.0 m	0,5 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	358 cm²
Usable cross-section	35800 mm²
Wide-span version	no
Width	24 in
Width	600 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 610 FS	3000 mm	100 mm	1.5 mm	yes	Steel	Strip galvanized	6056105	m	3 m
SKS 620 FS	3000 mm	200 mm	1.5 mm	yes	Steel	Strip galvanized	6056202	m	3 m
SKS 630 FS	3000 mm	300 mm	1.5 mm	yes	Steel	Strip galvanized	6056296	m	3 m
SKS 640 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6056407	m	3 m
SKS 650 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6056504	m	3 m
SKS 660 FS	3000 mm	600 mm	1.5 mm	no	Steel	Strip galvanized	6056601	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Joint plate FS	SSLB 600 FS	7070233	piece	20 piece
45° bend 60 FS	RB 45 660 FS	6036113	piece	1 piece
90° bend 60 FS	RB 90 660 FS	6036572	piece	1 piece
Bend, angle-adjustable, 60 FS	RB W 660 FS	6037112	piece	1 piece
Add-on tee 60 FS	RAA 660 FS	6042123	piece	1 piece
T piece 60 FS	RT 660 FS	6038112	piece	1 piece
Cross-over 60 FS	RK 660 FS	7027321	piece	1 piece
Cover with turn buckle FS	DRL 600 FS	6052606	m	3 m
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m
