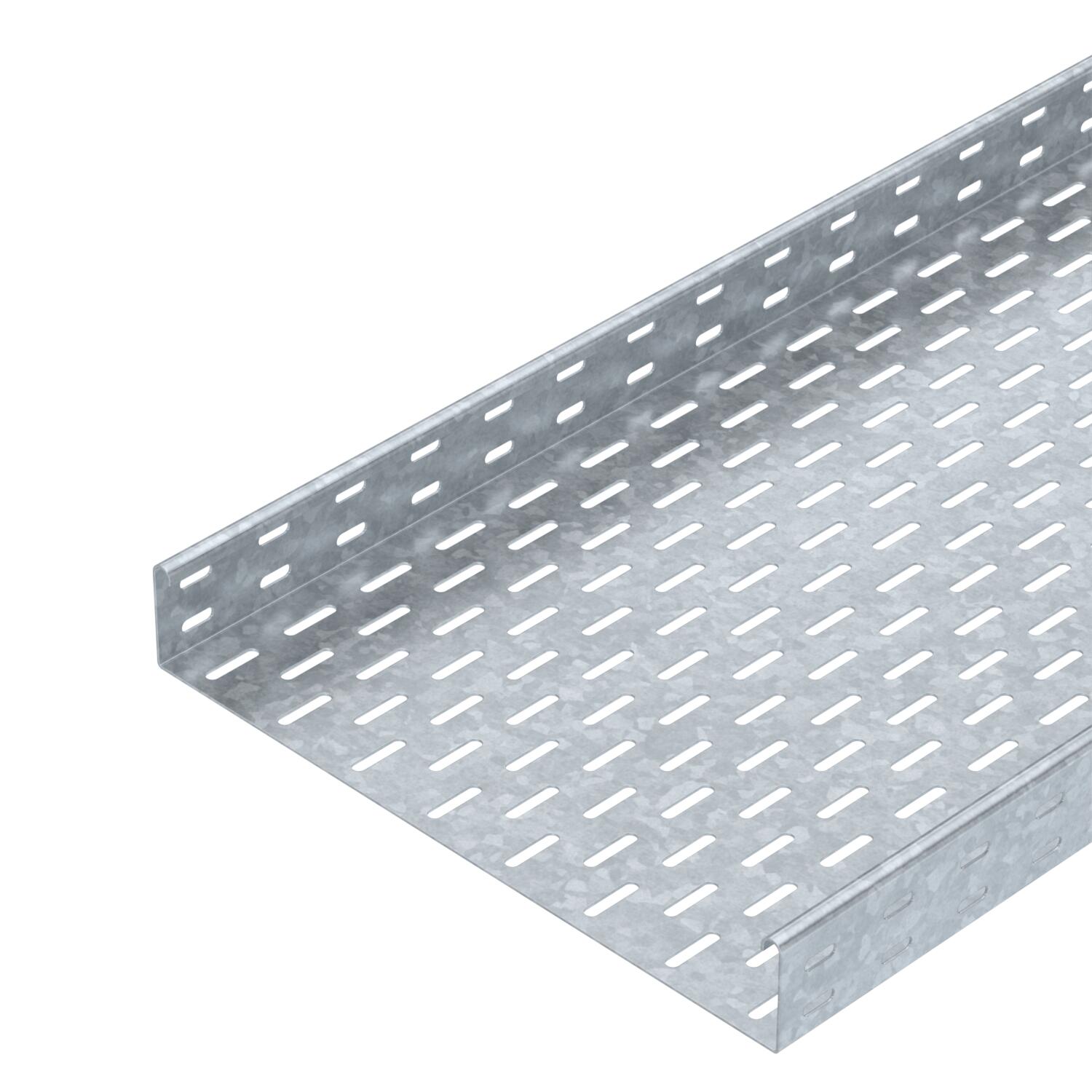

Cable tray SKS 60 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

SKS 60 = Heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	14,144 kg CO₂e / 1 Meter
Dimension	60 x 400
Dimension	60x400x3000
Dimension B	400 mm
Height	2 in
Height	60 mm
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	400 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Plate thickness	1,5 mm
Plate thickness	0,06 in
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.5 m	2,65 kN/m
Support spacing 2.0 m	1,8 kN/m
Support spacing 2.5 m	1,15 kN/m
Support spacing 3.0 m	0,5 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	238 cm²
Usable cross-section	23800 mm²
Wide-span version	no
Width	16 in
Width	400 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 610 FT	3000 mm	100 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6056636	m	3 m
SKS 615 FT	3000 mm	150 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6056644	m	3 m
SKS 620 FT	3000 mm	200 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6056652	m	3 m
SKS 630 FT	3000 mm	300 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6056679	m	3 m
SKS 640 FT	3000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6056695	m	3 m
SKS 650 FT	3000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6056717	m	3 m
SKS 660 FT	3000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised	6056733	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	RLVK 60 FT	6067603	piece	10 piece
45° bend 60 FT	RB 45 640 FT	6036138	piece	1 piece
90° bend 60 FT	RB 90 640 FT	6036598	piece	1 piece
Bend, angle-adjustable, 60 FT	RB W 640 FT	6037128	piece	1 piece
Add-on tee 60 FT	RAA 640 FT	6042219	piece	1 piece
T piece 60 FT	RT 640 FT	6038138	piece	1 piece
Cross-over 60 FT	RK 640 FT	7027417	piece	1 piece
Cover with turn buckle DD	DRL 400 DD	6052715	m	3 m
Barrier strip 60 DD	TSG 60 DD	6062327	m	3 m
