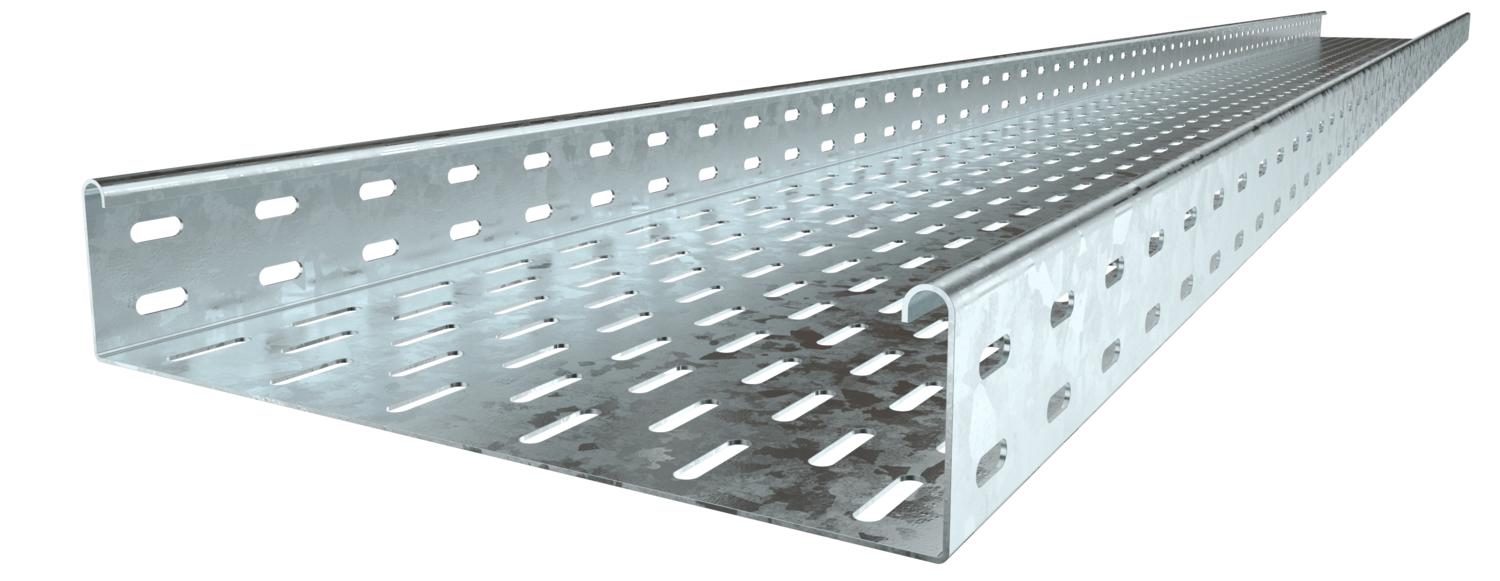

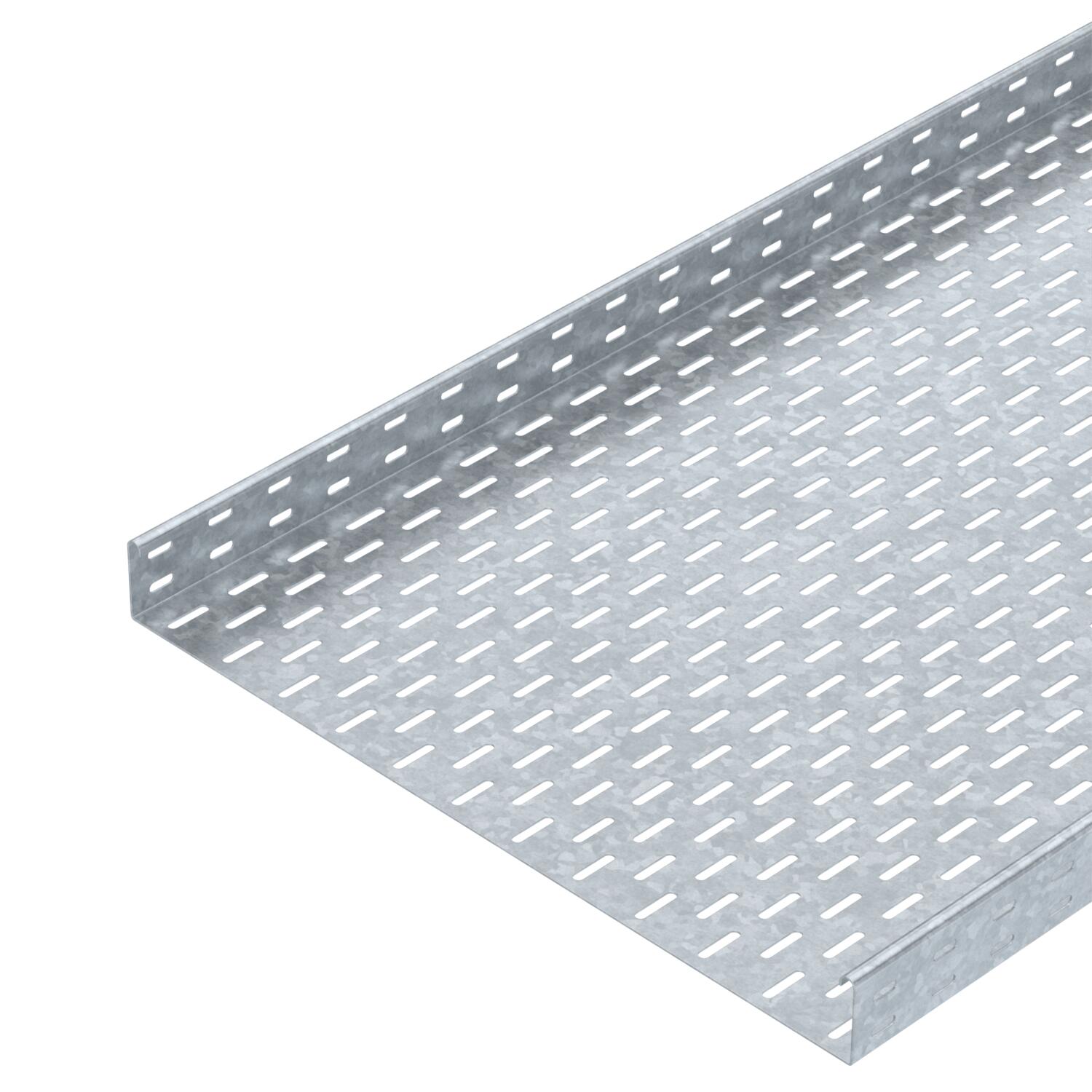

Cable tray SKS 60 FT

Item no. 6056733 | EAN 4012196060672

3000 mm
1.5 mm
Steel
Hot-dip galvanised
Product description

Product description

SKS 60 = Heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Connector version Without connectors
Dimension 60x600x3000
Dimension 60 x 600
Dimension B 600 mm
Height 2 in
Height 60 mm
Length 10 ft
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 0,06 in
Plate thickness 1,5 mm
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.5 m 2,65 kN/m
Support spacing 2.0 m 1,8 kN/m
Support spacing 2.5 m 1,15 kN/m
Support spacing 3.0 m 0,5 kN/m
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Usable cross-section 35800 mm²
Usable cross-section 358 cm²
Wide-span version no
Width 600 mm
Width 24 in
With cover no

Technical data

Load diagram, cable tray, type SKS 60

Load diagram, cable tray, type SKS 60
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
SKS 610 FT 3000 mm 100 mm 1.5 mm yes Steel Hot-dip galvanised 6056636
3 m
SKS 615 FT 3000 mm 150 mm 1.5 mm yes Steel Hot-dip galvanised 6056644
3 m
SKS 620 FT 3000 mm 200 mm 1.5 mm yes Steel Hot-dip galvanised 6056652
3 m
SKS 630 FT 3000 mm 300 mm 1.5 mm yes Steel Hot-dip galvanised 6056679
3 m
SKS 640 FT 3000 mm 400 mm 1.5 mm no Steel Hot-dip galvanised 6056695
3 m
SKS 650 FT 3000 mm 500 mm 1.5 mm no Steel Hot-dip galvanised 6056717
3 m
SKS 660 FT 3000 mm 600 mm 1.5 mm no Steel Hot-dip galvanised 6056733
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Straight connector FT Straight connector FT RLVK 60 FT 6067603
10 piece
Cover with turn buckle FT Cover with turn buckle FT DRL 600 FT 6051472
3 m
45° bend 60 FT 45° bend 60 FT RB 45 660 FT 6036142
1 piece
90° bend 60 FT 90° bend 60 FT RB 90 660 FT 6036602
1 piece
Bend, angle-adjustable, 60 FT Bend, angle-adjustable, 60 FT RB W 660 FT 6037132
1 piece
Add-on tee 60 FT Add-on tee 60 FT RAA 660 FT 6042223
1 piece
T piece 60 FT T piece 60 FT RT 660 FT 6038142
1 piece
Cross-over 60 FT Cross-over 60 FT RK 660 FT 7027421
1 piece
Cover with turn buckle DD Cover with turn buckle DD DRL 600 DD 6052724
3 m
Barrier strip 60 DD Barrier strip 60 DD TSG 60 DD 6062327
3 m
