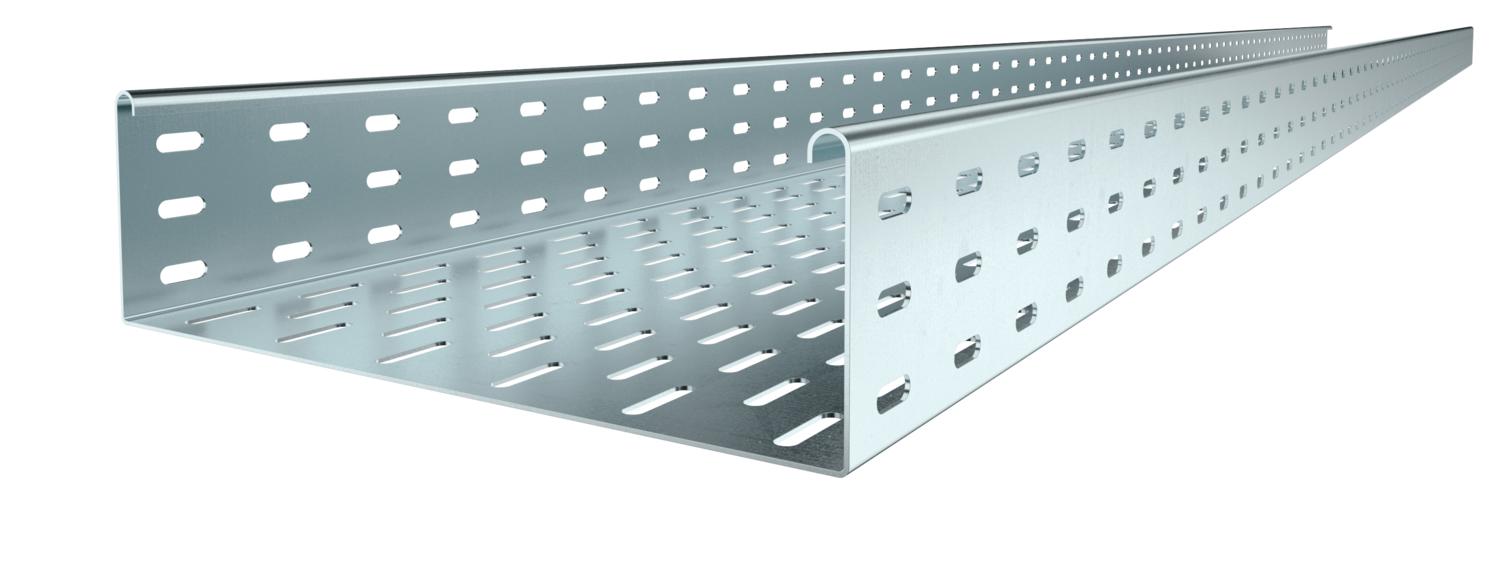

Cable tray SKS 85 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

SKS 85 = heavy-duty cable tray system with 85 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Supplied connectors
CO₂ Footprint (GWP) Cradle-to-Gate	8,483 kg CO₂e / 1 Meter
Dimension	85x100x3000
Dimension	85 x 100
Dimension B	100 mm
Height	85 mm
Height	3 in
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	100 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1,5 mm

Plate thickness	0,6 in
Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	RLVL 85 straight connector
Support spacing 1.5 m	2,8 kN/m
Support spacing 2.0 m	2,25 kN/m
Support spacing 2.5 m	1,5 kN/m
Support spacing 3.0 m	0,75 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	8300 mm²
Usable cross-section	83 cm²
Wide-span version	no
Width	4 in
Width	100 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 810 FS	3000 mm	100 mm	1.5 mm	no	Steel	Strip galvanized	6058108	m	3 m
SKS 820 FS	3000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6058205	m	3 m
SKS 830 FS	3000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6058302	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU

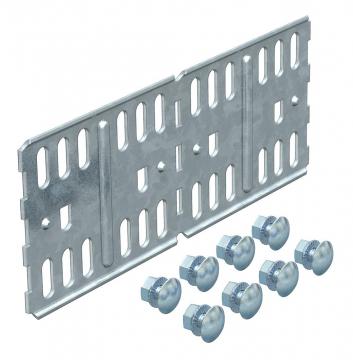

Straight and angle connector	RLVL 85 FS	6067123	piece	10 piece
Joint plate FS	SSLB 100 FS	7070205	piece	20 piece
Cross-over 85 FS	RK 810 FS	7027331	piece	1 piece
Cover with turn buckle FS	DRL 100 FS	6052096	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
