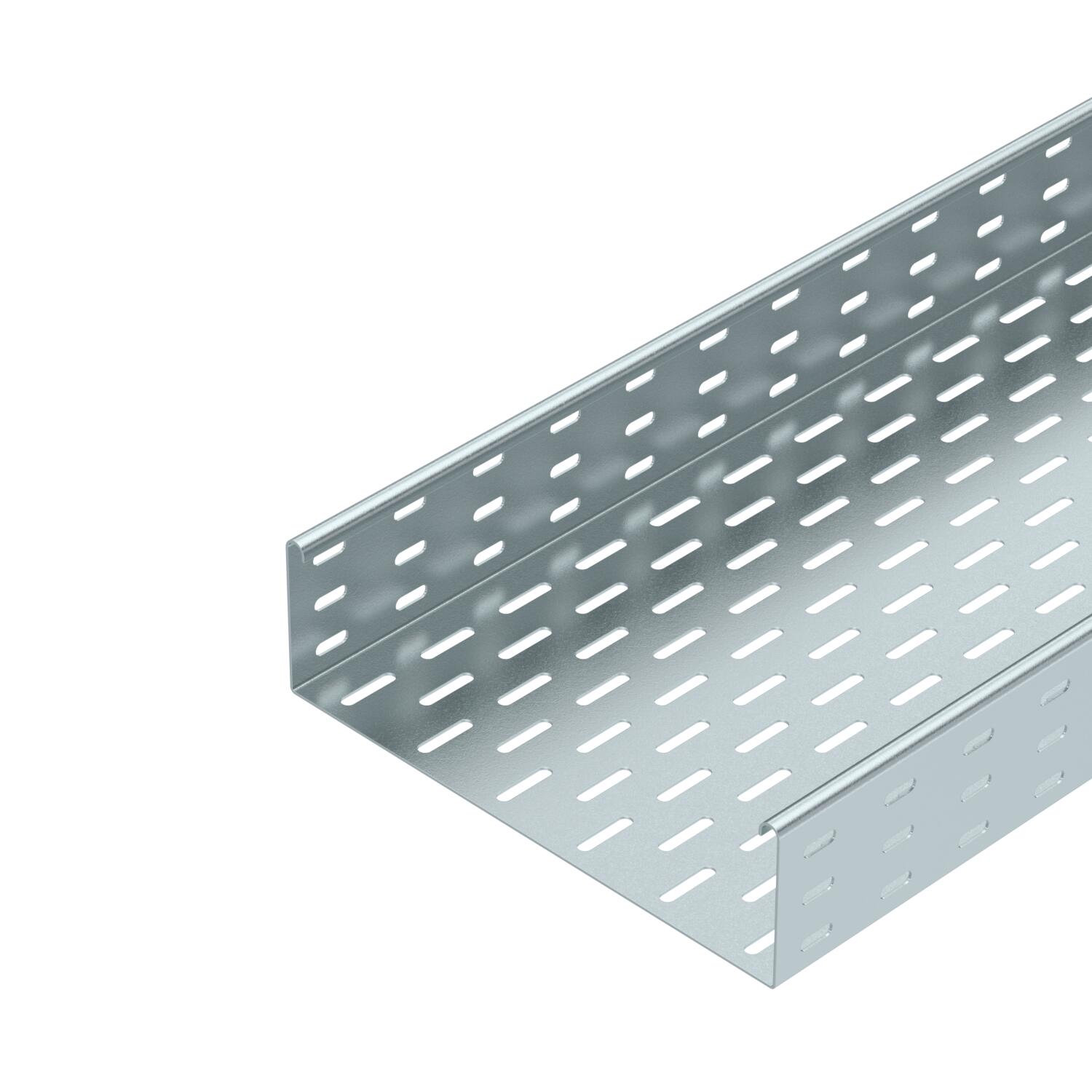

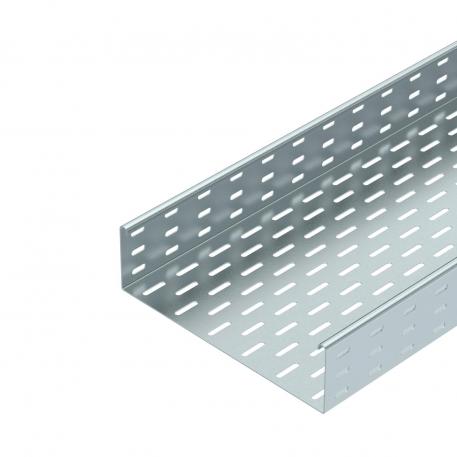

Cable tray SKS 85 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

SKS 85 = heavy-duty cable tray system with 85 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Supplied connectors
CO₂ Footprint (GWP) Cradle-to-Gate	13,917 kg CO₂e / 1 Meter
Dimension	85x300x3000
Dimension	85 x 300
Dimension B	300 mm
Height	85 mm
Height	3 in
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	300 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1,5 mm

Plate thickness	0,6 in
Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	RLVL 85 straight connector
Support spacing 1.5 m	2,8 kN/m
Support spacing 2.0 m	2,25 kN/m
Support spacing 2.5 m	1,5 kN/m
Support spacing 3.0 m	0,75 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	253 cm²
Usable cross-section	25300 mm²
Wide-span version	no
Width	12 in
Width	300 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 810 FS	3000 mm	100 mm	1.5 mm	no	Steel	Strip galvanized	6058108	m	3 m
SKS 820 FS	3000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6058205	m	3 m
SKS 830 FS	3000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6058302	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight and angle connector	RLVL 85 FS	6067123	piece	10 piece
Joint plate FS	SSLB 300 FS	7070217	piece	20 piece
Cross-over 85 FS	RK 830 FS	7027335	piece	1 piece
Cover with turn buckle FS	DRL 300 FS	6052304	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
45° bend 85 FS	RB 45 830 FS	7000510	piece	1 piece
90° bend 85 FS	RB 90 830 FS	7001800	piece	1 piece
