Cap nut cable gland, EMC, metric thread, nickel-plated | | M50 x 1,5 | no |

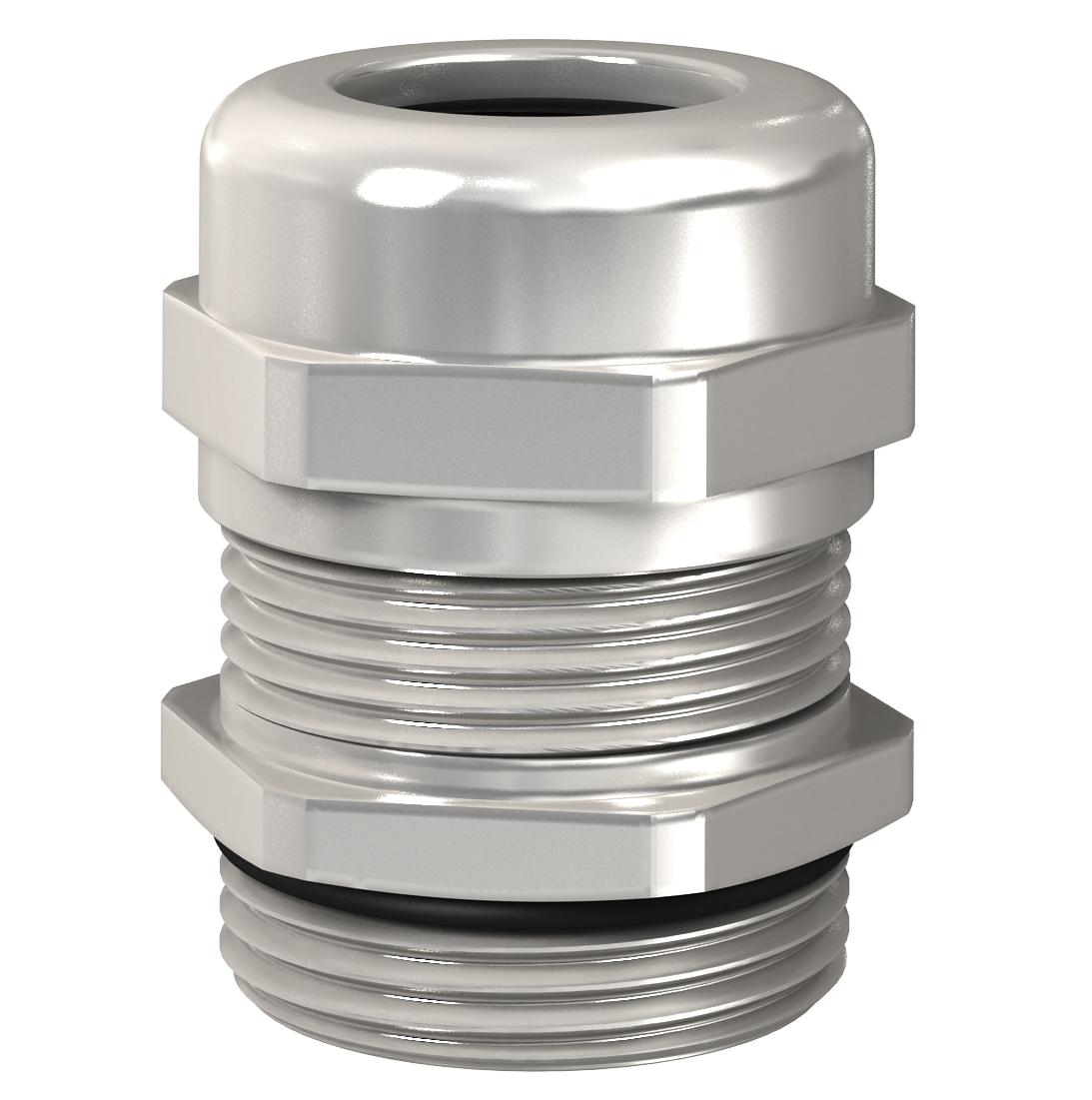

Cap nut cable gland, EMC, metric thread, nickel-plated

Item no. 2086227 | EAN 4012195655626

Item no. / Types

Thread

Sealing insert, multiple	no

Product description

Product description

With metric connecting thread to IEC 423, robust EMV cap-nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP 68 at 5 bar for 1 hr.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no
Dimension	M50
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
Halogen-free	no
Impact-resistant	no
Material	Brass
Permitted temperature range, max.	100 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	35 mm

Sealing area D, min.	24 mm
Sealing insert, multiple	no
Strain relief option	yes
Surface	Nickel-plated
Thread	M50 x 1,5
Thread length	9 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	13,5 Nm
Version for	Straight
WAF	55
With locknut	no

Dimensions

Dimension E	60 mm
Dimension L max.	49,5 mm
Dimension L1	9 mm

Dimension L2	4,5 mm
Dimension L3	25 mm

All types

All types

Types	Thread	Sealing insert, multiple	Item no.	Quantity	SSU
V-TEC VM12 EMV	M12 x 1,5	no	2086203	piece	50 piece
V-TEC VM16 EMV	M16 x 1,5	no	2086207	piece	50 piece
V-TEC VM20 EMV	M20 x 1,5	no	2086211	piece	25 piece
V-TEC VM25 EMV	M25 x 1,5	no	2086215	piece	25 piece
V-TEC VM32 EMV	M32 x 1,5	no	2086219	piece	20 piece
V-TEC VM40 EMV	M40 x 1,5	no	2086223	piece	5 piece
V-TEC VM50 EMV	M50 x 1,5	no	2086227	piece	5 piece
V-TEC VM63 EMV	M63 x 1,5	no	2086231	piece	5 piece
