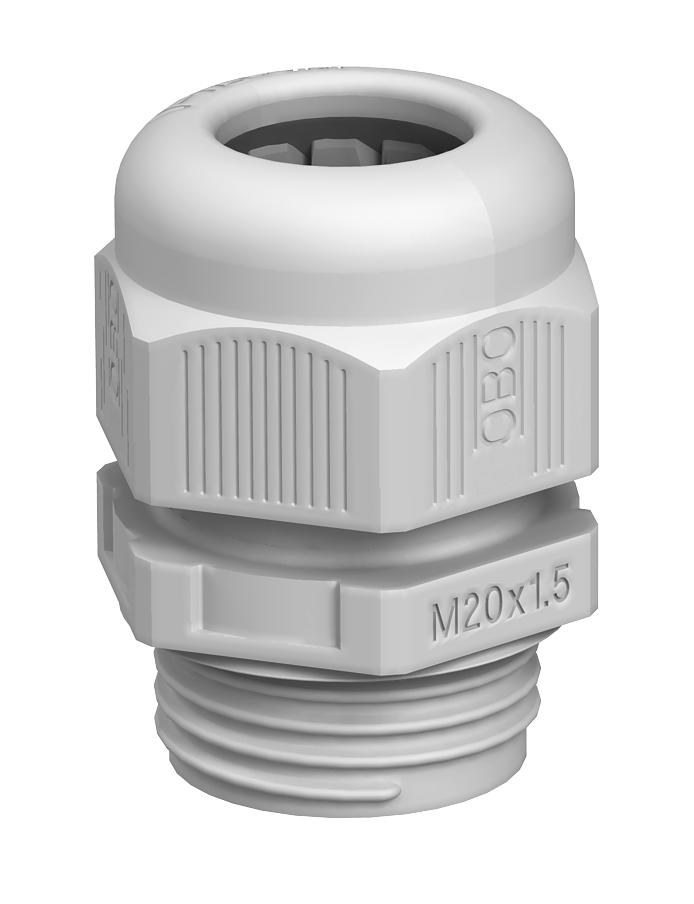

Cap nut cable gland, metric thread, silver grey
Item no. 2022847 | EAN 4012195532750
- Product description
-
Product description
The quickest and most convenient way of providing strain relief and tightness with cable glands on junction boxes and housings is with the tried-and-trusted V-TEC VM cable glands from OBO. With the integrated sealing lip and the special OBO lamella technology, protection class IP68 is achieved. Strain relief and tightness have been tested to DIN EN 62444.
The connecting threads of the cable glands are metric or PG and are therefore suitable for universal use. Once screwed in place, the installation is there forever, as the optimum thread adjustment with the right pitch ensures permanent resistance to shaking.
Applications: From private housing with junction boxes up to industrial applications in the distributor cabinet.
Temperature range: –20 °C to +65 °C.
-
- Technical data
-
Technical data
Bend protection no Colour Silver grey; RAL 7001 Dimension M20 explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 27 mm Impact-resistant no Material Polyamide Nominal thread size 20 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 13 mm Sealing area D, min. 6 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M20 x 1,5 Thread increase 1,5 mm Thread length 9 mm Thread type Metric Type of seal Sealing ring Unstable torque 3,8 Nm Version for Straight WAF 24 With locknut no Dimensions

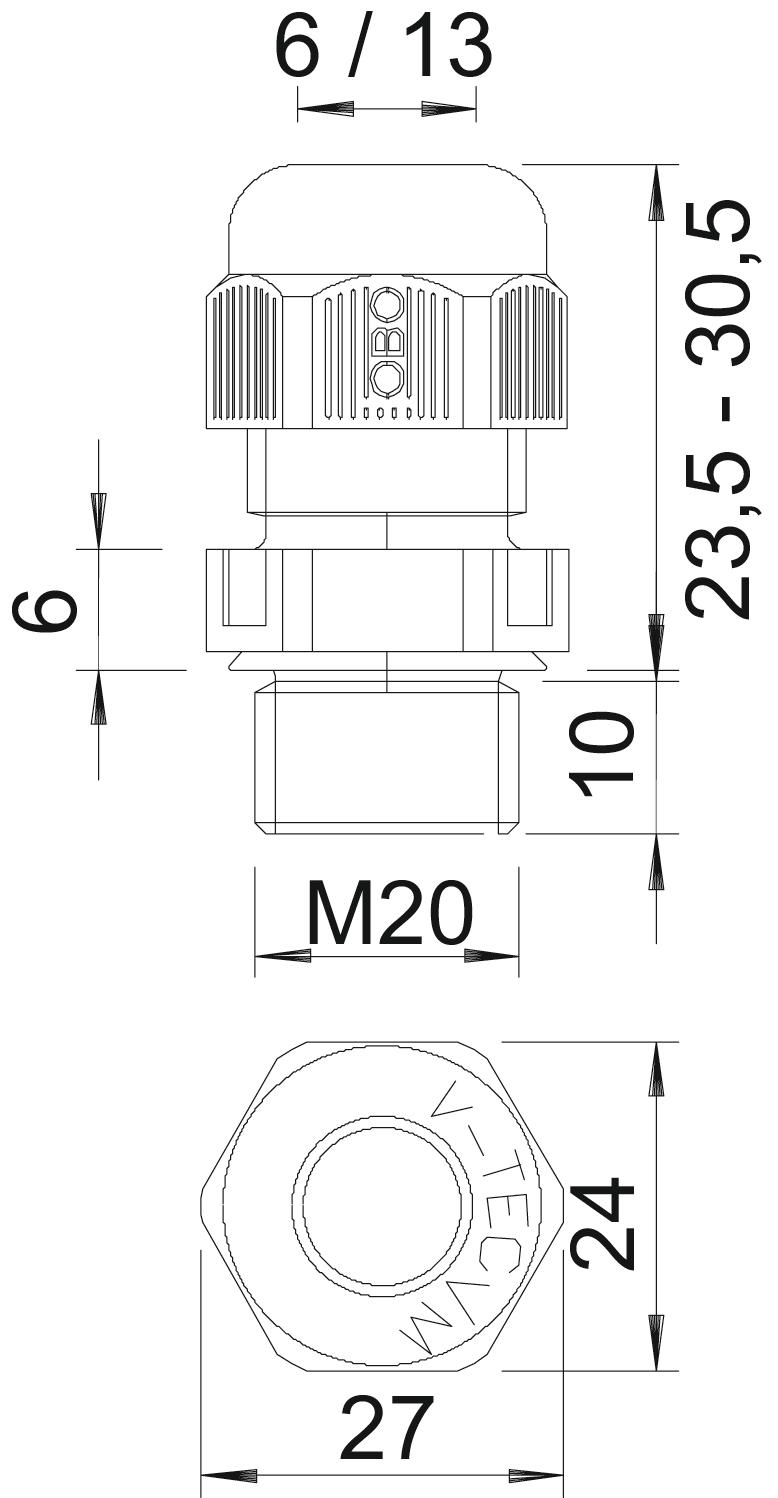

Dimension E 27 mm Dimension L max. 30,5 mm Dimension L min. 23,5 mm Dimension L1 10 mm Dimension L2 6 mm - All types
-
