Cap nut cable gland, metric thread, silver grey, nickel-plated | | M20 x 1,5 | no |

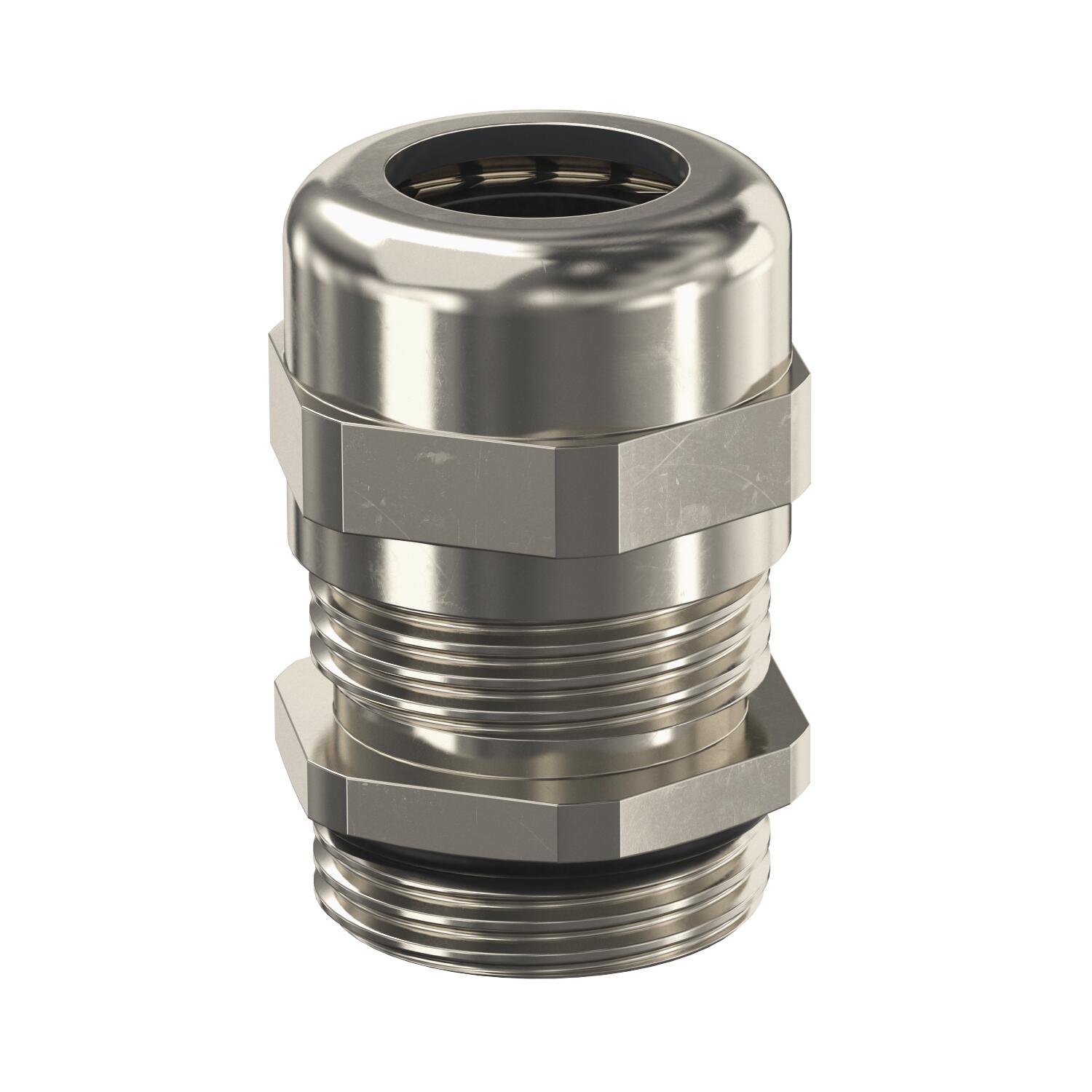

Cap nut cable gland, metric thread, silver grey, nickel-plated

Item no. 2086030 | EAN 4012195809418

Item no. / Types

Thread

Sealing insert, multiple	no

Product description

Product description

With metric connecting thread to IEC 423, robust cap-nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr, max. permitted ambient temperature -20 to +100°C.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no
Dimension	M20
explosion-proof	no
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
Halogen-free	no
Hexagonal corner dimension	24 mm
Impact-resistant	no
Material	Brass
Permitted temperature range, max.	100 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68

Sealing area D, max.	13 mm
Sealing area D, min.	9 mm
Sealing insert, multiple	no
Strain relief option	yes
Surface	Nickel-plated
Thread	M20 x 1,5
Thread length	6 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	3,5 Nm
Version for	Straight
WAF	22
With locknut	no

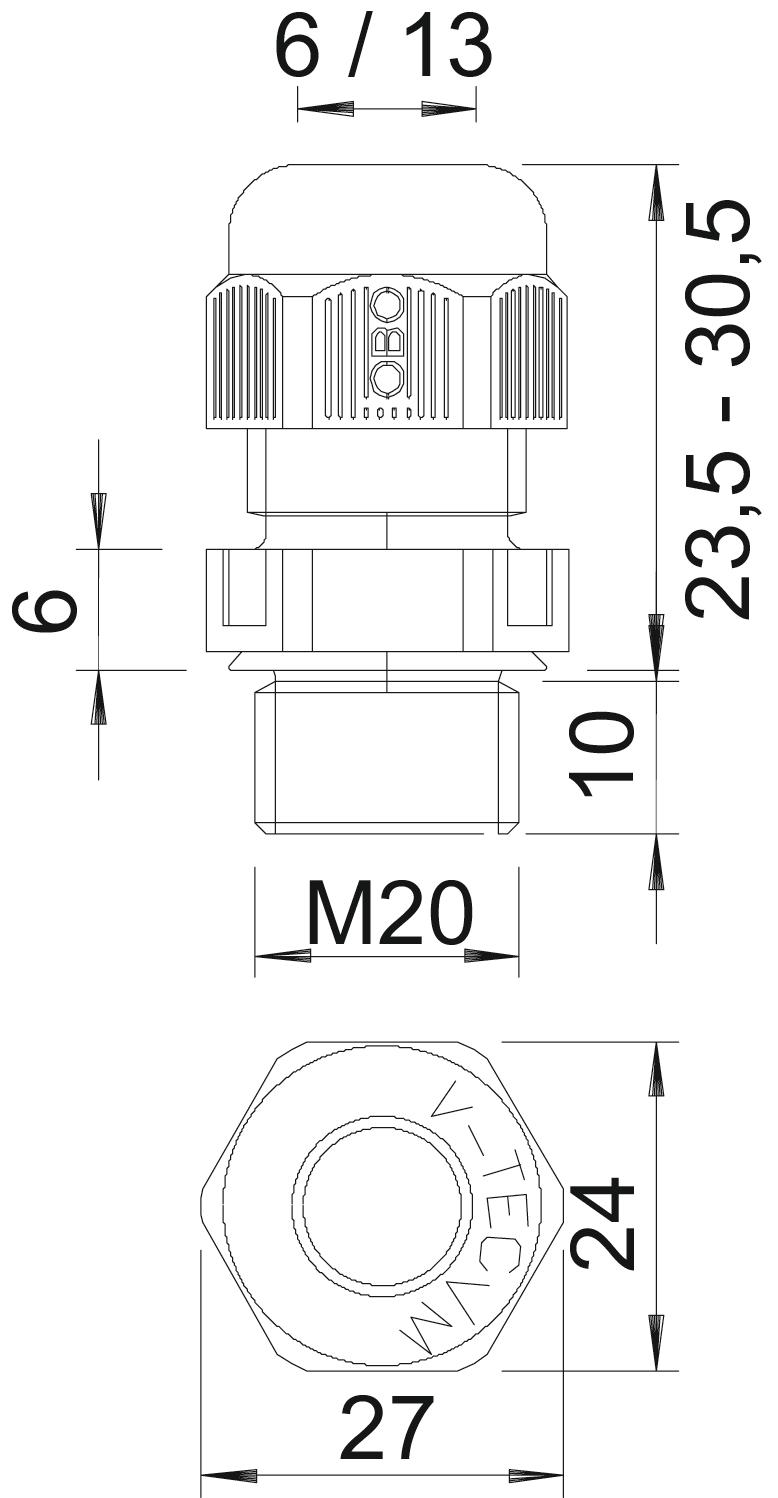

Dimensions

Dimension E	24 mm
Dimension L max.	27 mm
Dimension L1	6 mm

Dimension L2	3,5 mm
Dimension L3	16,5 mm

All types

All types

Types	Thread	Sealing insert, multiple	Item no.	Quantity	SSU
V-TEC VM12 MS	M12 x 1,5	no	2086018	piece	50 piece
V-TEC VM16 MS	M16 x 1,5	no	2086024	piece	50 piece
V-TEC VM20 MS	M20 x 1,5	no	2086030	piece	25 piece
V-TEC VM25 MS	M25 x 1,5	no	2086036	piece	25 piece
V-TEC VM32 MS	M32 x 1,5	no	2086042	piece	20 piece
V-TEC VM40 MS	M40 x 1,5	no	2086048	piece	5 piece
V-TEC VM50 MS	M50 x 1,5	no	2086054	piece	5 piece
V-TEC VM63 MS	M63 x 1,5	no	2086060	piece	5 piece
