- Product description
-
Product description

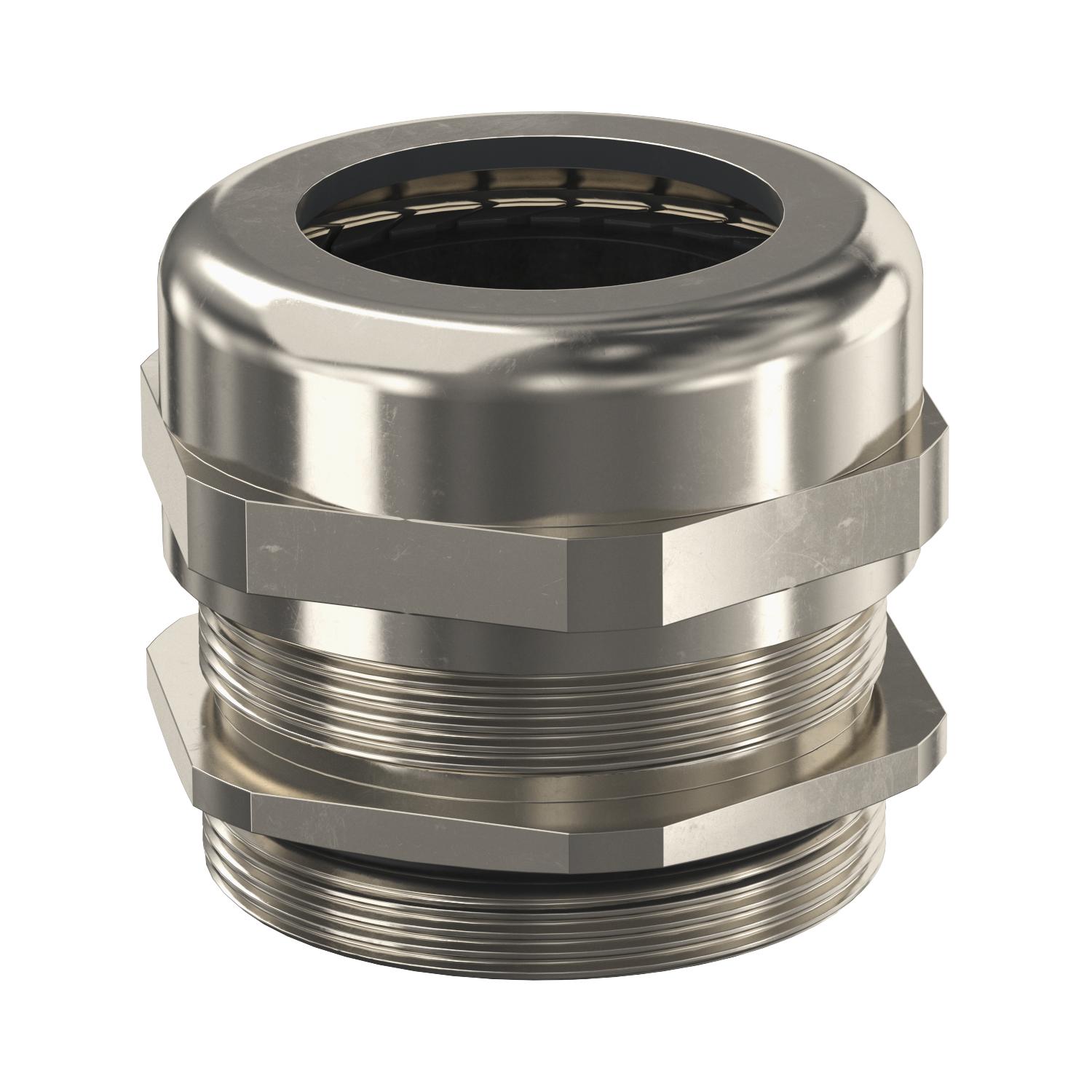

With metric connecting thread to IEC 423, robust cap-nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr, max. permitted ambient temperature -20 to +100°C.
* Prices according to DEL notation.
-
- Technical data
-
Technical data
Bend protection no Dimension M50 explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Hexagonal corner dimension 60 mm Impact-resistant no Material Brass Permitted temperature range, max. 100 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 35 mm Sealing area D, min. 24 mm Sealing insert, multiple no Strain relief option yes Surface Nickel-plated Thread M50 x 1,5 Thread length 9 mm Thread type Metric Type of seal Sealing ring Unstable torque 13,5 Nm Version for Straight WAF 55 With locknut no Dimensions

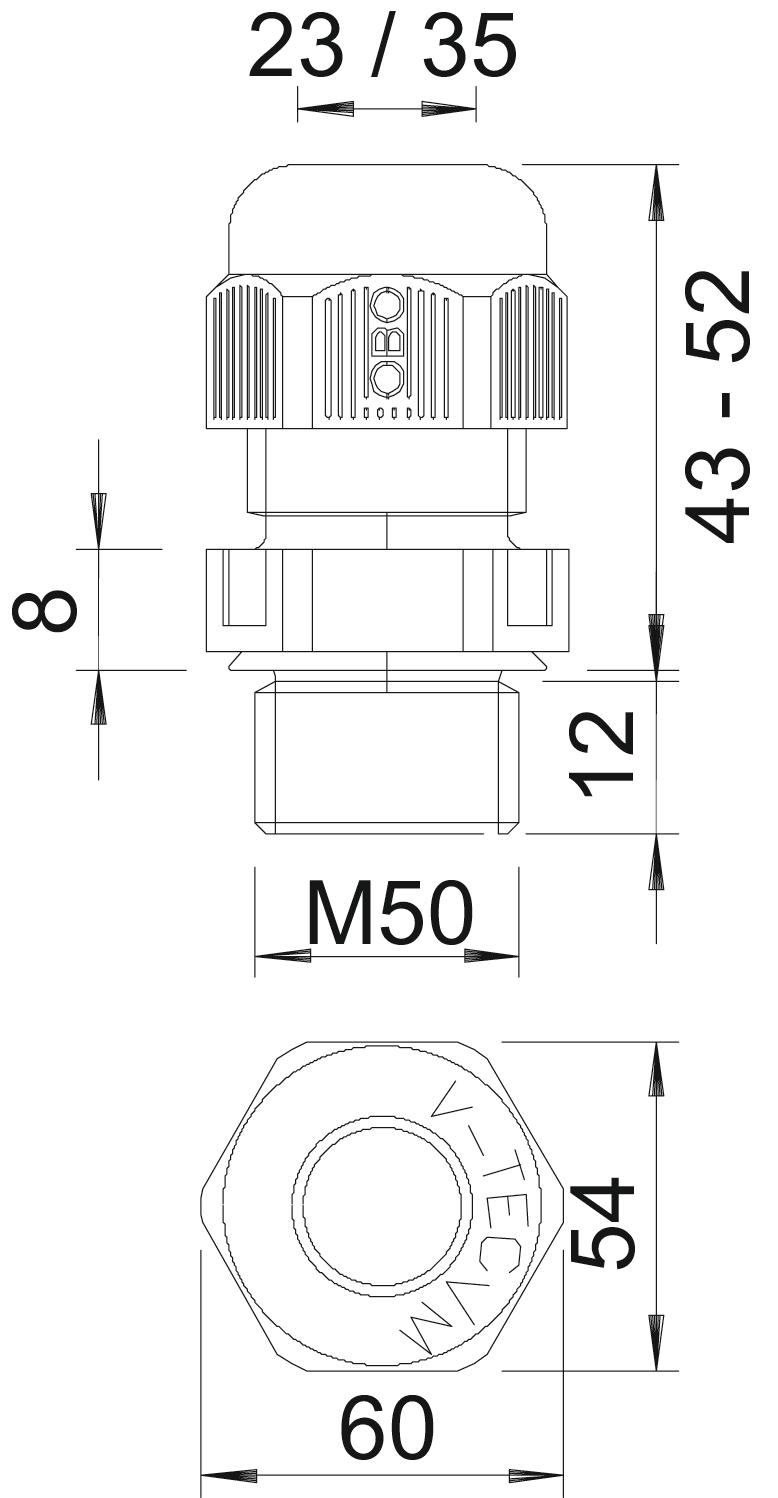

Dimension E 60 mm Dimension L max. 38,5 mm Dimension L1 9 mm Dimension L2 4,5 mm Dimension L3 25 mm - All types
-
All types
- Downloads
-
Data sheet V-TEC VM50 MS / 2086054 , 0.36MB , pdfDeclaration of conformity V-TEC VM50 MS / 2086054 , 0.10MB , pdfDeclaration of conformity Declaration of conformity ,REACH Declaration of conformity V-TEC VM50 MS / 2086054 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM50 MS / 2086054 , 0.12MB , pdf
