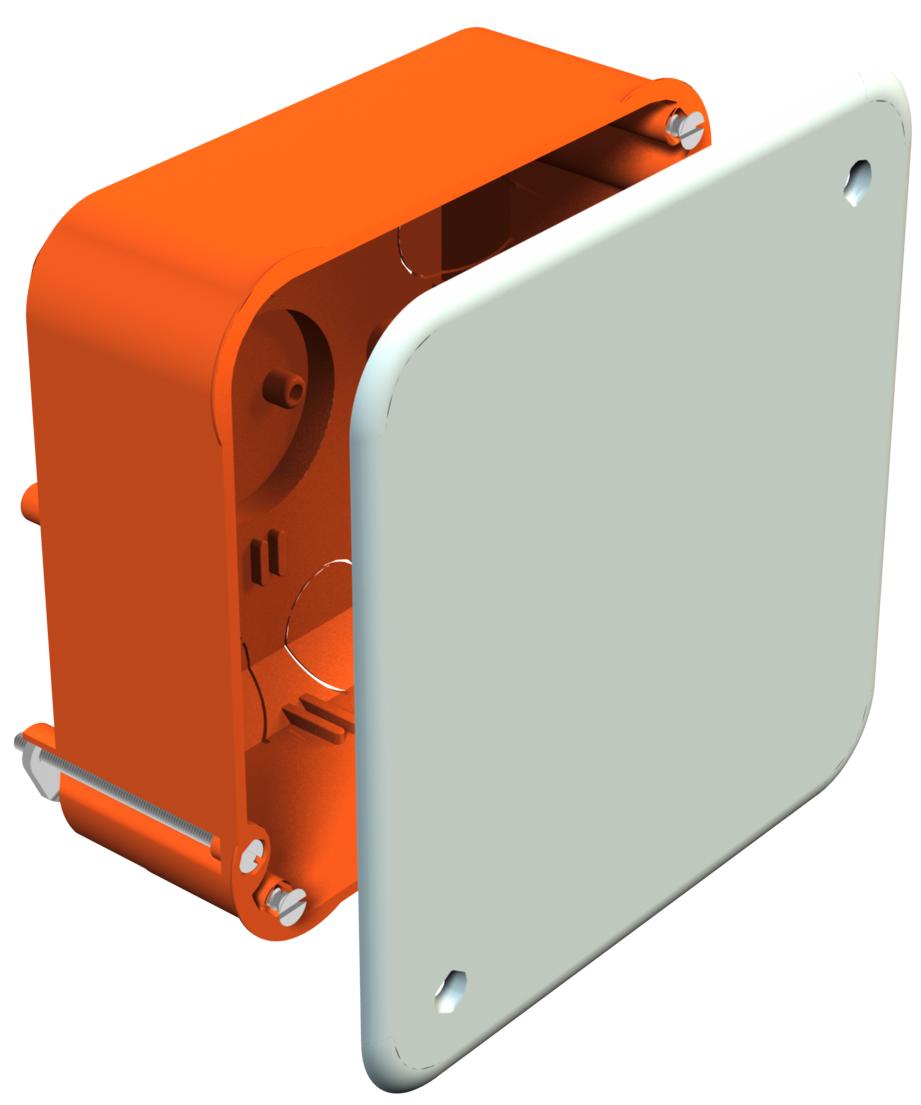

Cavity wall connection box

Item no. 2003449 | EAN 4012195033011

2003449 / HV 100 KD
50 mm
20 mm
20
Product description

Product description

Cavity wall connection box for use in cavity walls with an installation depth of at least 50 mm and a plate thickness of 7-35 mm. With white cover and cover screws. Suitable for installation of standard rails (hat and support rails) for series terminals.

• 8 entries of Ø 20 mm

• 8 entries for NYM cables 3 x 1.5 mm²

• 4 entries for data cables (extra-low voltage)
According to IEC 60670-1, IEC 60670-22 and DIN 49073-1.
  • Flame resistant 850 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Airtight no
Colour Orange
Cover Not transparent
Cover fastening Screwed
Dimension 105x105x50
Entries 20
Entry from rear yes
Equipment Without
Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C
Floor height, min. 50 mm
for pipe diameter 20 mm
Halogen-free yes
Height 50 mm
Impact-resistant no
Length 105 mm
Maintain electrical functions Without
Material Polypropylene
Max. Conductor cross-section 4 mm²
No. of entries 20
Nominal cross-section, max. 4 mm²
Nominal cross-section, min. 2,5 mm²
Protection rating IP30
Rated voltage 400 V
Sealable no
Shape Square
Suitable for plate thickness, max. 35 mm
Suitable for plate thickness, min. 7 mm
Support Without
Type of housing penetration Pre-marking
Type of insertion… NYM cables, data cables and corrugated pipes
Width 105 mm
With bolts yes
With nail strap no
With screening no
All types

All types

Types Height for pipe diameter No. of entries Item no. Quantity SSU
HV 100 KD 50 mm 20 mm 20 2003449
25 piece
