Clamp clip, single, plastic pressure trough, FT 58 | 64 | 5
morepic-1 morepic-2

Clamp clip, single, plastic pressure trough, FT

Item no. 1160648 | EAN 4012195064992

Product description

Product description

Suitable for all C profile rails with slot width 16–17 mm.
Hot-dip galvanised steel clip and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Slot width 16–17 mm

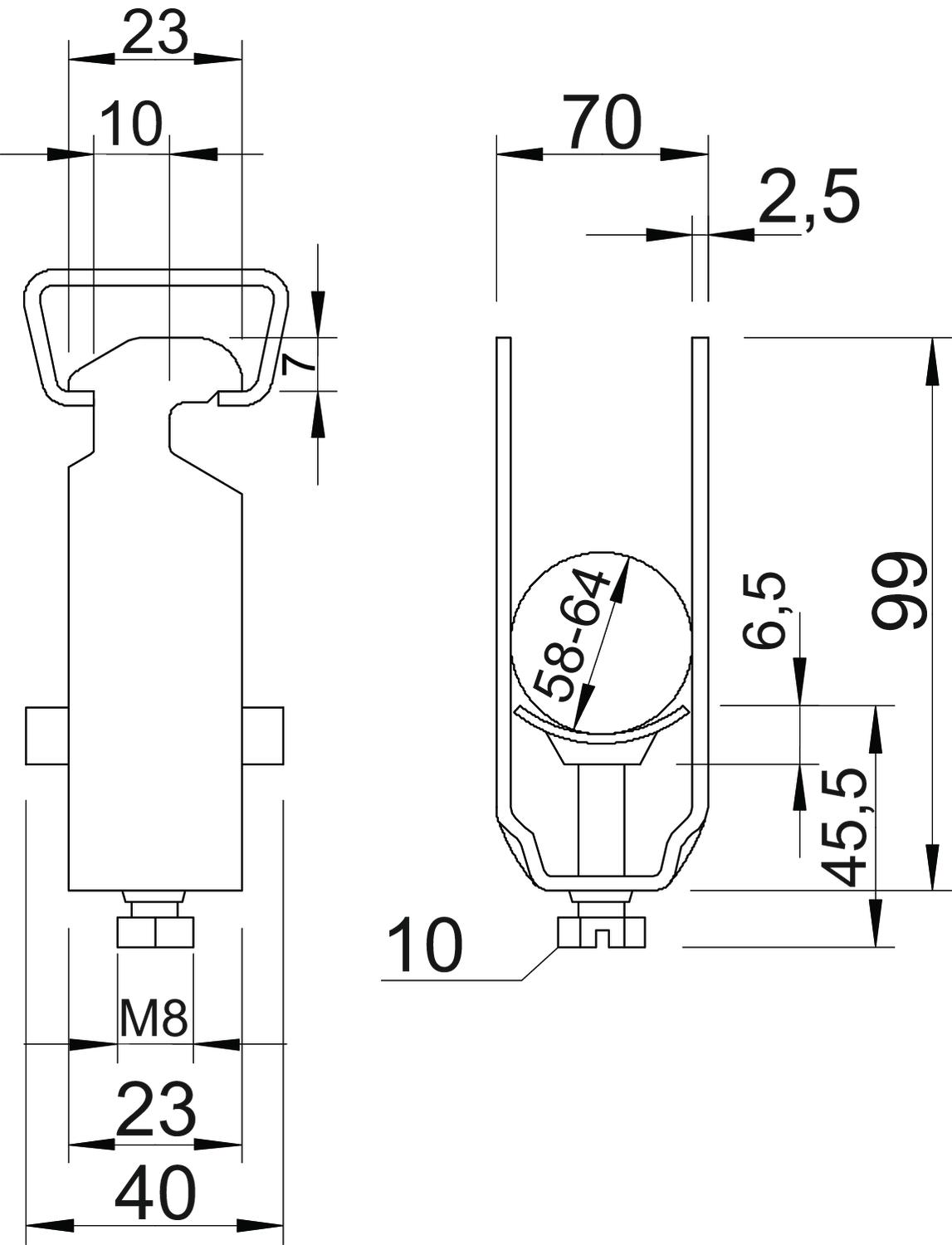

Technical data

Technical data

Clamping range D, max. 64 mm
Clamping range D, min. 58 mm
Dimension 58-64mm
Dimension A 23 mm
Dimension B 70 mm
Dimension C 40 mm
Dimension G (mm) M8
Dimension H 99 mm
Dimension L 45,5 mm
Dimension t 2,5 mm
Dimension x 6,5 mm
For pipe diameter, max. 63 mm
For pipe diameter, min. 63 mm
for rail with slot width (with interval), max. 17 mm
for rail with slot width (with interval), min. 16 mm
Halogen-free yes
Impact-resistant no
Material Steel
Material addition Steel
Material of trough Plastic
Material quality of trough Polypropylene
Max. Tightening torque 5 Nm
Mounting type Profile rail
Number of cables/pipes 1
Surface Hot-dip galvanised
Surface addition hot galvanised
With counter-trough no
With metal trough no
With plastic trough yes
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no. Quantity SSU
2056 12 FT 8 mm 12 mm 3 Nm 1160125
100 piece
2056 16 FT 12 mm 16 mm 3 Nm 1160168
100 piece
2056 22 FT 16 mm 22 mm 3 Nm 1160222
100 piece
2056 28 FT 22 mm 28 mm 3 Nm 1160281
100 piece
2056 34 FT 28 mm 34 mm 5 Nm 1160346
100 piece
2056 40 FT 34 mm 40 mm 5 Nm 1160400
100 piece
2056 46 FT 40 mm 46 mm 5 Nm 1160451
100 piece
2056 52 FT 46 mm 52 mm 5 Nm 1160524
100 piece
2056 58 FT 52 mm 58 mm 5 Nm 1160583
100 piece
2056 64 FT 58 mm 64 mm 5 Nm 1160648
100 piece
2056 70 FT 64 mm 70 mm 5 Nm 1160702
50 piece
2056 76 FT 70 mm 76 mm 5 Nm 1160761
25 piece
2056 82 FT 76 mm 82 mm 5 Nm 1160826
25 piece
2056 90 FT 82 mm 90 mm 5 Nm 1160907
25 piece
2056 100 FT 90 mm 100 mm 5 Nm 1160990
25 piece
