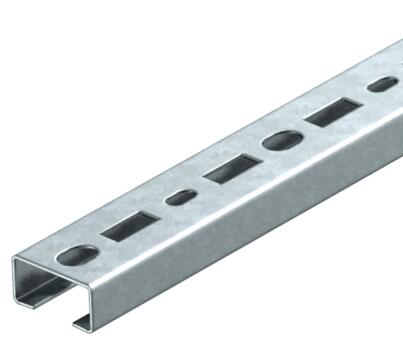

CML3518 profile rail, slot 17 mm, FS, perforated

Item no. 1104268 | EAN 4012195038290

35 mm
18 mm
1.25 mm
Steel
Strip galvanized
Product description
Product description
Light-duty profile rail, perforated, slot width 17 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 17 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Bolt-firing tool
  • Nail device
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

Breakable no
CO₂ Footprint (GWP) Cradle-to-Gate 0,374 kg CO₂e / 1 Piece

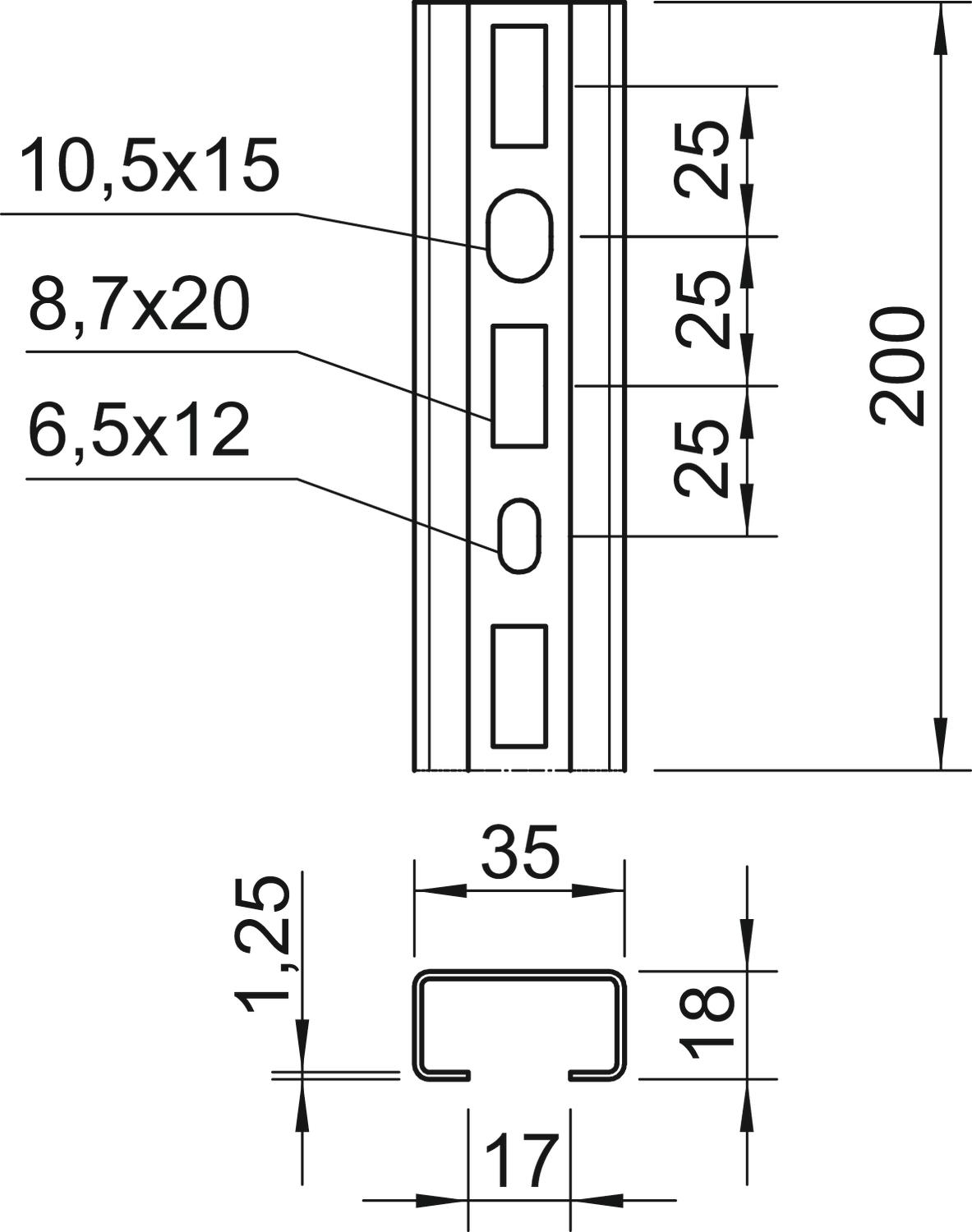

Dimension 200x35x18
Dimension L 200 mm
Drill hole spacing, centre 25 mm
Height 18 mm
Length 200 mm
Maintain electrical functions yes
Material Steel
Material thickness 1,25 mm
Profile shape C profile
Slot width 17 mm
Static value A 0,88 cm²
Static value ly 0,41 cm
Static value lz 1,81 cm
Static value Wy 0,41 cm²
Static value Wz 1,03 cm²
Surface Strip galvanized
Type of perforation Perforated back
Version for Single profile
Width 35 mm
With perforation yes
With toothing no
All types

All types

Types Length Width Height Material thickness Material Surface Item no. Quantity SSU
CML3518P0200FS 200 mm 35 mm 18 mm 1.25 mm Steel Strip galvanized 1104268
25 piece
CML3518P2000FS 2000 mm 35 mm 18 mm 1.25 mm Steel Strip galvanized 1104500
2 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Hammer-head bolt ZL Hammer-head bolt ZL ACMHB M8x30 ZL 1148060
50 piece
Clamp clip, single, plastic pressure trough, FT Clamp clip, single, plastic pressure trough, FT 2056 12 FT 1160125
100 piece
Clamp clip, single, plastic pressure trough, FT Clamp clip, single, plastic pressure trough, FT 2056 22 FT 1160222
100 piece
Clamp clip, single, plastic pressure trough, FT Clamp clip, single, plastic pressure trough, FT 2056 28 FT 1160281
100 piece
