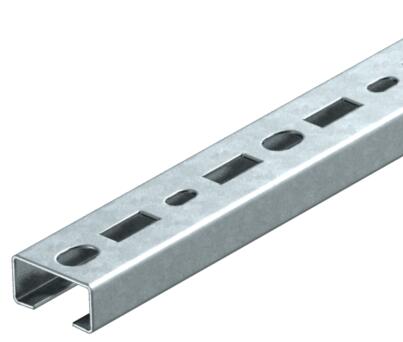

CML3518 profile rail, slot 17 mm, FS, perforated

Item no. 1104500 | EAN 4012195038771

Item no. / Types

Length

Width	35 mm

Height	18 mm

Material thickness	1.25 mm

Material	Steel

Surface	Strip galvanized

Product description

Product description

Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.

Technical data

Technical data

Breakable	no
Bundle	20 m
CO₂ Footprint (GWP) Cradle-to-Gate	1,82 kg CO₂e / 1 Meter

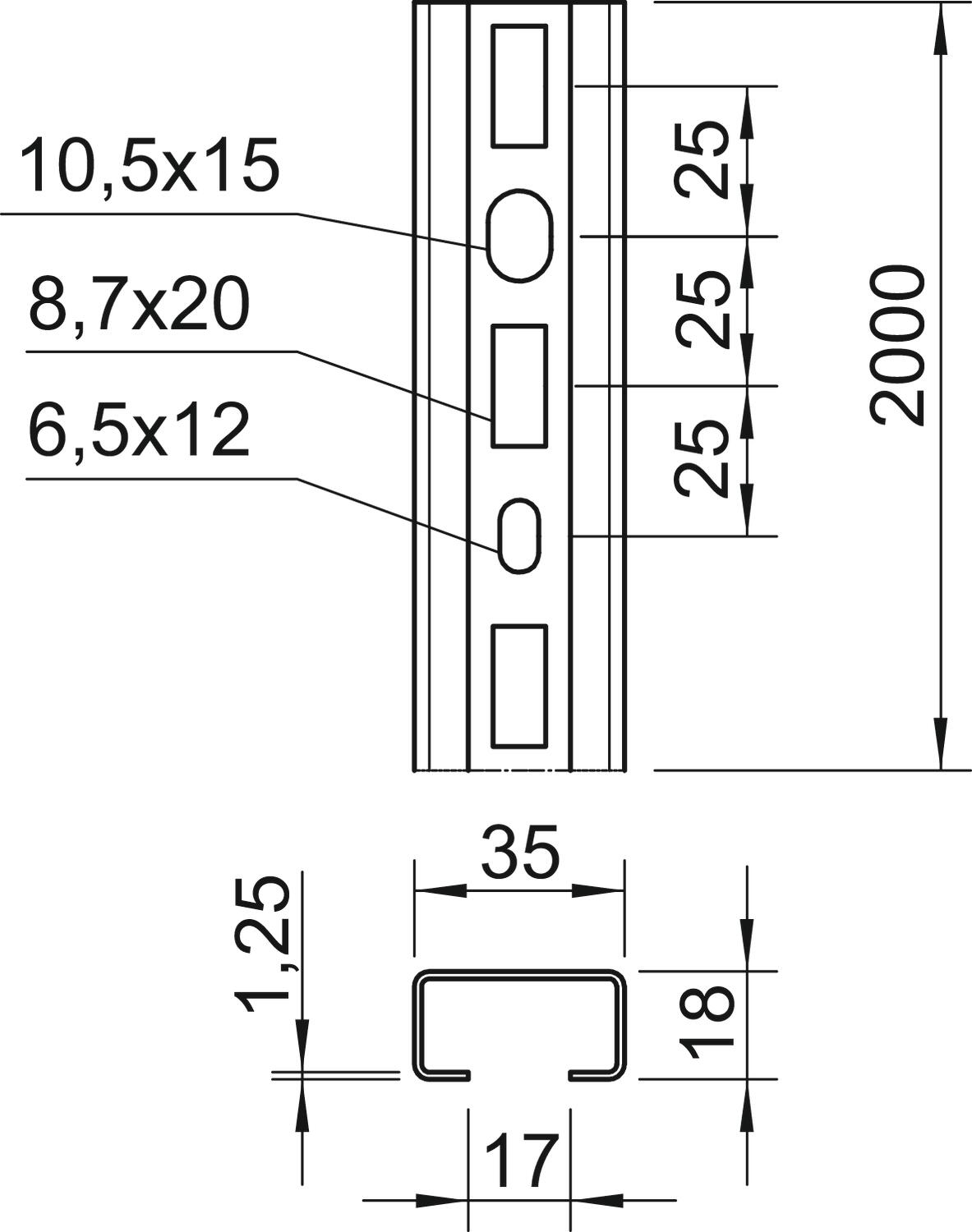

Dimension	2000x35x18
Dimension L	2000 mm
Drill hole spacing, centre	25 mm
Height	18 mm
Length	2000 mm
Maintain electrical functions	yes
Material	Steel
Material thickness	1,25 mm
Profile shape	C profile

Slot width	17 mm
Static value A	0,88 cm²
Static value ly	0,41 cm
Static value lz	1,81 cm
Static value Wy	0,41 cm²
Static value Wz	1,03 cm²
Surface	Strip galvanized
Type of perforation	Perforated back
Version for	Single profile
Width	35 mm
With perforation	yes
With toothing	no

All types

All types

Types	Length	Width	Height	Material thickness	Material	Surface	Item no.	Quantity	SSU
CML3518P0200FS	200 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104268	piece	25 piece
CML3518P2000FS	2000 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104500	m	2 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

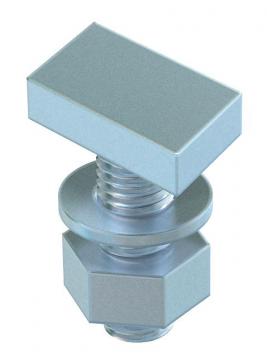

Hammer-head bolt ZL	ACMHB M8x30 ZL	1148060	piece	50 piece

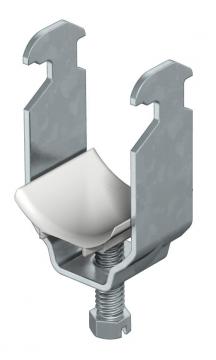

Clamp clip, single, plastic pressure trough, FT	2056 12 FT	1160125	piece	100 piece

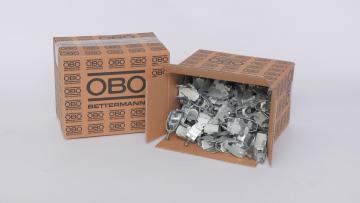

Clamp clip, single, plastic pressure trough, FT	2056 22 FT	1160222	piece	100 piece
Clamp clip, single, plastic pressure trough, FT	2056 28 FT	1160281	piece	100 piece
