Coaxial protection device for 7/16 connection: male/female

Item no. 5093171 | EAN 4012195030881

5093171 / DS-7 16 M/W
1
130 V
185 V
7/16
Product description

Product description

Coaxial data protection device

• Basic protection
• Simple mounting (adapter)
• Optimum transmission
• High pulse load capacity
• With 7/16 connector

Application: to protect mobile telephony applications.
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Transition from LPZ 0 to LPZ 2
  • TV applications
  • SAT-TV applications
  • Installation electrotechnical expertise

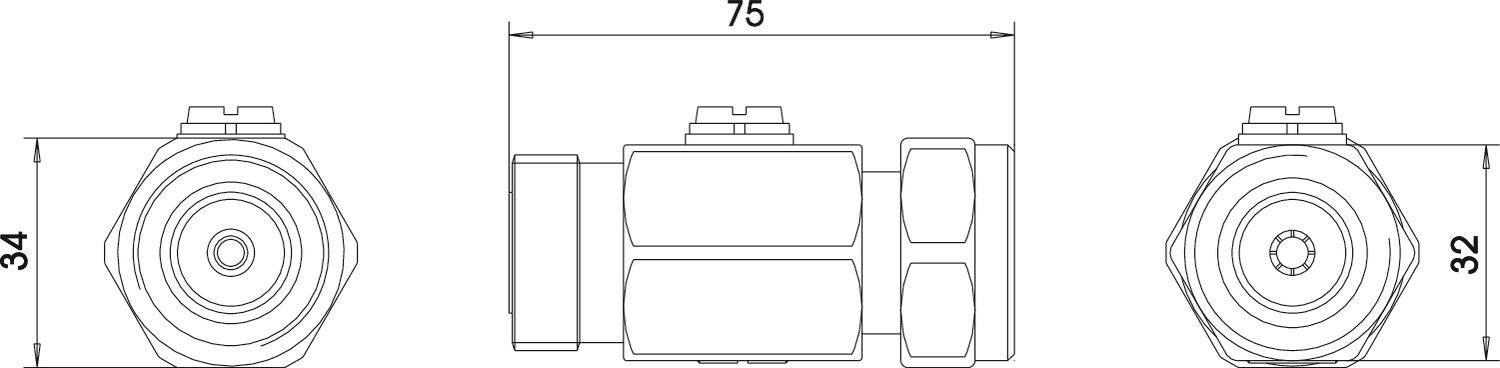

Technical data

Technical data

Arrestor monitoring no
Cable type for surge protection devices Data cable COAX
Capacity (wire-earth) <20 pF
Capacity (wire-wire) <10 pF
Cut-off frequency 3000 MHz
Dimension 170V
Explosion-tested version no
Impulse durability wire-earth C2: 10 kV / 5 kA (8/20µs)
Impulse durability wire-wire C2: 10 kV / 5 kA (8/20µs)
Insertion loss ≤0,95 dB
Insulation resistance >1 GΩ
Kategorie Type 1+2 / D1+C2
Lightning impulse current 2,5 kA
Lightning protection zone LPZ 0→2
Maximum continuous voltage AC 130 V
Maximum continuous voltage DC 185 V
Nominal load current AC 7 A
Nominal load current DC 10 A
Number of poles 1
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -40 °C
Plug-in system 7/16
Protection level <800 V
Protection level wire-earth <800 V
Protection level wire-wire <800 V
Protection rating IP40
Return loss ≥14 dB
Screening Direct
Shielding connection available yes
Signalling on device None
SPD to IEC 61643-21 Class I+II / D1+C2
Telecommunications contact no
Testing standard IEC 61643-21
Total discharge current (10/350) 5 kA
Total discharge current (8/20) 10 kA
Wave resistance 50 Ω
All types

All types

Types Number of poles Maximum continuous voltage AC Maximum continuous voltage DC Plug-in system Item no. Quantity SSU
DS-7 16 M/W 1 130 V 185 V 7/16 5093171
1 piece
