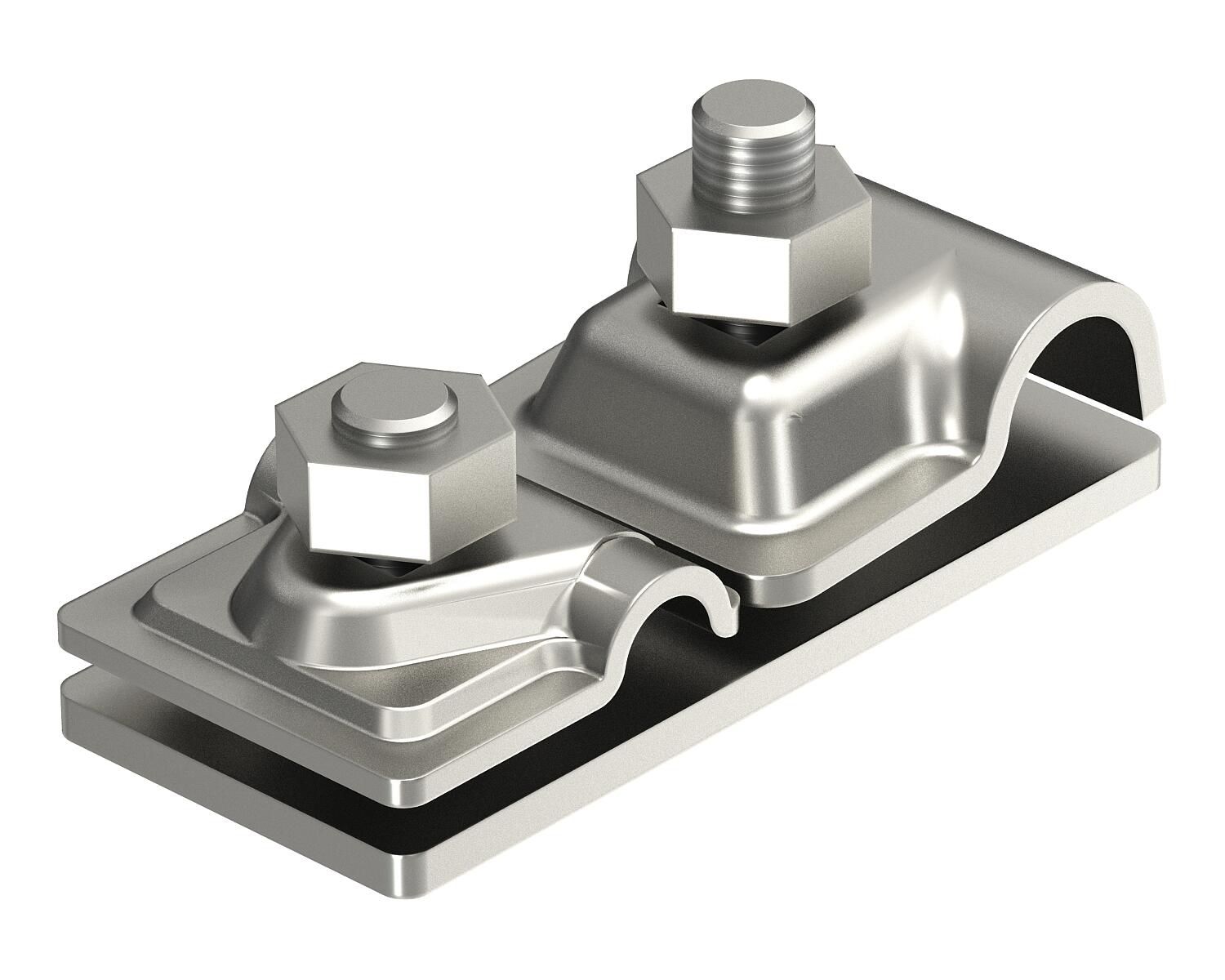

Connection plate for one isCon® cable
Item no. 5408026 | EAN 4012195674696
- Product description
-
Product descriptionConnection plate to connect an isCon® conductor with air-termination rod Ø 16 mm, tested up to 150 kA (lightning protection class II)
-
- Technical data
-
Technical data

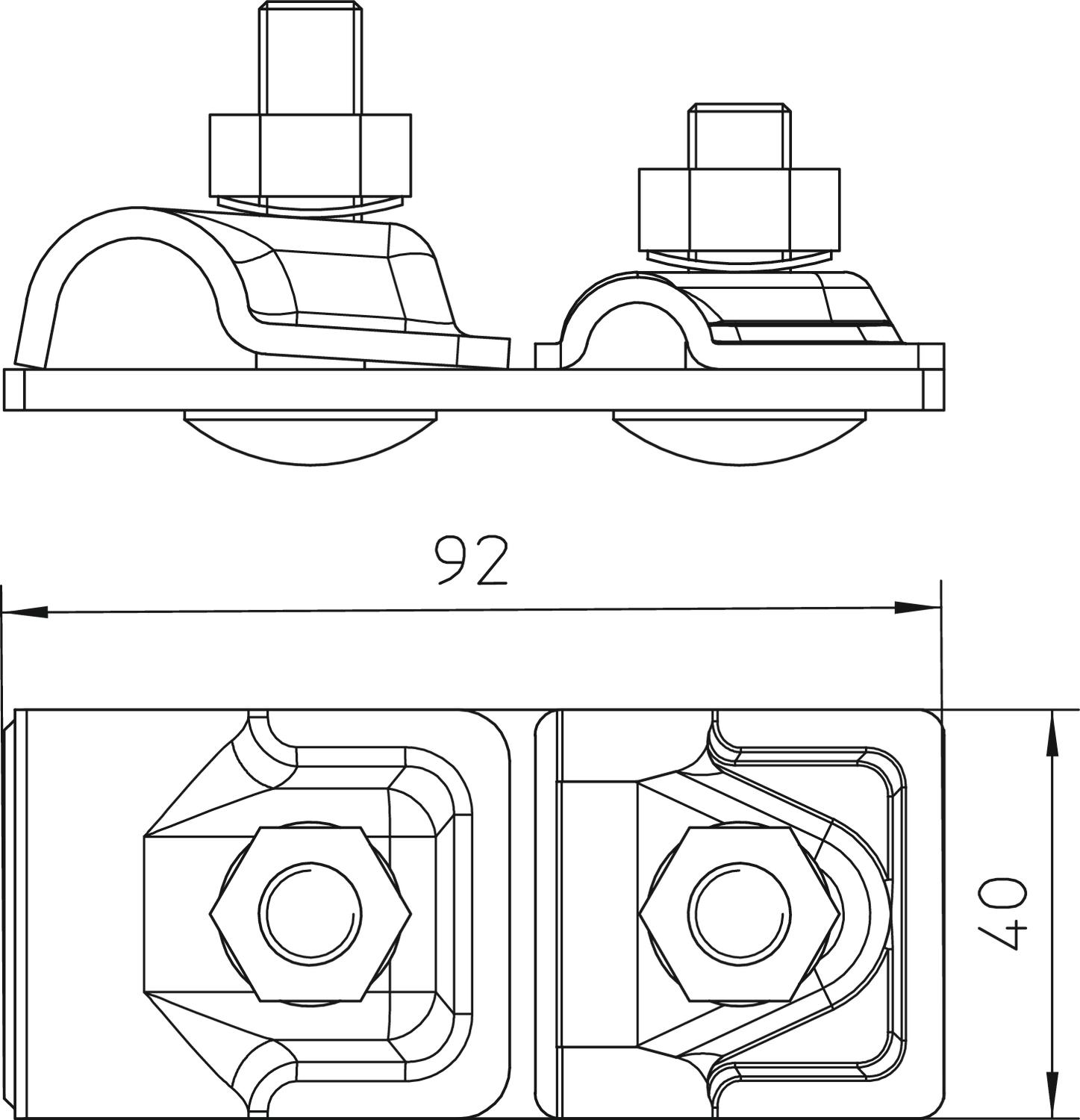

Connection Round conductor Dimension 16x8-10mm Dimension B 40 mm Dimension H 45,5 mm Fit Rd 8-10 x Rd 16 mm Length 92 mm Lightning current carrying capacity H1/150 kA Material Stainless steel - All types
