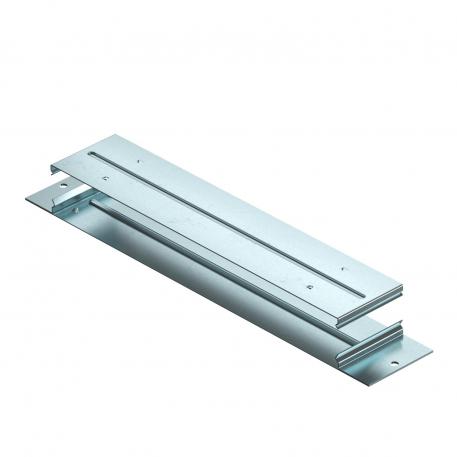

Connection shackle, conductive, for EÜK-2

Item no. / Types

Width	75 mm

Duct height, min.	28 mm

Trunking height, max.

Trunking width, min.

Product description

Product description

Connection shackle for mounting screed-covered underfloor installation ducts. The connection shackle snaps in to the duct sidewalls.

Technical data

Suitable for expansion joint	yes
Surface	Strip galvanized
Trunking height, max.	58 mm
Trunking width, min.	350 mm
Version for	Strap
With equipotential bonding	yes

Dimension a	350 mm
Length	423 mm

Width	75 mm

All types

Types	Width	Duct height, min.	Trunking height, max.	Trunking width, min.	Item no.	Quantity	SSU
VL 190-2	75 mm	28 mm	48 mm	190 mm	7400988	piece	1 piece
VL 250-2	75 mm	28 mm	58 mm	250 mm	7400992	piece	1 piece
VL 350-2	75 mm	28 mm	58 mm	350 mm	7400996	piece	1 piece
