- Product description
-
Product description

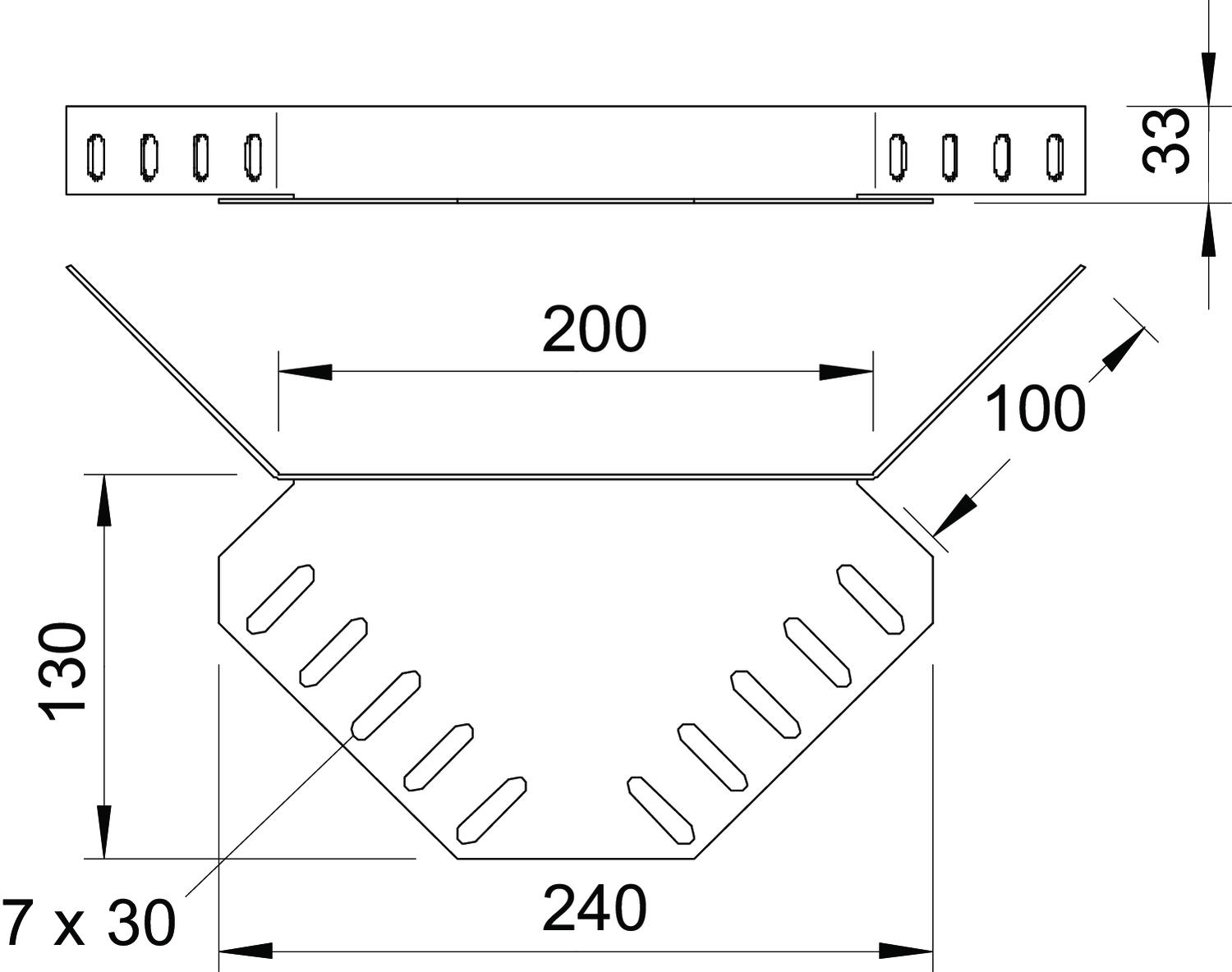

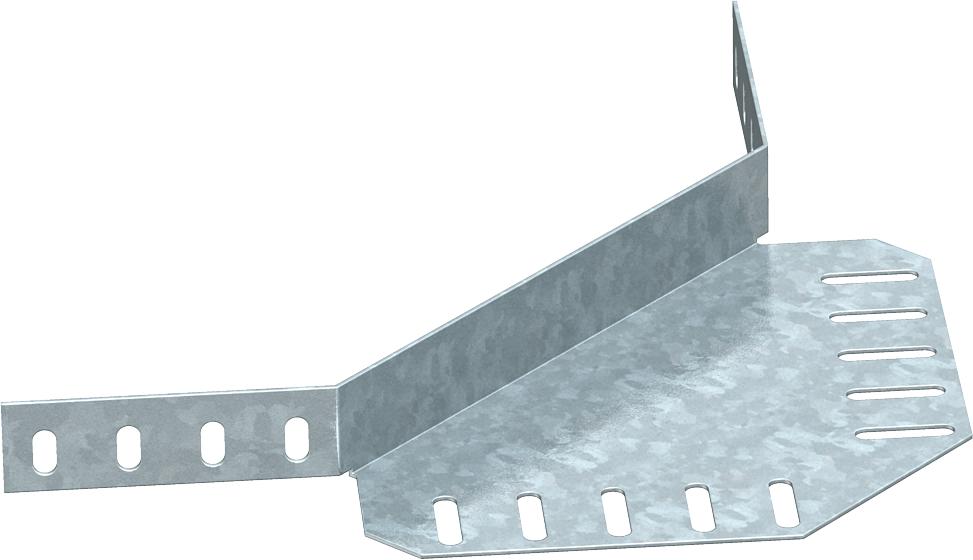

Corner connector for cable trays with side height 35 mm.
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 240 x 130 Maintain electrical functions no Material Steel Plate thickness 1,25 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 35 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Corner connector Wide-span version no Dimensions
Height 1 in Height 35 mm Length 240 mm Width 400 mm - All types
- Downloads
-
Data sheet REV 35 FS / 6067956 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity REV 35 FS / 6067956 , 0.15MB , pdfREACH Declaration of conformity REV 35 FS / 6067956 , 0.12MB , pdfRoHS Declaration of conformity REV 35 FS / 6067956 , 0.12MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdf
