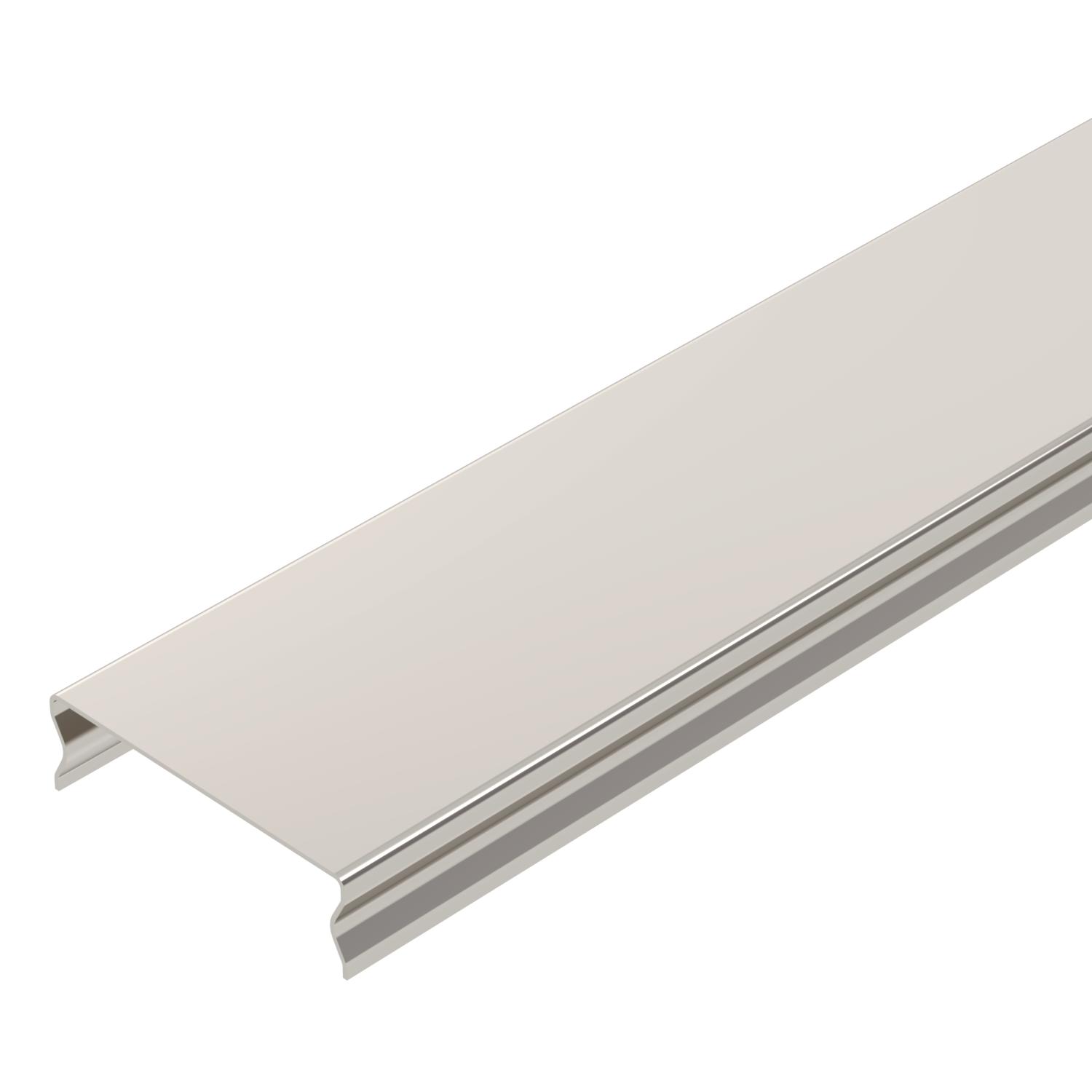

Cover for mesh cable tray, latchable A2
Item no. 6001860 | EAN 4012196687190
- Product description
-
Product descriptionLockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for the foodstuffs or chemicals industries.
When using covers outdoors, additional measures against the influence of wind may need to be taken.
-
- Technical data
-
Technical data
Colour stainless steel Dimension 50x3000 Dimension B 50 mm Fastening type Locking Height 15 mm Height 0,59 in Length 3000 mm Maintain electrical functions no Material Stainless steel Plate thickness 0,8 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Bright, treated Width 1,97 in Width 50 mm - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Cover clamp, universal A2
DKU A2 6065600 20 piece - Downloads
-
Data sheet DGRR 50 A2 / 6001860 , 0.22MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity DGRR 50 A2 / 6001860 , 0.10MB , pdfREACH Declaration of conformity DGRR 50 A2 / 6001860 , 0.12MB , pdfRoHS Declaration of conformity DGRR 50 A2 / 6001860 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
