Cover for mesh cable tray, latchable FS
Item no. 6001840 | EAN 4012196687114
- Product description
-

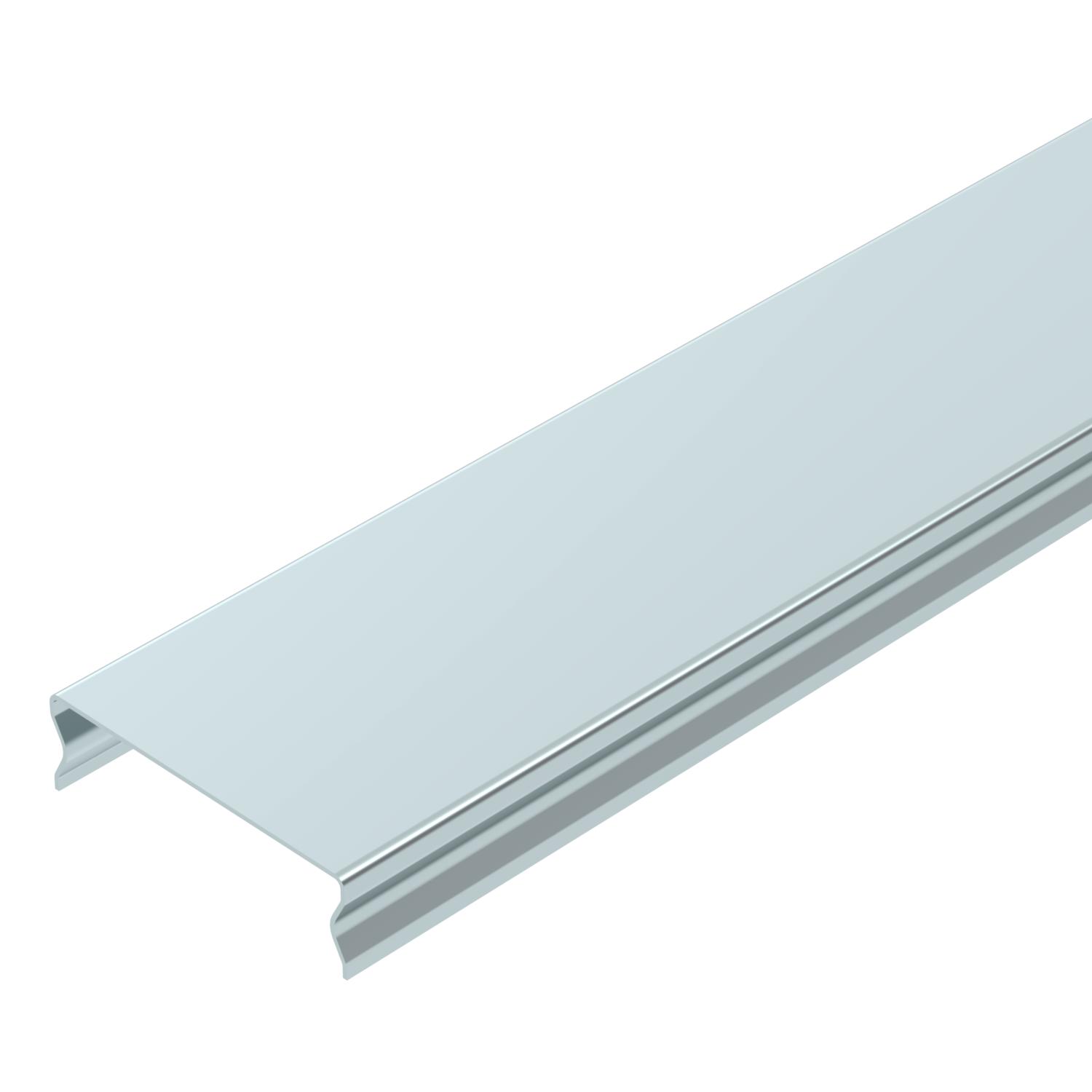

Product descriptionLockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for interior areas without specific requirements.
-
- Technical data
-
Technical data
Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 1,4569 kg CO₂e / 1 Meter Dimension 50x3000 Dimension B 50 mm Fastening type Locking Height 0,59 in Height 15 mm Length 3000 mm Maintain electrical functions no Material Steel Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Strip galvanized Width 50 mm Width 1,97 in - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Cover clamp, universal A2
DKU A2 6065600 20 piece - Downloads
-
Data sheet DGRR 50 FS / 6001840 , 0.21MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity DGRR 50 FS / 6001840 , 0.10MB , pdfREACH Declaration of conformity DGRR 50 FS / 6001840 , 0.12MB , pdfRoHS Declaration of conformity DGRR 50 FS / 6001840 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
