Cross-over 110 FS
Item no. 7027357 | EAN 4012197338909
- Product description
-
Product description

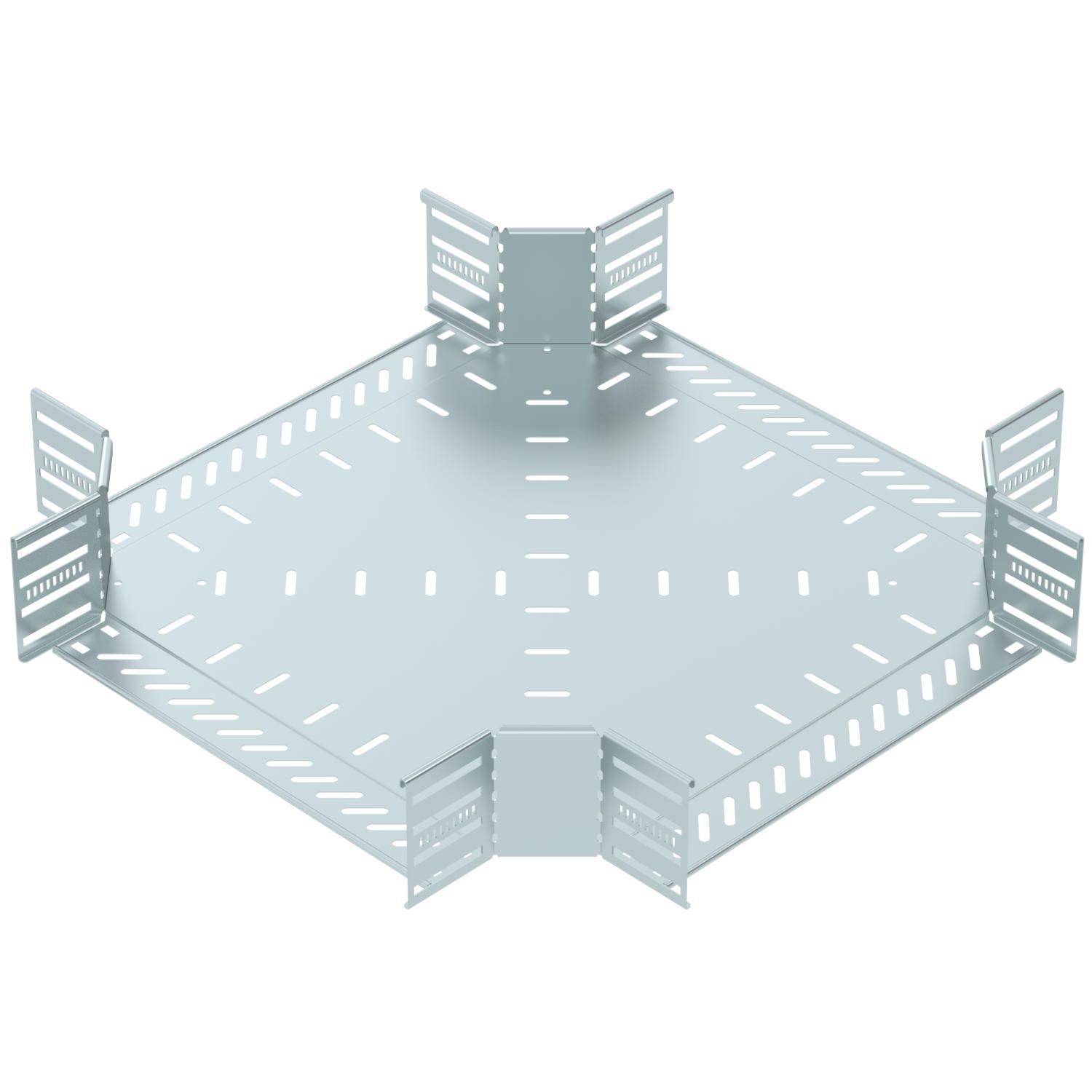

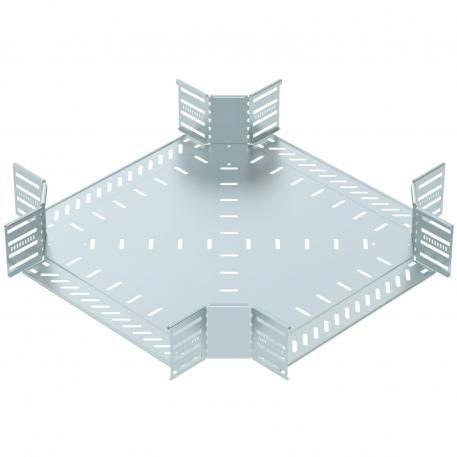

Cross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 110 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
-
- Technical data
-
Technical data
Connector version Integrated connector Dimension 110x400 Maintain electrical functions no Material Steel Material thickness, floor plate 1 mm NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rail thickness 1,25 mm Recommended quantity of bolts 44 St. Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system screwed/clamped Wide-span version no Dimensions

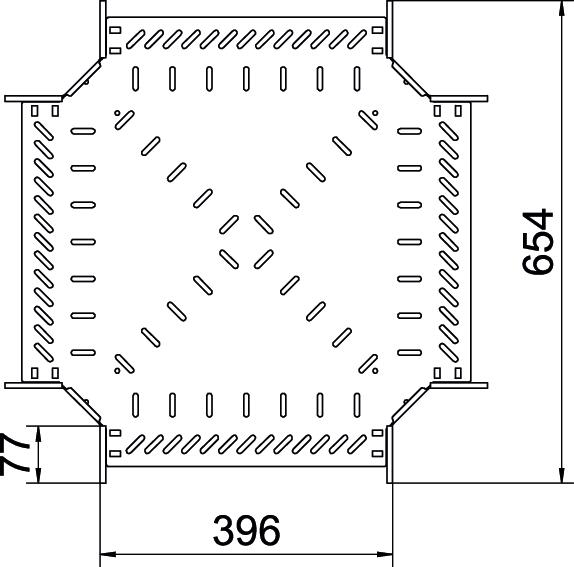

Dimension B 400 mm Dimension R 50 mm Height 110 mm Width 400 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Double clamp, fitting mounting A2
DOP A2 6035998 1 piece - Downloads
-
Data sheet RK 140 FS / 7027357 , 0.23MB , pdfDeclaration of conformity RK 140 FS / 7027357 , 0.15MB , pdfREACH Declaration of conformity RK 140 FS / 7027357 , 0.12MB , pdfRoHS Declaration of conformity RK 140 FS / 7027357 , 0.13MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdf
