Distribution box, 12 division units, empty, polystyrene
Item no. 2008832 | EAN 4012196465736
- Product description
-
Product description

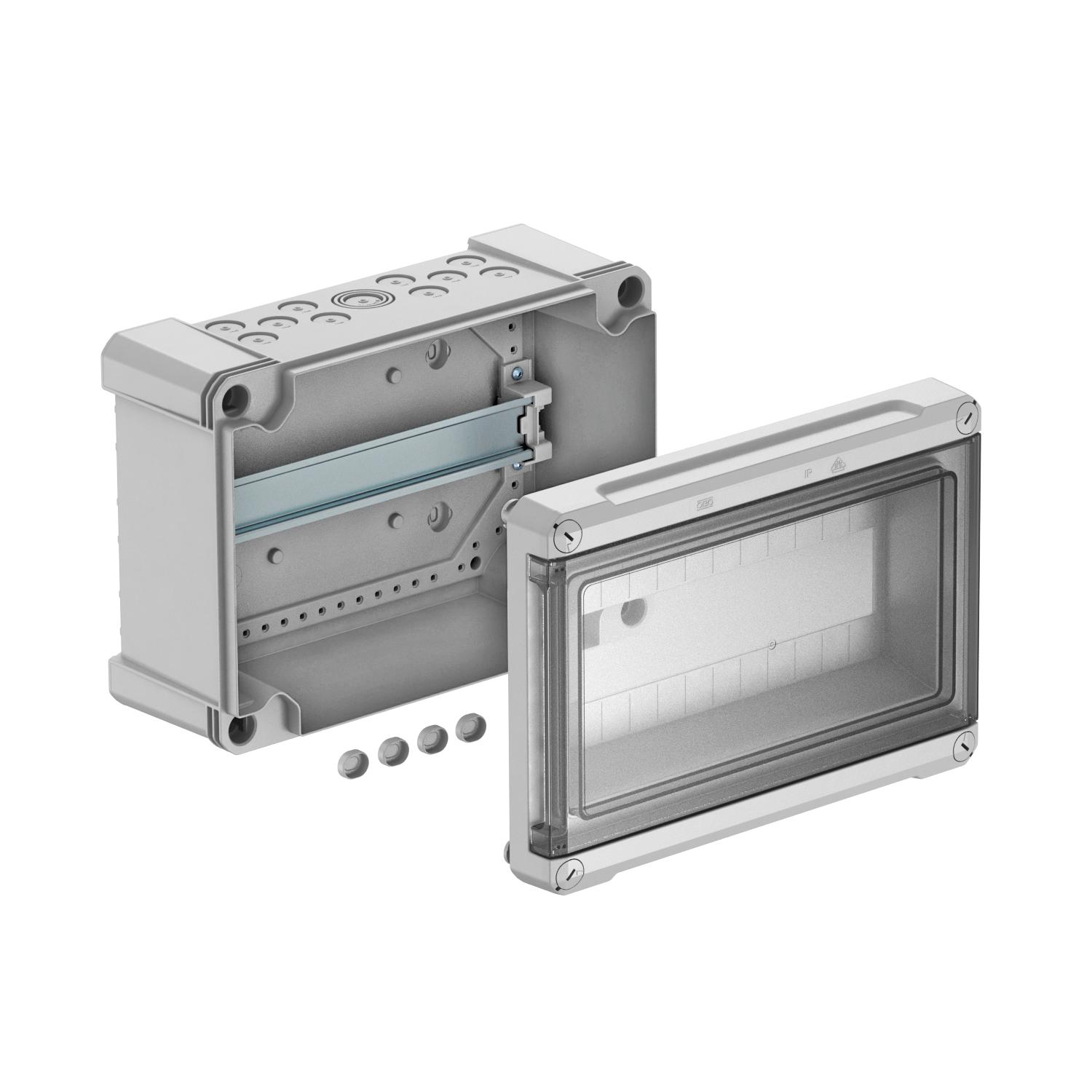

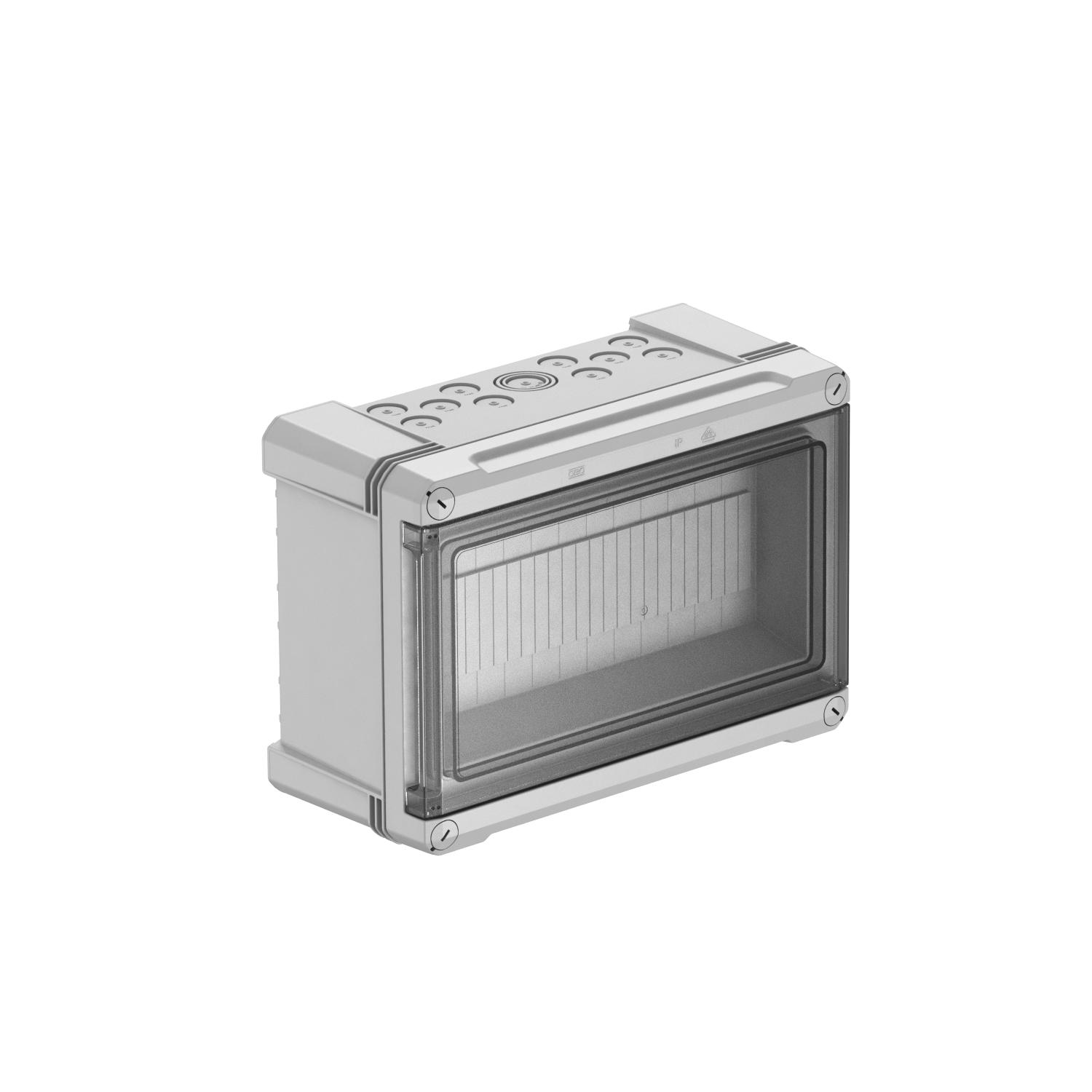

Distribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.
- Protection-insulated for a maximum of 12 division units
- 11 Ø 20 mm break-out openings each at the top and bottom
- 1 Ø 20/25/32 mm combination break-out opening each at the top and bottom
- 4 screw cover caps
Nominal current 63 A
Power loss at 40 K 25.1 W
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Cover type Cover Dimension 286x202x125 DIN rail yes EMC version no Extension option yes Material Polystyrene Mounting type, consumer units Structure Nominal current 63 A Nominal voltage 400 V Number of rows 1 Protection rating IP66 Protection rating IK code IK07. Transparent lid yes Version, small distributor cover With cut-out Width in divisional units 12 With lock no With mounting plate no Dimensions
Height 126 mm Length 286 mm Width 202 mm - All types
