Distribution box, 12 division units, with terminal strip, polystyrene 286 | 202 | 126 | Connector

Distribution box, 12 division units, with terminal strip, polystyrene

Item no. 2008812 | EAN 4012196465699

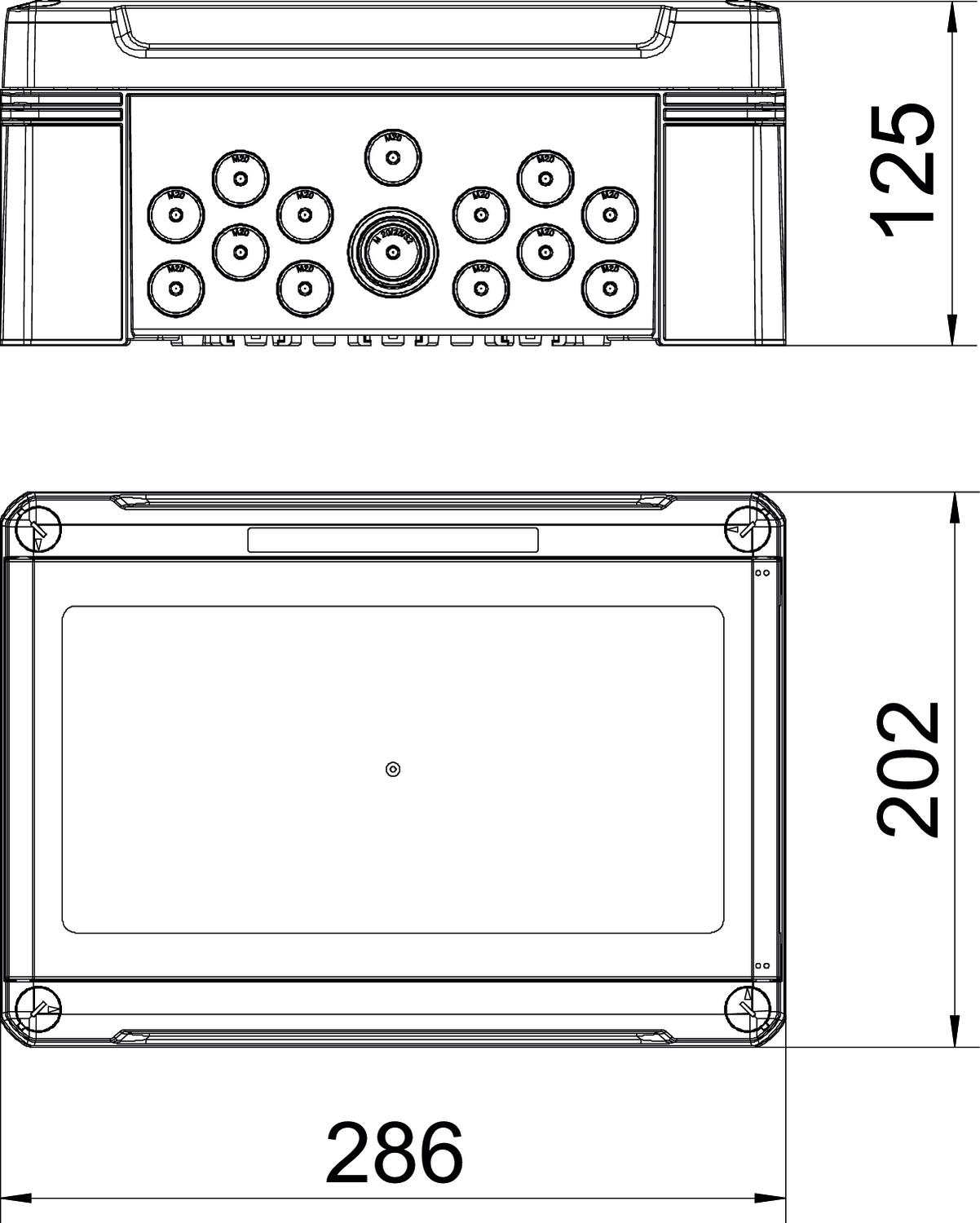

Item no. / Types	2008812 / SDB 12 PS

Length	286 mm

Width	202 mm

Height	126 mm

Terminals	Connector

Product description

Product description

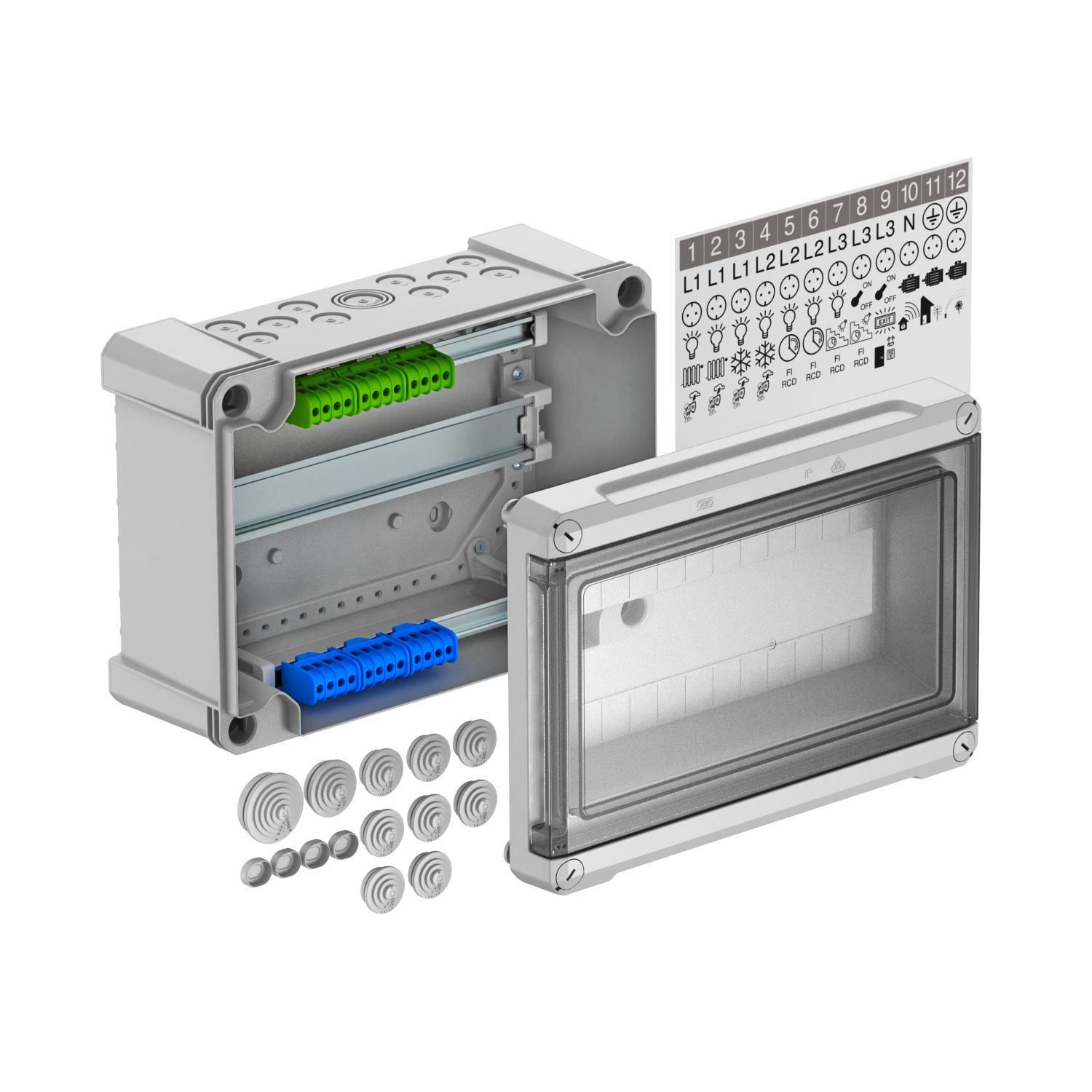

Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.

- Protection-insulated for a maximum of 12 division units

- Terminal strip set consisting of: Three each of: PE/N terminals with 4x 16 mm² screw terminals, mini hat profile rail, mounting instructions and fastening set

- Identification plates for connected consumers

- 8 elastic cable entries Ø20 mm for cable diameters of 0–17 mm

- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 mm

- 1 elastic cable entry Ø32 mm for cable diameters of 0–28 mm

- 10 Ø 20 mm break-out openings each at the top and bottom

- 1 Ø 20/25/32 mm combination break-out opening each at the top and bottom

- 4 screw cover caps
Nominal current 63 A
Power loss at 40 K 25.1 W

Technical data

Technical data

Colour	Light grey; RAL 7035
Cover type	Cover
Dimension	286x202x125
DIN rail	yes
EMC version	no
Extension option	yes
Material	Polystyrene
Mounting type, consumer units	Structure
Nominal current	63 A
Nominal voltage	400 V

Number of rows	1
Protection rating	IP66
Protection rating IK code	IK07.
Terminals	Connector
Transparent lid	yes
Version, small distributor cover	With cut-out
Width in divisional units	12
With lock	no
With mounting plate	no
