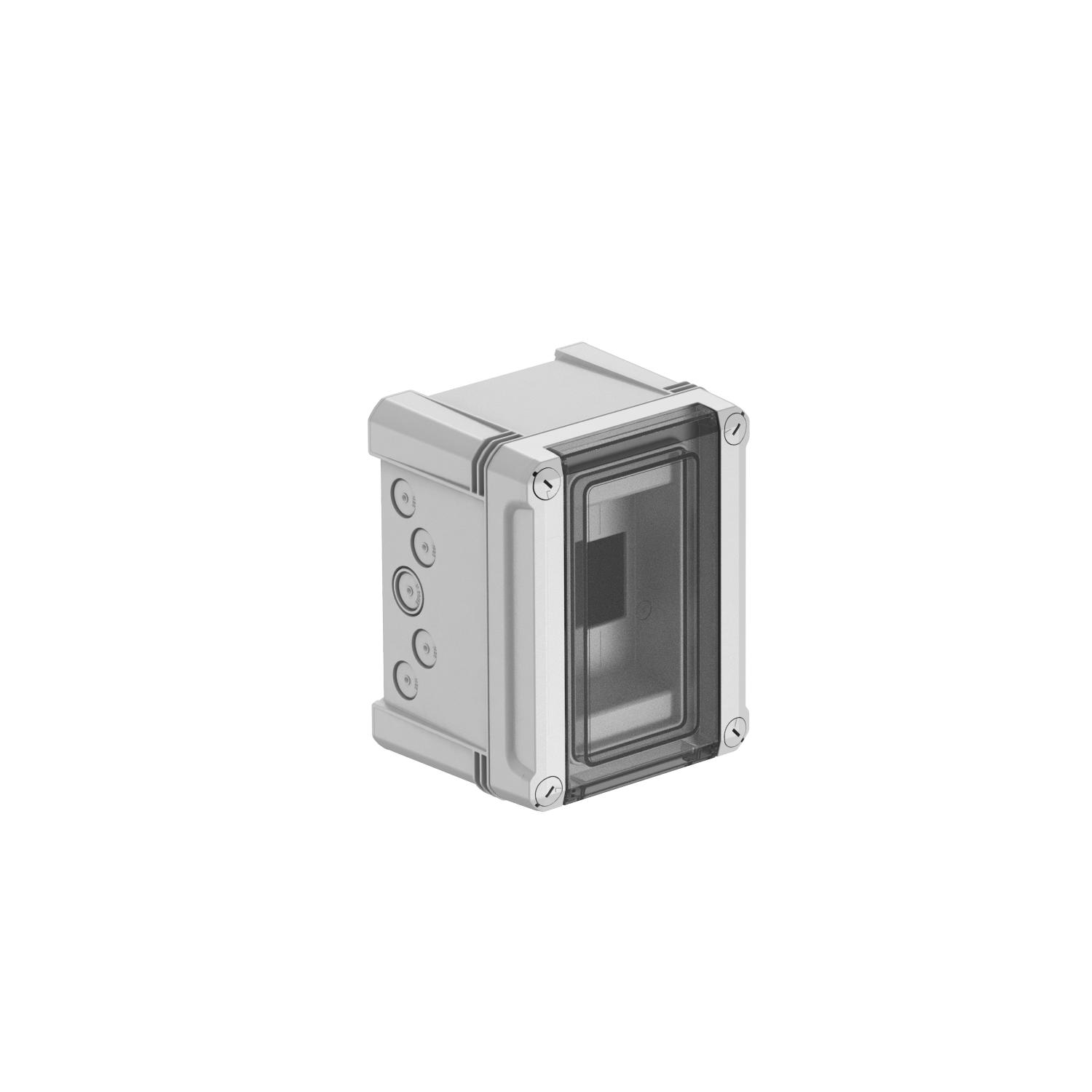

Distribution box, 3 division units, empty, polystyrene

Item no. 2008820 | EAN 4012196465705

2008820 / SDB 03L PS

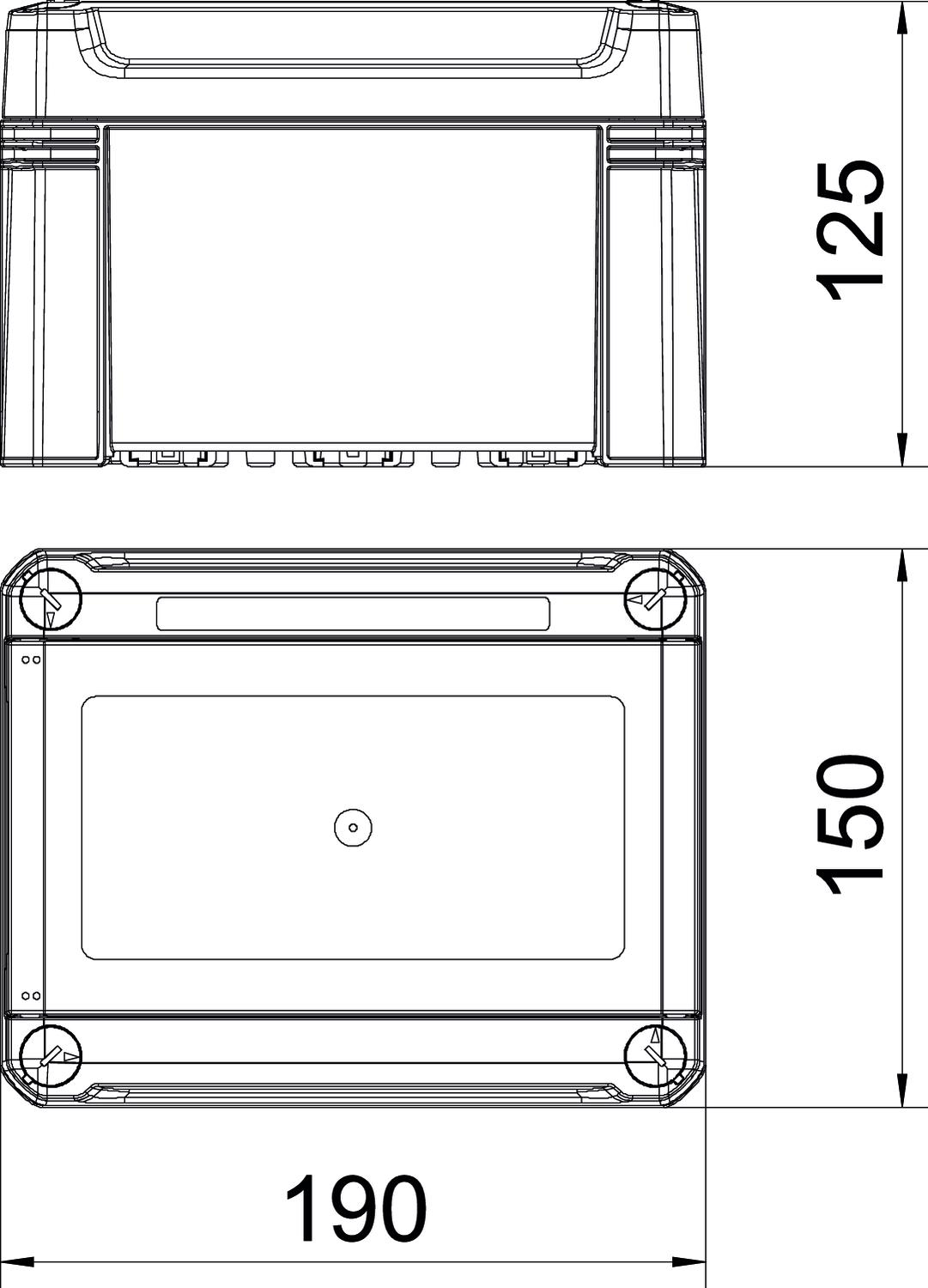

191 mm
151 mm
126 mm
Product description
Product description

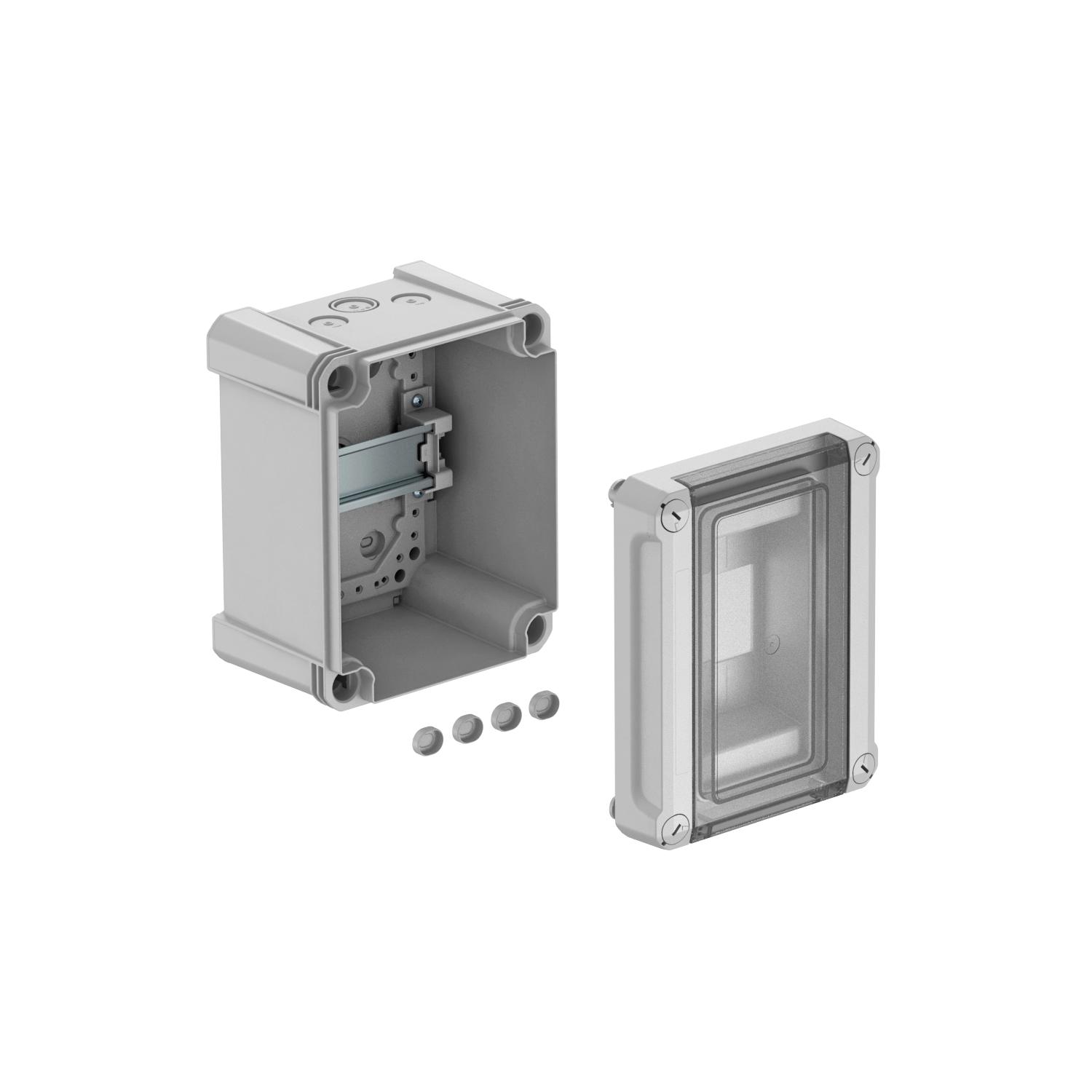

Distribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.

- Protection-insulated for a maximum of 3 division units

- 2 Ø 20 mm break-out openings each at the top and bottom

- 1 Ø 20/25 mm combination break-out opening each at the top and bottom

- 4 screw cover caps
The PS small distributors are suitable for mounting in interiors and in protected exteriors.
Nominal current 40 A
Power loss at 40 K 17 W
Measured voltage Un: 400 V
Operating measured voltage Ue: 400 V
Impulse current resistance Cat.III Uimp: 4 kV

  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Protection rating IP 66
  • M20 entry
  • M25 entry
  • Thread metric
  • Nominal voltage 400 V
  • IK Code 07
Technical data

Technical data

Colour Light grey; RAL 7035
Cover type Cover
CO₂ Footprint (GWP) Cradle-to-Gate 2,657 kg CO₂e / 1 Piece
Dimension 150x190x125
DIN rail yes
EMC version no
Extension option yes
Height 126 mm
Length 191 mm
Material Polystyrene
Mounting type, consumer units Structure
Nominal current 40 A
Nominal voltage 400 V
Number of rows 1
Protection rating IP66
Protection rating IK code IK07.
Transparent lid yes
Version, small distributor cover With cut-out
Width 151 mm
Width in divisional units 3
With lock no
With mounting plate no
All types

All types

Types Length Width Height Item no. Quantity SSU
SDB 03L PS 191 mm 151 mm 126 mm 2008820
1 piece
