Distribution box, 5 division units, empty, polycarbonate 191 | 151 | 126 |

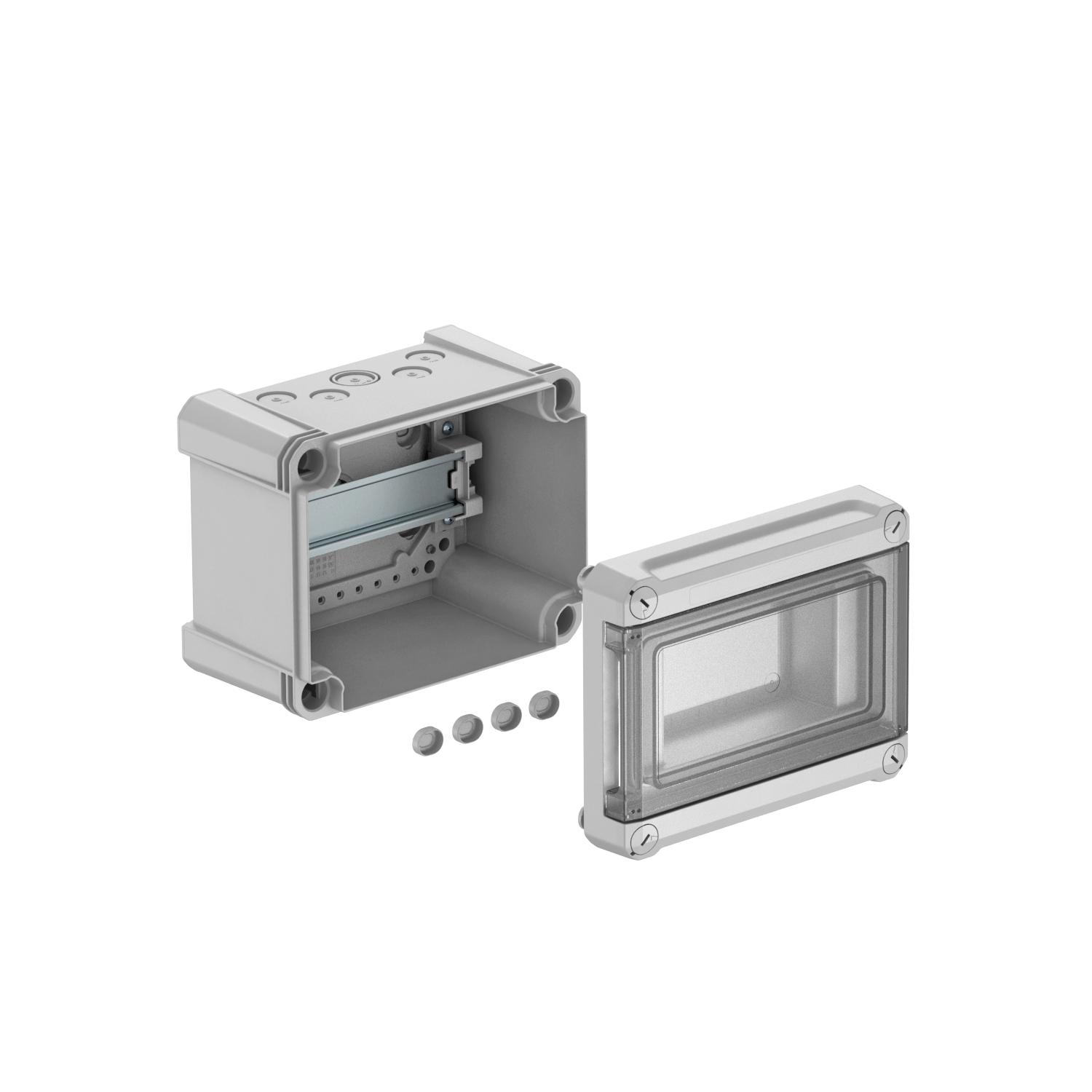

Distribution box, 5 division units, empty, polycarbonate

Item no. 2008864 | EAN 4012196465798

Item no. / Types	2008864 / SDB 05L PC

Length	191 mm

Width	151 mm

Height	126 mm

Product description

Product description

Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out. Including 4 screw cover caps.

- Protection-insulated for a maximum of 5 division units

- 4 Ø 20 mm break-out openings each at the top and bottom

- 1 Ø 20/25 mm combination break-out opening each at the top and bottom

- 4 screw cover caps
Nominal current 40 A
Power loss at 40 K 19 W

Technical data

Technical data

Colour	Light grey; RAL 7035
Cover type	Cover
Dimension	190x150x125
DIN rail	yes
EMC version	no
Extension option	yes
Material	Polycarbonate
Mounting type, consumer units	Structure
Nominal current	40 A

Nominal voltage	400 V
Number of rows	1
Protection rating	IP66
Protection rating IK code	IK08
Transparent lid	yes
Version, small distributor cover	With cut-out
Width in divisional units	5
With lock	no
With mounting plate	no
