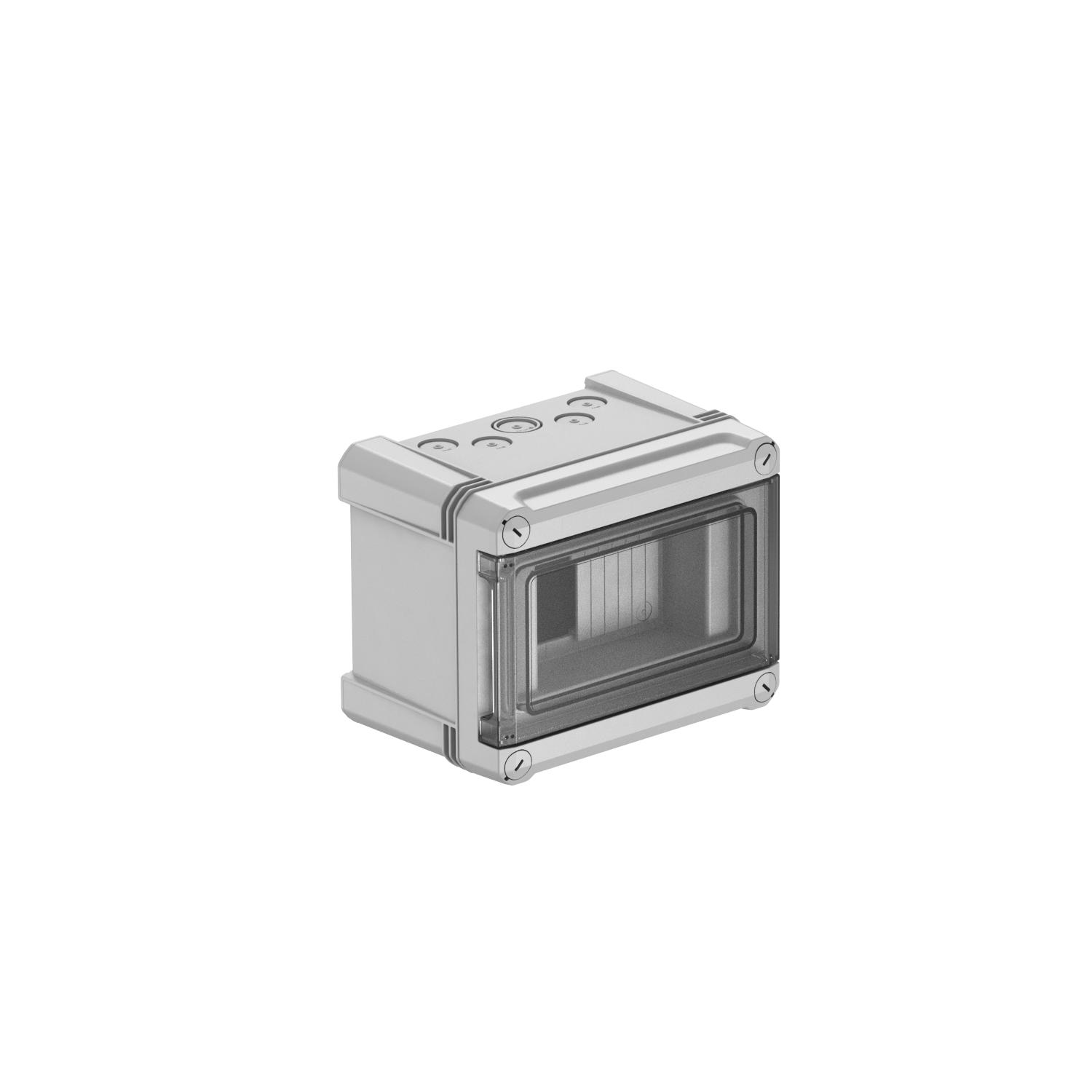

Distribution box, 5 division units, with terminal strip, polystyrene
Item no. 2008804 | EAN 4012196465675
- Product description
-
Product description

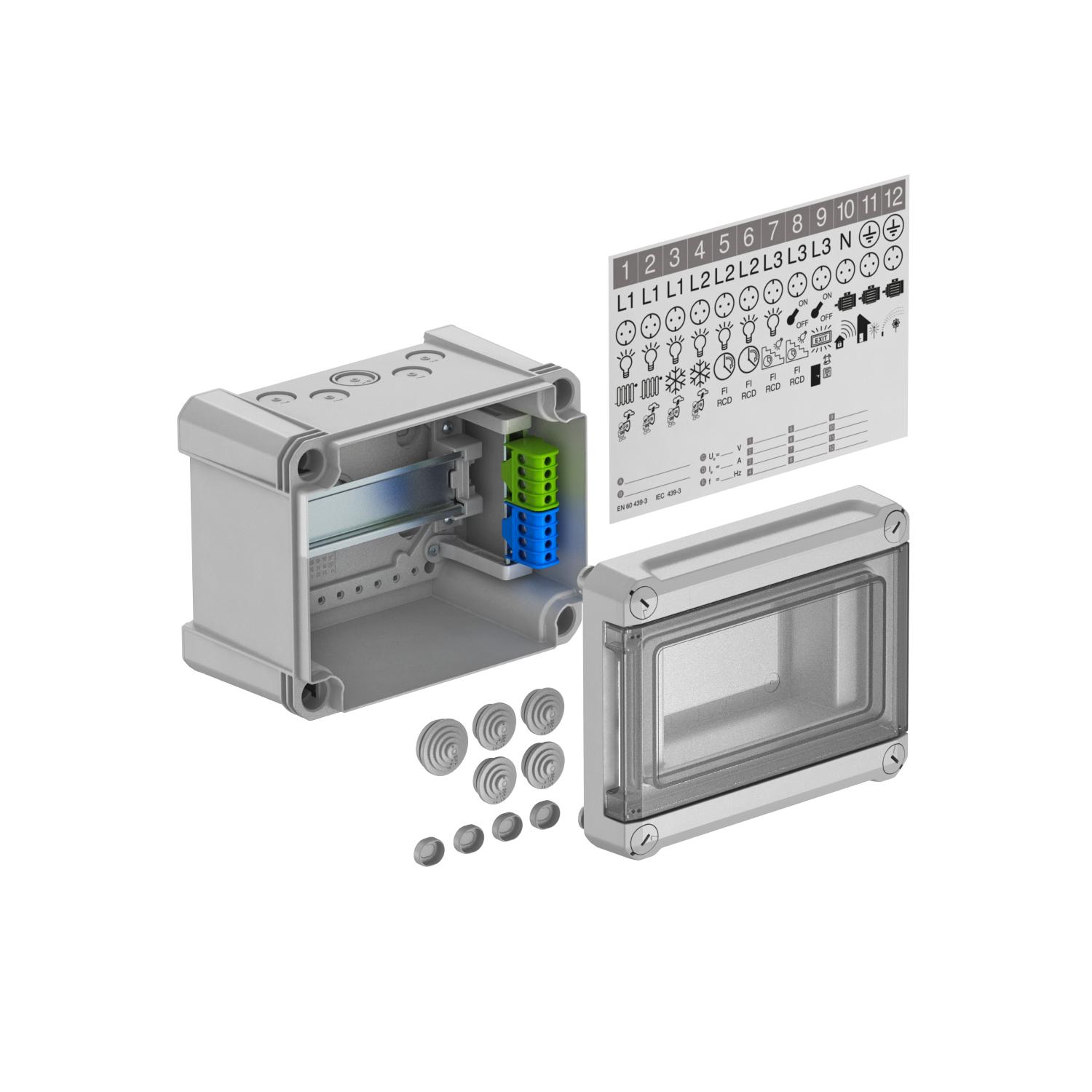

Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.
- Protection-insulated for a maximum of 5 division units
- Terminal strip set consisting of: One each of: PE/N terminal with 4x 16 mm² screw terminals, mini hat profile rail, mounting instructions and fastening set
- Identification plates for connected consumers
- 4 elastic cable entries Ø20 mm for cable diameters of 0–17 mm
- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 mm
- 4 Ø 20 mm break-out openings each at the top and bottom
- 1 Ø 20/25 mm combination break-out opening each at the top and bottom
- 4 screw cover caps
Nominal current 40 A
Power loss at 40 K 19 W
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Cover type Cover Dimension 190x150x125 DIN rail yes EMC version no Extension option yes Material Polystyrene Mounting type, consumer units Structure Nominal current 40 A Nominal voltage 400 V Number of rows 1 Protection rating IP66 Protection rating IK code IK07. Terminals Connector Transparent lid yes Version, small distributor cover With cut-out Width in divisional units 5 With lock no With mounting plate no Dimensions
Height 126 mm Length 191 mm Width 151 mm - All types
