Distribution box, 9 division units, empty, polystyrene
Item no. 2008828 | EAN 4012196465729
- Product description
-

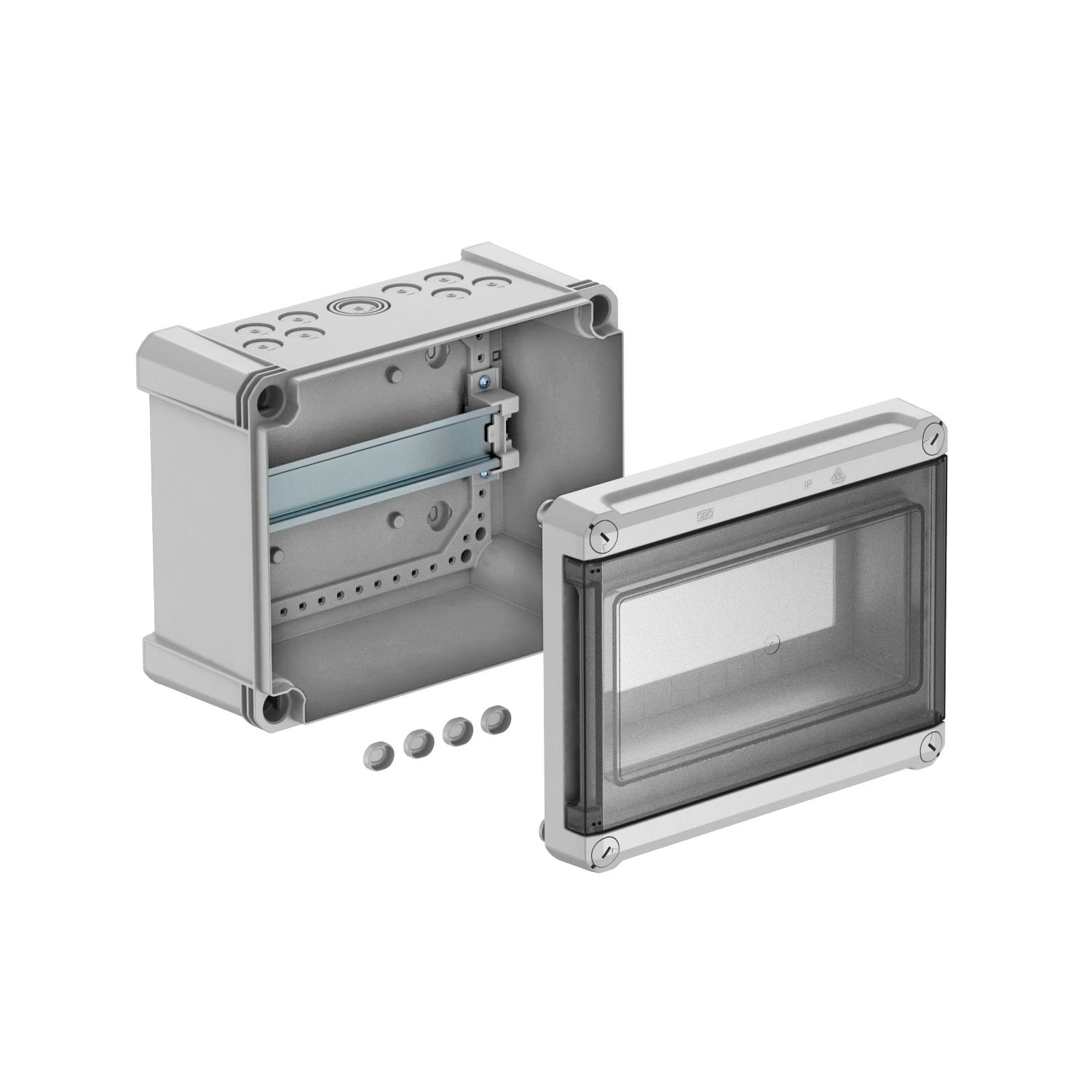

Product descriptionDistribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.
- Protection-insulated for a maximum of 9 division units
- 8 Ø 20 mm break-out openings each at the top and bottom
- 1 Ø 20/25/32 mm combination break-out opening each at the top and bottom
- 4 screw cover caps
Nominal current 63 A
Power loss at 40 K 20.7 W
-
- Technical data
-
Technical data

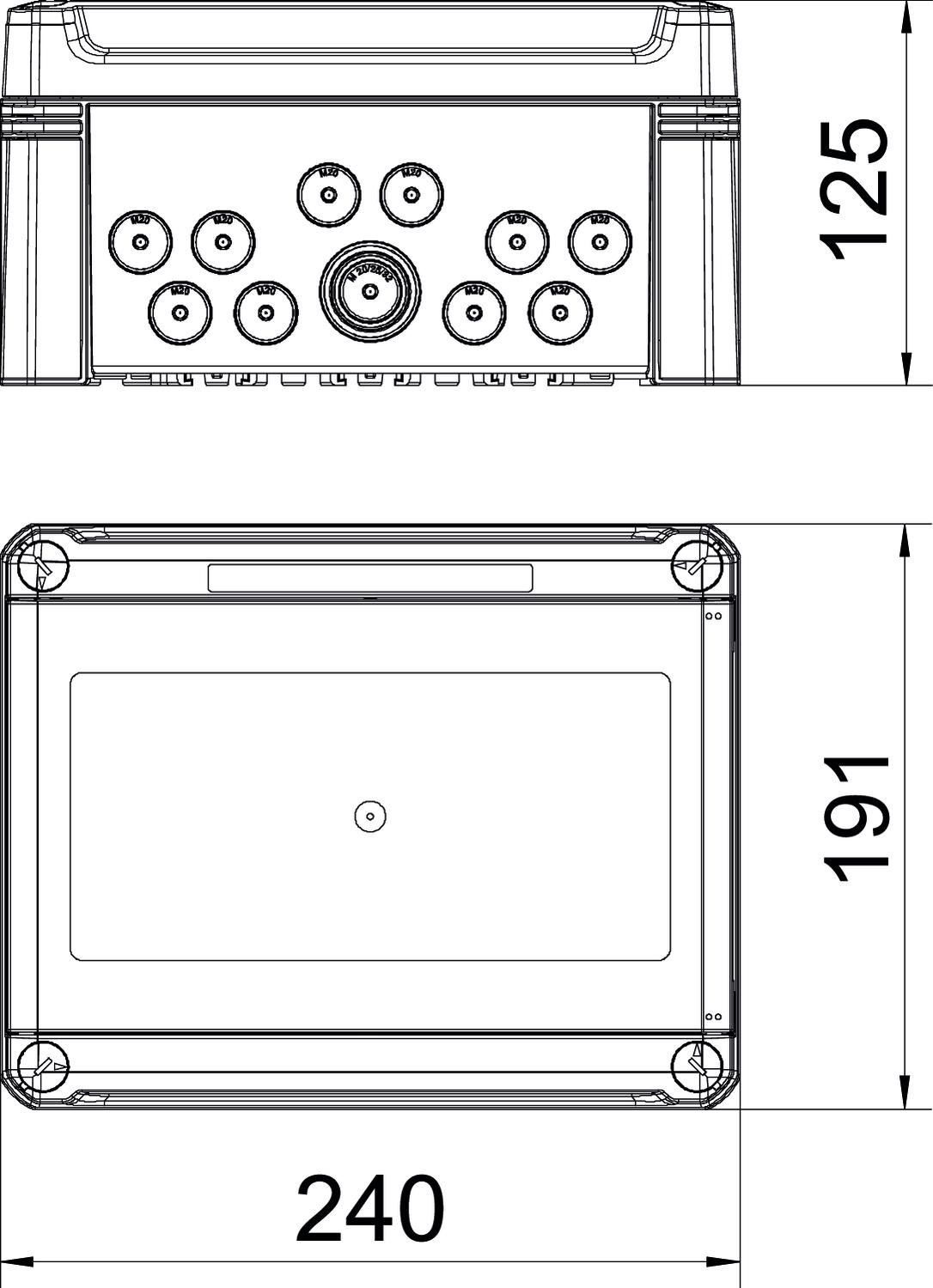

Colour Light grey; RAL 7035 Cover type Cover Dimension 240x191x125 DIN rail yes EMC version no Extension option yes Height 126 mm Length 241 mm Material Polystyrene Mounting type, consumer units Structure Nominal current 63 A Nominal voltage 400 V Number of rows 1 Protection rating IP66 Protection rating IK code IK07. Transparent lid yes Version, small distributor cover With cut-out Width 191 mm Width in divisional units 9 With lock no With mounting plate no - All types
