Earthing pipe clamp VA
Item no. 5057558 | EAN 4012195388692
- Product description
-
Product description• For pipes of Ø 3/8 - 6"
• Connection options: Max. 2 cables 2.5-25 mm²
• Round conductor Rd 8
• Clamp element, bolts and tightening strap made of rustproof stainless steel (VA)
-
- Technical data
-
Technical data

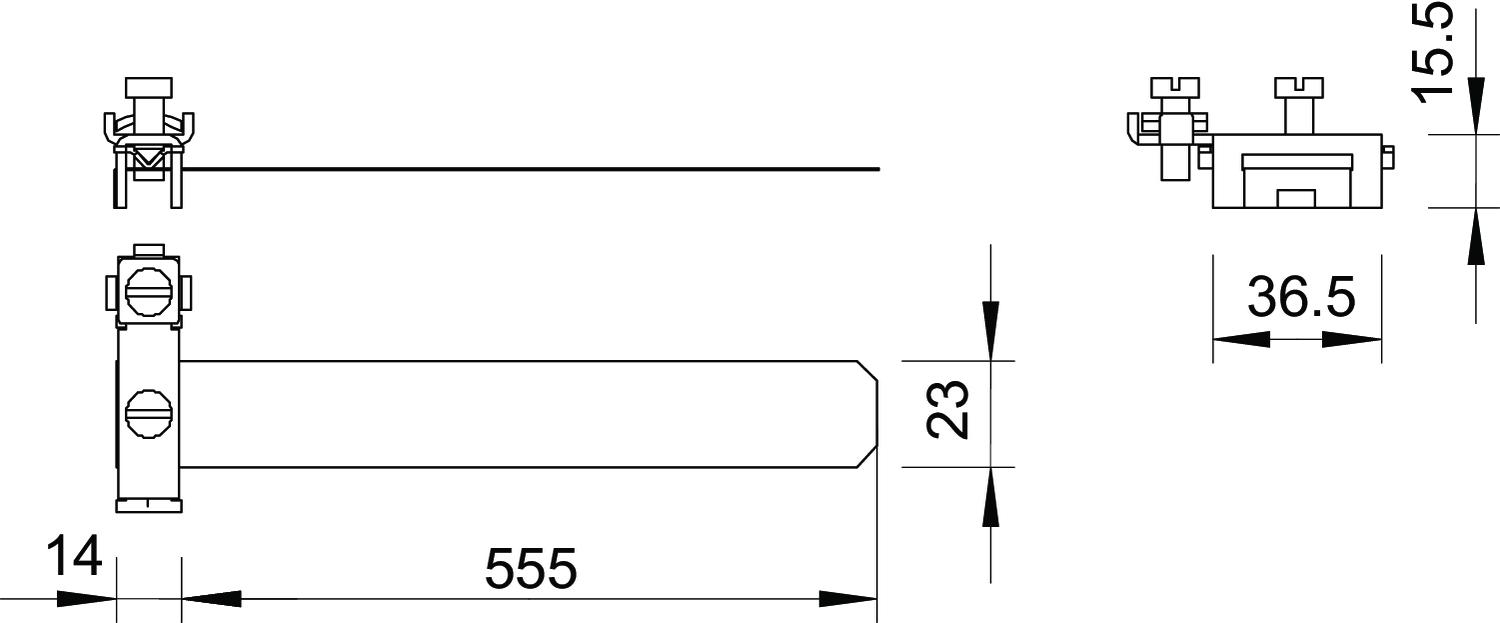

Clamping range D 3/8 - 6 Clamping range D, max. 165 mm Clamping range D, min. 17,2 mm Cross-section of cable to be connected, max. 25 mm² Cross-section of cable to be connected, min. 2,5 mm² Dimension 3/8-6" Dimension L 555 mm For pipe diameter, max. 165 mm For pipe diameter, min. 17,2 mm Lightning current carrying capacity N/50 kA Material Stainless steel Number of conductors 2 - All types
- Downloads
-
Data sheet 927 4 / 5057558 , 0.18MB , pdfEU declaration of conformity 927 4 / 5057558 , 0.13MB , pdfREACH Declaration of conformity 927 4 / 5057558 , 0.12MB , pdfRoHS Declaration of conformity 927 4 / 5057558 , 0.12MB , pdf
