Electrogalvanised steel bend, with thread
Item no. 2046780 | EAN 4012196388189
- Product description
-
Product description
90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
-
- Technical data
-
Technical data
Angle of the bend 90 ° Brushed surface no Dimension M25x1,5 Flexible no For nominal pipe diameter 25 mm Halogen-free no Material Steel Polished surface no Surface Electrogalvanized Thread M25x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes Dimensions

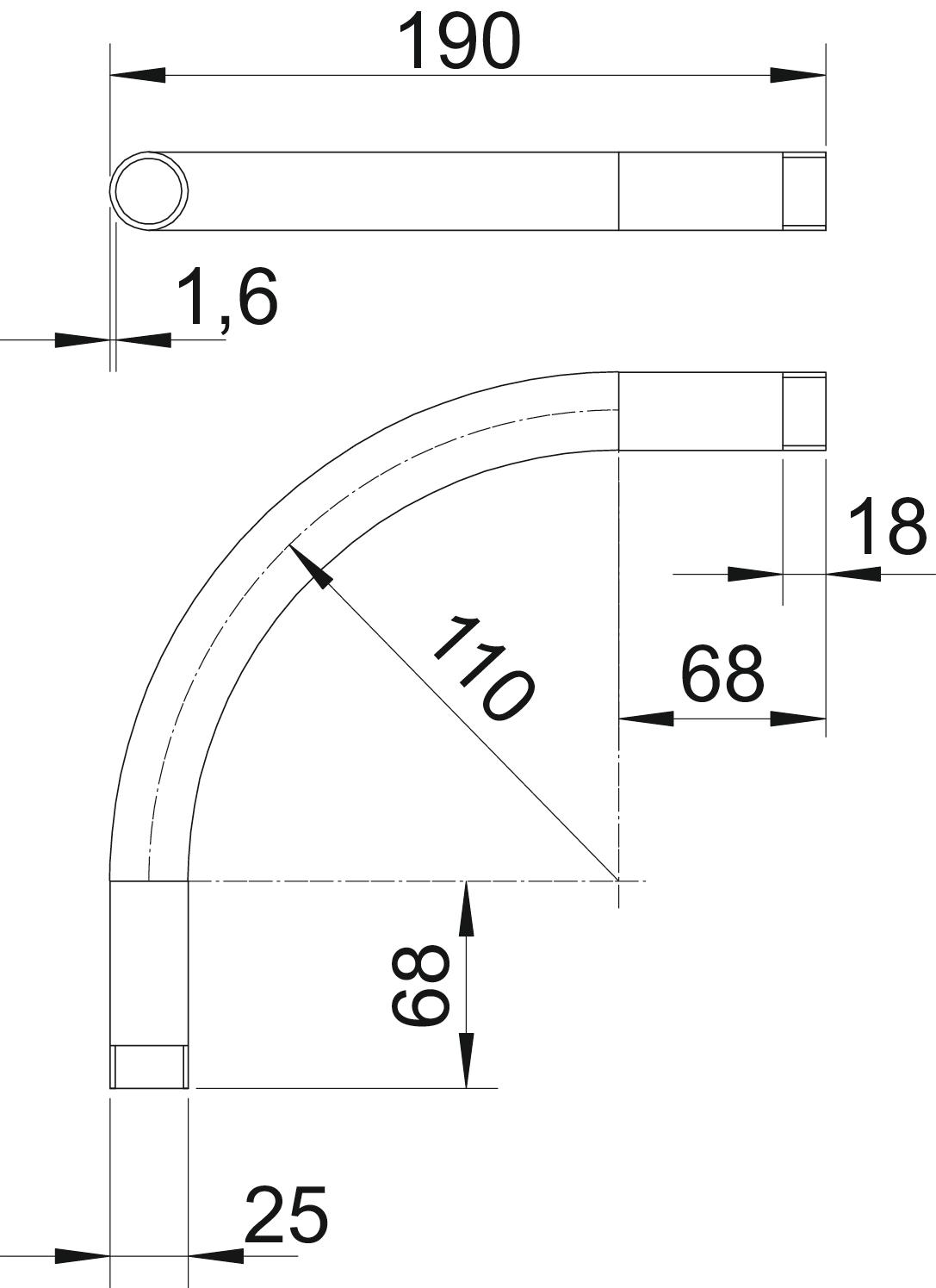

Dimension A 68 mm Dimension B 190 mm Dimension D 25 mm Dimension l 18 mm Dimension m (mm) M25 Dimension R 110 mm Dimension t 1,6 mm - All types
- Downloads
-
Data sheet SBNM25 G / 2046780 , 0.25MB , pdfDeclaration of conformity SBNM25 G / 2046780 , 0.06MB , pdfREACH Declaration of conformity SBNM25 G / 2046780 , 0.12MB , pdfRoHS Declaration of conformity SBNM25 G / 2046780 , 0.12MB , pdf
