End piece, for cable trunking type LKM 60100 | | | Graphite black; RAL 9011
morepic-1 morepic-2

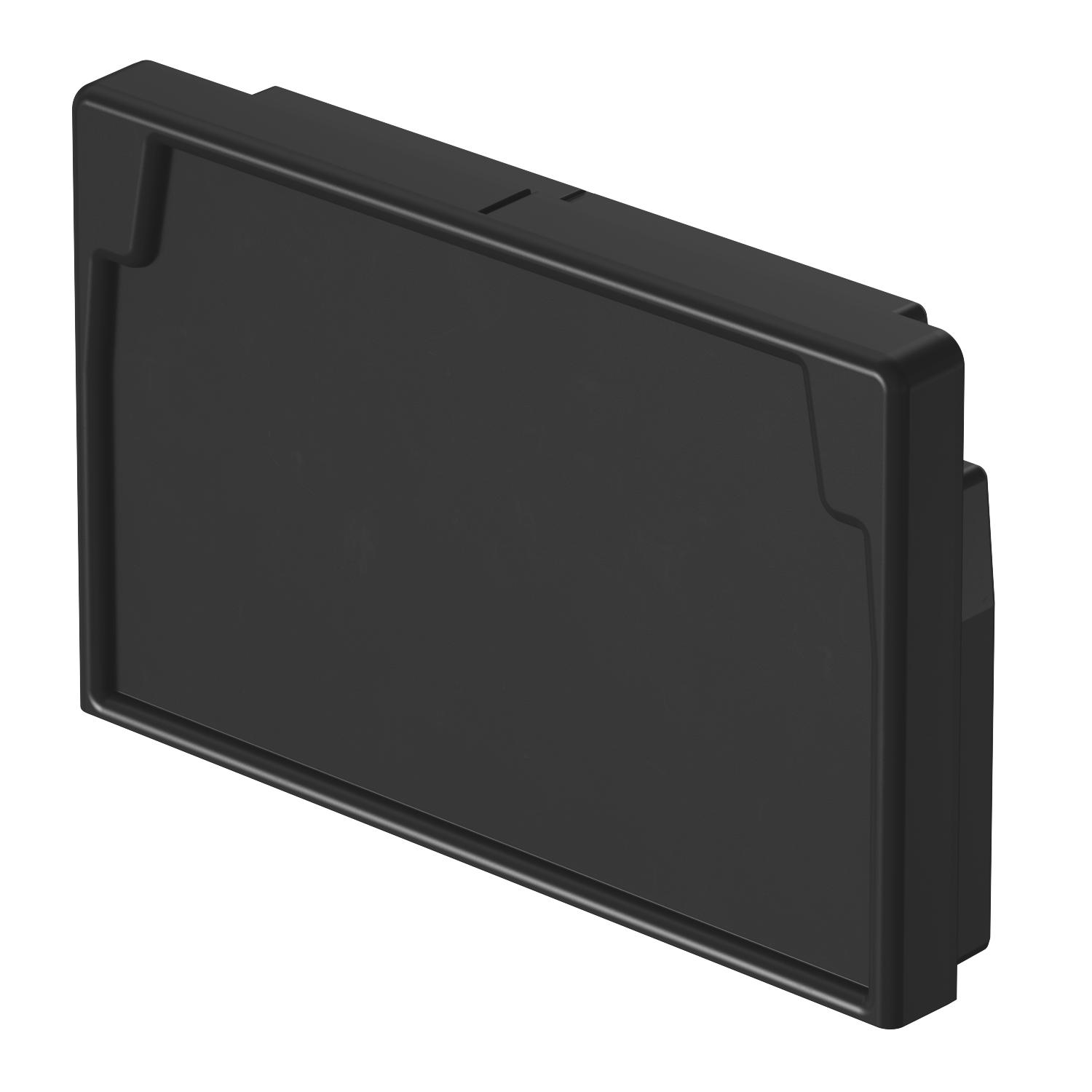

End piece, for cable trunking type LKM 60100

Item no. 6249784 | EAN 4012197377441

6249784 / LKM EK60100
Graphite black; RAL 9011
Product description
Product description
End piece for closing the LKM ducts.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Graphite black; RAL 9011
Connector version Integrated connector

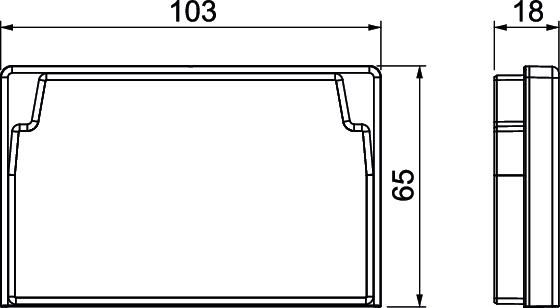

Dimension 60x100mm
Fastening type Lockable
Halogen-free yes
Height 65 mm
Length 18 mm
Maintain electrical functions yes
Material Thermoplastic elastomer
Protective film no
Version for Left/right
Width 103 mm
All types

All types

Types Colour Item no. Quantity SSU
LKM EK60100 Graphite black; RAL 9011 6249784
5 piece
Downloads

Download

Download
Download

EU declaration of conformity LKM EK60100 / 6249784 , 0.10MB , pdf
Download
UK Declaration of Conformity LKM EK60100 / 6249784 , 0.14MB , pdf
Download

Mounting instructions LKM-Kanal , 0.77MB , pdf
Download

No invitation to tender text is available for this product.
