Equipotential busbar for indoors

Item no. 5015683 | EAN 4012196868421

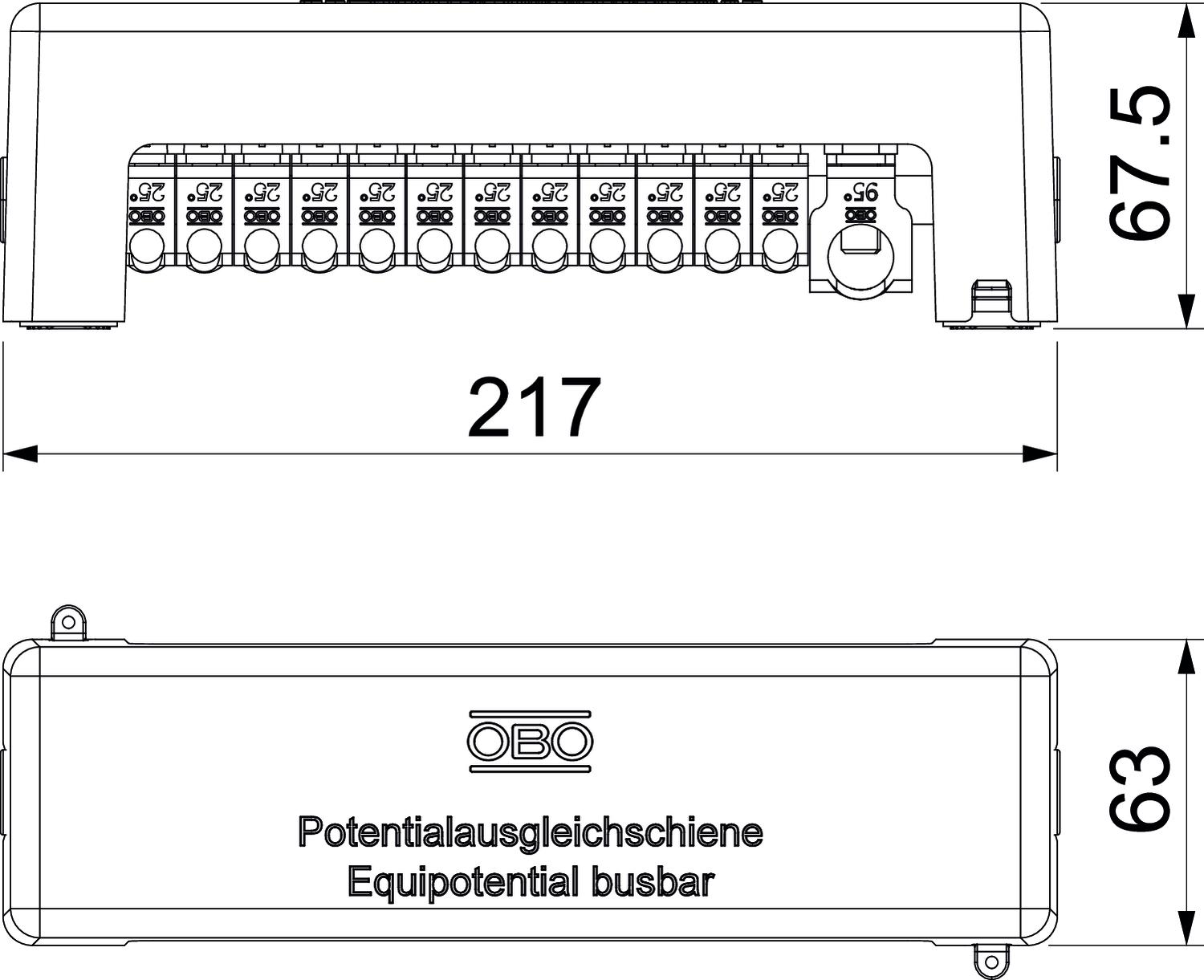

217 mm
63 mm
67.5 mm
Grey
Product description

Product description

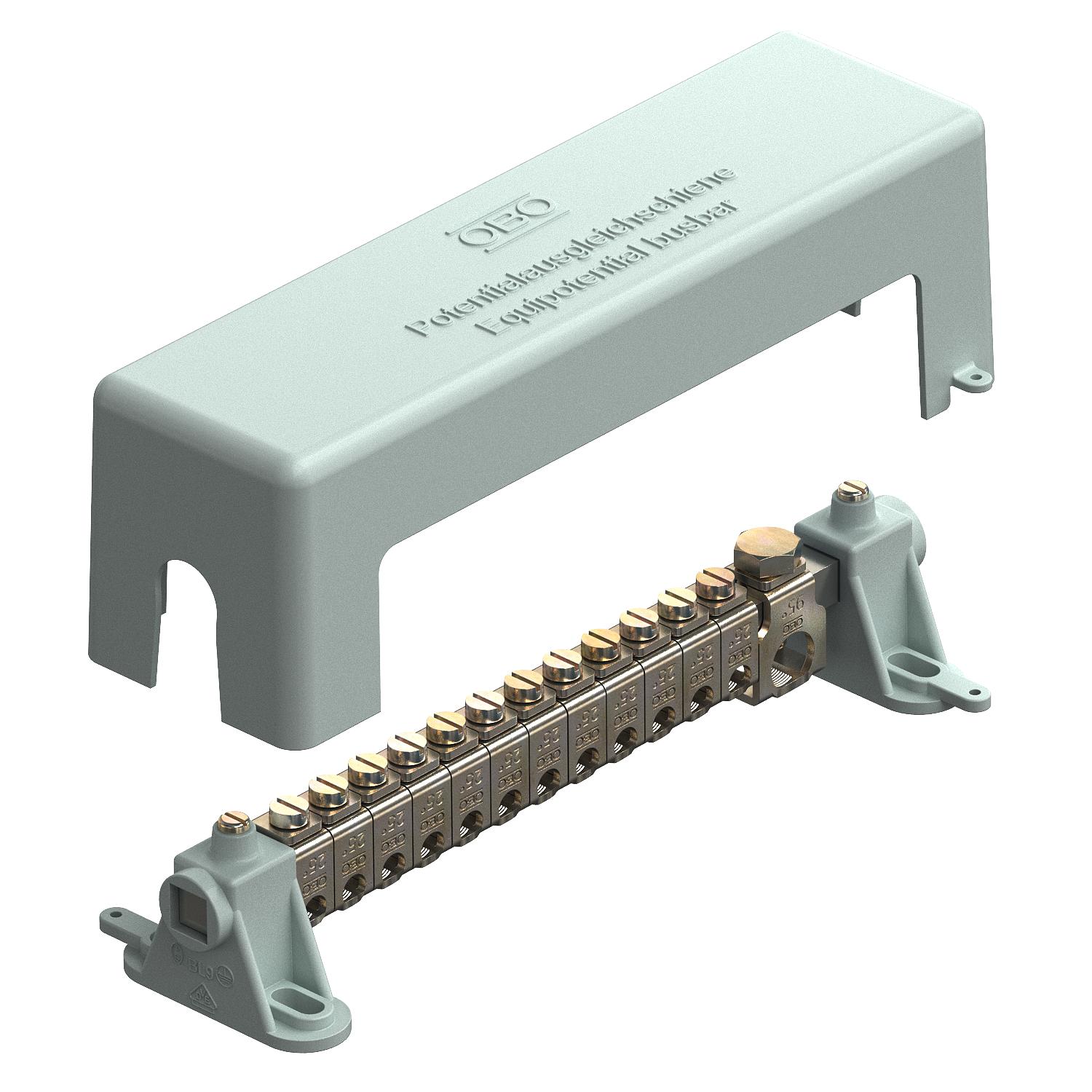

Equipotential busbar for equipotential bonding to DIN VDE 0100-410/-540 as well as lightning protection equipotential bonding to DIN VDE 0185-305

• With 10 x 10 mm clamping rail made of nickel-plated brass
• With contact-secure series terminals made of electrogalvanised steel
• Cover and rail stands made of grey polystyrene
• Sealable/labellable cover
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening (e.g. required in industry)

Connection options:
• 12 single or multi-wire cables 2.5–25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 1 single or multi-wire cable 25–95 mm² or fine-wire cable to 70 mm² (max. Ø 13.5 mm)


Technical data

Technical data

Colour Grey
Dimension 217mm
Height 67,5 mm
Insulator yes
Length 217 mm
Material Brass
Material of the contact rail Brass
Material of the terminal Steel
Quantity of cable connections up to 95 mm², rigid 2
Surface of the contact rail Nickel-plated
Surface of the terminal Electrogalvanised
Type Modular structure
Version for With cover hood
Width 63 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
1801 VDE 217 mm 63 mm 67.5 mm Grey 5015650
1 piece
1801 12x25 1x95 217 mm 63 mm 67.5 mm Grey 5015683
1 piece
